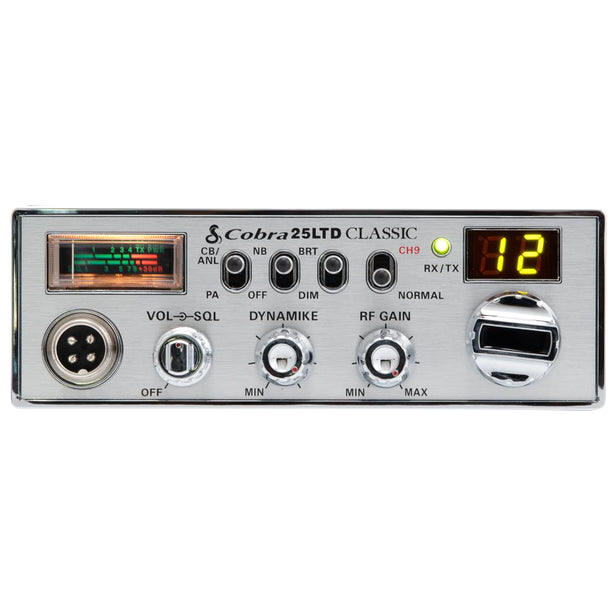

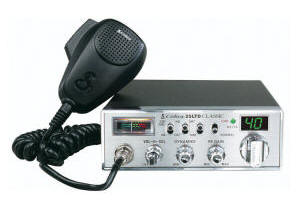

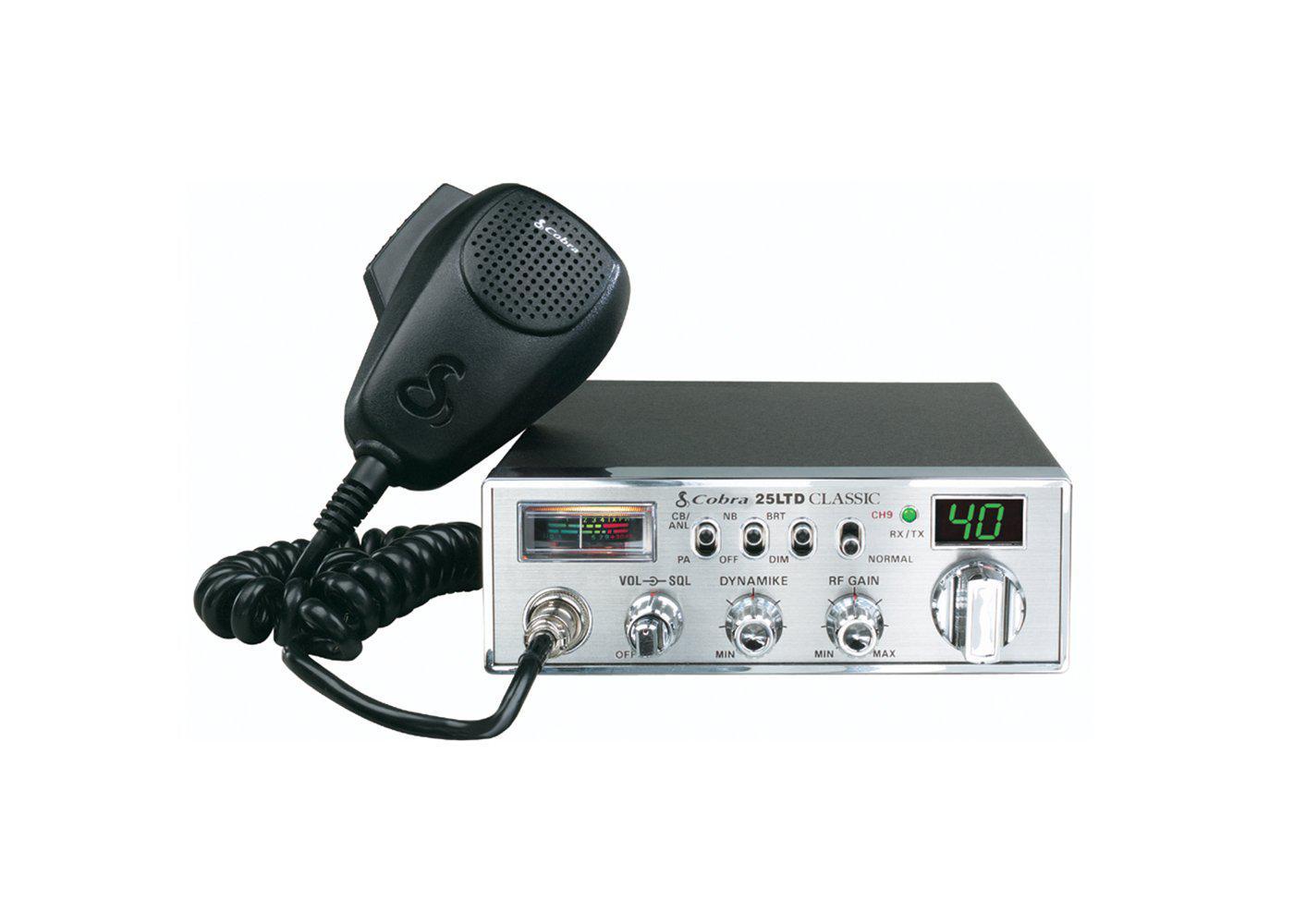

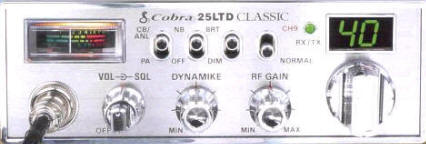

Cobra 25 LTD CLASSIC

Mobile  CB Radio


25LTD

Download Manual

Features
  • -Illuminated S/RF Meter
  • -Switch-able Noise Blanker
  • -Automatic Noise Limiter
  • -RF Gain Control
  • -Dynamike Control
  • -Instant Channel 9
  • -CB/PA Switch



Cobra 25LTD







The item most overlooked when ordering a custom radio is the microphone.

 Your new radio will NOT sound great with a stock mic on it even if you have it tuned.

 If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.

SPECIFICATIONSS
Unit Dimensions:Unit Dimensions: 6-1/4 x 2-1/8 x 8-5/8
Microphone Type:Microphone Type: 4 Pin Screw-On Dynamikee
Frequency Control:Frequency Control: Phase Lock Loop Synthesizerr
RF Output Power: 4 Watts (Maximum FCC allowed))
CB Channels: 40 Channels (26.965 to 27.405 MHz)
Individual Carton Dimension: (in)) 3.0 x 10-7/8 x 12-3/83.0 x 10-7/8 x 12-3/8
Individual Unit Weight (lbs)) 7.07.0


CB Microphone Wiring (Galaxy)

 Cobra 25LTD CB Radio....

$119.50

Optional Accessories

 Tune-up.  Perform a tune-up to radio to increase power, audio and performance.  AM carrier 6 watts and 28-32 watts peak power. $29

 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
Switch Option
Dead Key
 Low Dead Key (carrier). (perform a tune-up to radio to increase peak power with loud audio a lower carrier (dead key). This is perfect to match many amplifier types. $49
or
$59
 VpowerVARIABLE POWER Install a power regulator / super modulator circuit and a rear mounted control installed,  Smooth Variable AM carrier from 1/2w to 5 watts. Includes a full Tune and Alignment to the radio. $79

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
 Install an Echo Board (Side)
(wired internal to the radio with dual controls on the left side to control speed and echo effects)
$65
or
$75

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch  to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
SOLD OUT
  Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back) $77
Switch Location
 Install Talkback
(wired inside the radio so that when you talk you can hear yourself. If you chose an Echo or a Recorder mod, I highly suggest this as well)
$10
$15
$20
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
 Exchange the top and bottom covers to Diamond Plate Covers. $22

Tuned up values on these watt meters
Dosy Bird RMS * Bird 43P
AM 5.5w 5.5w 5.5w
Peak 11ww 7w 23w
* The most informative meter and the one we use. 1/31/24









Cobra 2 Year Warrantee
