Cobra 29 LXHD

Orders with radio work are delayed 3 - 14 days

Cobra 29 LTD CLASSIC

Click for larger image

29 LX HD

Limited Edition
Harley Davidson

...Discontinued...

Download Manual
29 LX Harley Davidson CB Radio Features & Specs

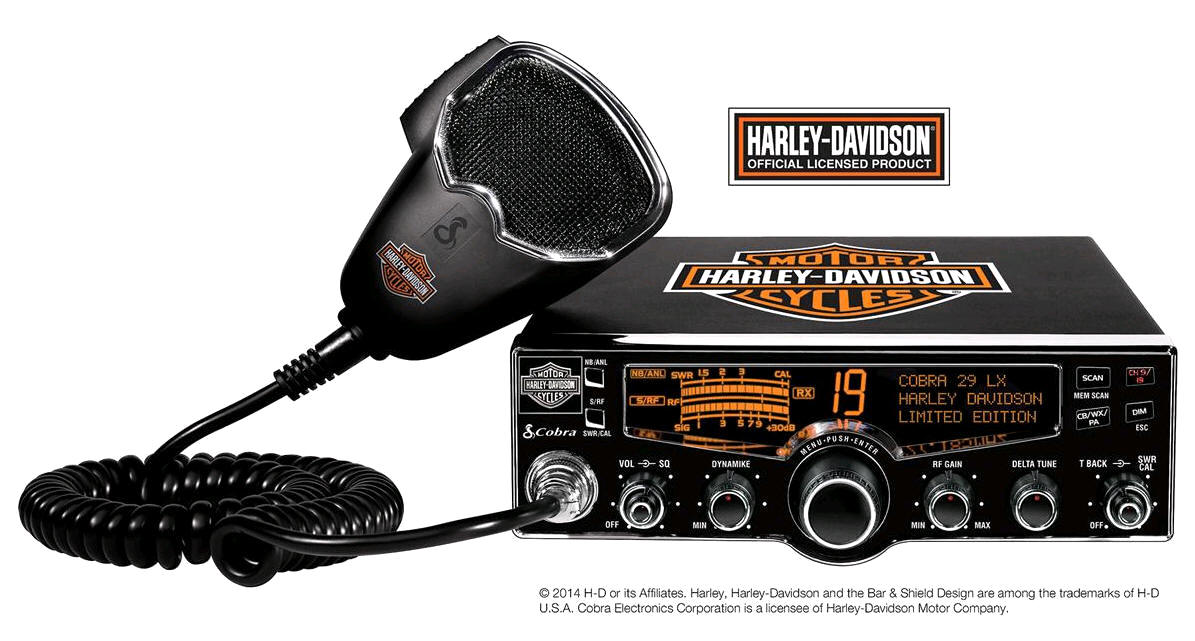

The 29 LX HD LE is a Limited Edition officially licensed Harley Davidson designed CB radio and microphone using the 29 LX platform.

The 29 LX HD LE features a modern aesthetic design with Harley Davidson branded cabinet and badge, front control panel and microphone with a selectable LCD Dot Matrix display in red, green, blue or amber to compliment the interior of any cab. The display also has customizable night and day settings to enhance readability in both very bright and dark conditions. Based on the 29 LTD Classic platform with added features: A 4-color display where the user can program any one of four colors, radio check diagnostic to allow the operator to monitor the vehicles antenna system, the voltage system and the radio's RF output power.

Features

Technician Friendly
Same size as Cobra 29LTD series
Same accessories
Weather Scan Feature is Dramatically Different
Automatically advances to the next clear
Weather channel when driving cross-country
Software Controlled Menus
4-color Display
All Channel Scan
Memory Channels
Cobra 29 Reliability

Radio Check Diagnostic
INDUSTRY 1ST!

Allows monitoring of RF output power
SWR (Standing Wave Ratio) of the antenna
Battery Voltage
Low Battery Alarm

Selectable 4-Color LCD Display	Choose from four easy-to-read display colors: red, blue, green and amber.
10 NOAA Weather Channels	Instant access to 10 National Weather Channels, 24 hours a day, in all 50 states.
Emergency Weather Alert	Alerts you if threatening weather is nearby with an alert tone even if CB is turned off.
Talk Back	This control is used to adjust the desired amount of modulation talk back that is present at the speaker during transmit
Weather Alert Scan	Automatically scans for the nearest weather alert signal.
Radio Check Diagnostic	Allows testing of important radio functions such as RF power, antenna condition and battery voltage.
Memory Channel Scan	Allows scanning of up to 10 channels stored in memory.
Memory Channels	Stores up to 10 frequently used channels.
Selectable Key Tone	Allows key tone to be turned on or off.
Day / Night Dimmer Control	Adjusts brightness of the front panel for day and night driving.
SWR Calibration	Allows calibration of antenna system for maximum performance.
Channel Scan	Allows scanning of all 40 channels.
Auto Weather Scan	Automatically scans for the weather band for the strongest signal.
Frequency Display	Displays operating channel frequency of CB and weather band.
9 Foot Microphone Cord	For easy reach within any area of the vehicle.
4-Pin Front Microphone Connector	Allows convenient installation to be in dash or under dash.
Adjustable Dynamike Boost	Dynamically boosts microphone for increased voice clarity.
Tactile Controls	Allows you to actually feel where the dial is in it's rotation without taking your eyes off the road.
PA Capability	Use CB radio as a Public Address System with PA speaker. Receive signals can also be monitored through PA.
RF Gain	Adjusts receive gain in weak and strong signal areas.
Switchable Noise Blanker	For increased noise reduction.
Dimmer Control	Adjusts brightness of the front panel, channel display and signal strength meter.
4 Watts AM RF Power Output	The maximum allowed by law.
Antenna Warning Indicator	Illuminates when antenna needs checking.
Instant Channel 9 and 19	Instant access to emergency channel 9 and information channel 19.
Delta Tune	Used to clarify incoming signals

... Cobra 29 LXHD ...
...Discontinued...

~~$149^.~~⁵⁰

Optional Accessories

Tune-up. Perform a tune-up to radio to increase power, audio and performance. AM carrier 6 watts and 25-30 watts peak power. $29

NEW MOSFET Final. (perform a tune-up to radio to increase power, audio and performance and replace the bipolar transistor final with a higher power MOSFET) AM carrier 6 watts and 38-45 watts peak power. $59

VARIABLE POWER Install a power regulator / super modulator circuit and a new variable front panel control. Installed in the delta tune location. perform a tune-up to the radio. Increased peak power and audio performance.Smooth Variable AM carrier from 1/2w to 6 watts variable. $79

SOLD OUT

RFX-95 Final. Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 20 watts with 90+ watts peak power.. On/Off switch in the back. $189

Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 10,000uF Capacitor is also added for additional DC filtering. This is only helpful when you have the RFX-95HD2 and is NOT required for a stock radio
$59

FAN KIT Installed Install TWO- 40 x 40 x 20mm Black Fans with a switch for on/off combined with the amp on/off switch.I use also a relay isolated low noise power input system. $79

Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity) $26

Install a Lescomm 120 Channel Frequency Kit
(This mod adds a 3 position switch to the left side of the radio to access 120 channels) Tune-up Included. $129

Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug) $46

Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug) $29

Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed) $46

Install an Echo Board (Side)
(wired internal to the radio with dual controls on the left side to control speed and echo effects) $65
or
$75

Install an Echo Board. (FRONT)
(wired internal to the radio with dual control pot that is Cobra part so fits in the front. Matching factory knobs also used. $85
or
$95

Sound Byte link

SOLD OUT
Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want) $65

Sound Byte link

SOLD OUT
Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.) $65

SOLD OUT
Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back) $77

Add a Small External Speaker
(plugs into back of the radio for improved sound) $12

Add a Large External Speaker
(plugs into back of the radio for improved sound) $25

Colors

SOLD OUT
Install Star Brite Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $154

Tuned up values on these watt meters

Dosy Bird RMS *Bird
Peak

AM 6w 6w 6w

Peak 12w 6.5w 25w

Peak w/
MOSFET 22w 8w 38w

* Most informative and the one we use.

SPECIFICATIONS
Unit Dimensions:	7-1/4 x 2-1/4 x 8-5/8
Microphone Type:	4 Pin Screw-On Dynamike
Frequency Control:	Phase Lock Loop Synthesizer
RF Output Power:	4 Watts (Maximum FCC allowed)
CB Channels:	40 Channels (26.965 to 27.405 MHz)
Individual Carton Dimension: (in)	11-7/8 x 13-1/8 x 2-3/4


For Operational or Technical Assistance with a Cobra Product call Cobra at 1-773-889-3087. You'll find answers to many of your questions in our Their FAQ's section. Cobra's automated help desk is available 24 hours a day 7 days a week. Live operators are available Monday through Friday 8 AM to 8 PM CST

		TECH INFO
	TECH SERVICES
