Bells CB Radio
    Bells CB Phone Number             Home Button



  Orders with radio work are delayed 7 - 14 days



    Click image for larger view

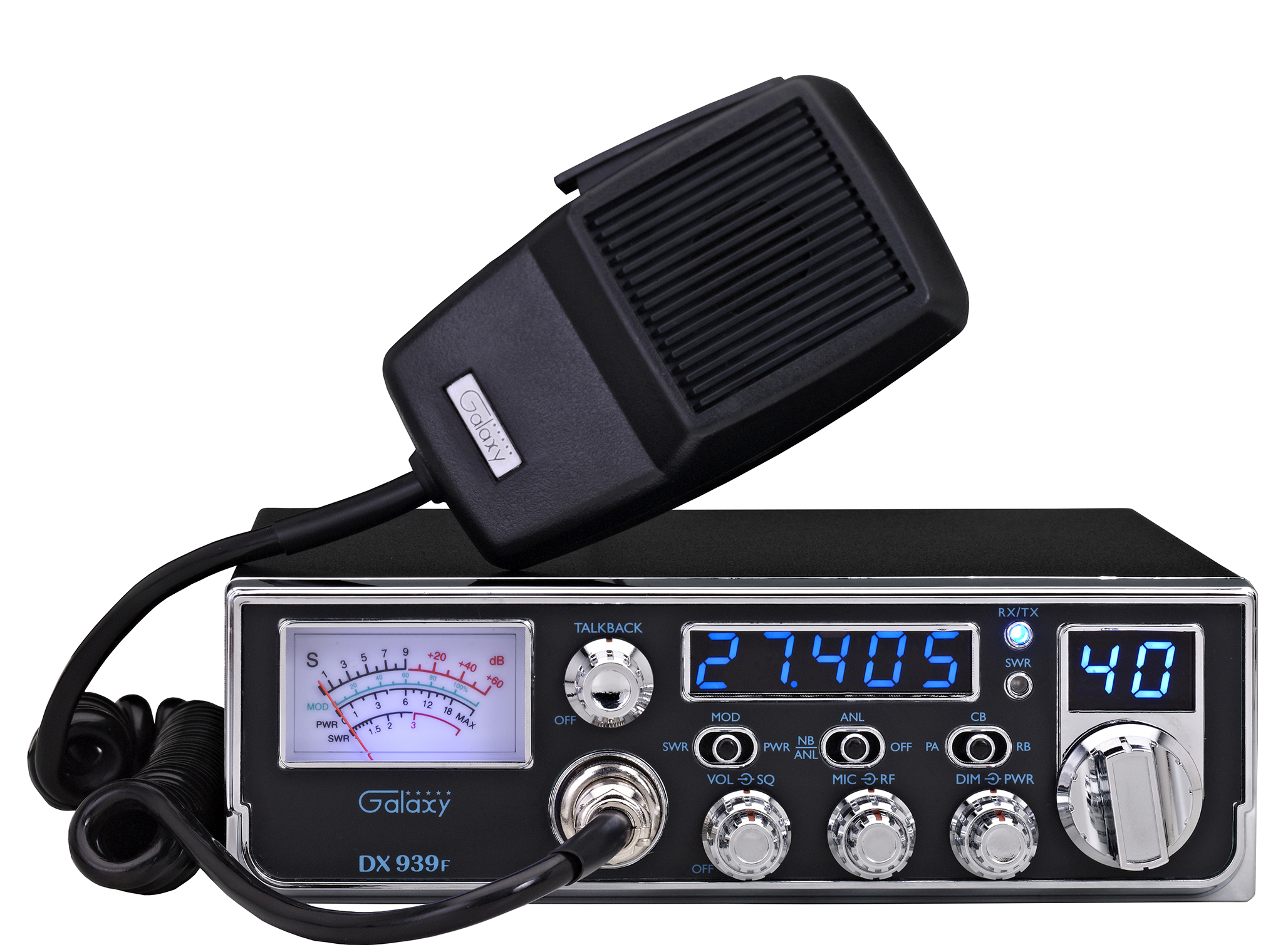

DX 939F

... Discontinued ...

Download Manual


Galaxy CB radios are designed with Features that a serious CB operator can appreciate and a new user can easily master. The radio functions are laid out in a driver friendly format essential for ease of use while keeping your eyes focused on the road ahead. Each knob or button controls its own task, minimizing the need to look at a display or cycle through multiple menus. Big radio Features in a smaller package set the DX-939F apart from the crowd. A big calibrated meter, front mic jack and AM operation (no SSB) along with our backlit faceplate give this radio maximum bang for the buck.

The functions are the same as our full sized DX939 but it is in the mid sized chassis (DX929/DX979). Here are the three differences:

1) No three position tone switch.

2) Roger Beep is still there, but no LED to indicate that it is on.

3) No switch to turn off the frequency display. However, the Dimmer pot turns it down very low.

Features

  • AM and PA Modes.

  • Large, easy-to-read meter with: Calibrated power output scale. Modulation percentage scale. Incoming signal strength scale indicates up to 60 dB over S9. SWR ratio scale.

  • StarLite faceplate (all lettering is backlit in blue).

  • Automatic SWR circuit (no complicated calibration procedure).

  • High SWR alert circuit with warning LED.

  • Talkback circuit with on/off switch and volume control.

  • Variable power output control.

  • Variable dimmer control.

  • Noise Blanker and Automatic Noise Limiter circuits.

  • Blue frequency and channel LEDs with blue meter lamp.

  • Mid-sized chassis with front mic jack.

  • Blue/Red LED indicator for RX/TX.

  • Receive (RF) gain control.

  • Mic gain control.

  • Rear jacks for external speaker and public address use.

  •  Two year Limited Warranty.

  • Dimensions:7-1/4"W x 9"D x 2-3/16"H (Can slide into a 7-1/2" x 2-1/4" opening) (Depth does not include knobs or antenna connector).

  • Radio weight with microphone: 4.1 pounds. Shipping weight: 6 pounds.

  • What's in the box beside the radio: Handheld microphone, radio mounting bracket and microphone mounting hardware, power cord, owner's manual.



  • CB Microphone Wiring (Galaxy)











Galaxy radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Galaxy might though and I cannot control it.



Warranty Information



... Deluxe AM CB Radio ...

... Discontinued ...

$179.50



Optional Accessories
Dead Key
 Tune-up. (perform a tune-up to radio to increase power, audio and performance) $29
SOLD OUT
RFX-95 Final. Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 20 watts with 90+ watts peak power. $189
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. This is only helpful when you have the RFX-95HD2 and is NOT required for a stock radio
10G power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade
$59
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Tune-up and frequency conversion.  (Install extra channels with switches in back of radio and tune up radios output) $79

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
 Install an Echo Board (Side)
(wired internal to the radio with dual controls on the left side to control speed and echo effects)
$65
or
$75
 Install an Echo Board (Front)
(with dual controls on the front in the Talkback location. Talkback control is cut free of the dimmer board and moved to the side.)
$80
or
$90

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
SOLD OUT
  Install a Record/Playback Module 120 seconds (wired inside the radio with  a switch on the side to record 120 seconds and to play it back) $77
 Add a Small External Speaker (plugs into back of the radio for improved sound) $12
 Add a Large External Speaker (plugs into back of the radio for improved sound) $25
Install Star-Bryte Knobs with dimmer control. Includes a Knob set , parts and labor. $172
 Exchange the top and bottom covers to Diamond Plate Covers. $22



Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 1 ~  6w 1 ~ 6w 1 ~  6w
PEAK AM 4 ~ 16w 2 ~ 7w 14 ~ 30w
* The most informative meter and the one we use.


SO-239As many of you may know;  Ranger, Galaxy and General radios have all had some poor tolerance coax connectors this last year (SO-239 on the back of the radio) . You have to wiggle the coax just right to get a good grab on the threads of the connector. They are too far “out of tolerance” and we can no longer accept it.       So we have started changing the coax connectors ourselves to a much higher quality SO-239 that will fit your coax nice and tight.  This has affected our selling price ($10) but we think you will agree that it is worth it.
