  Mobile CB Radio

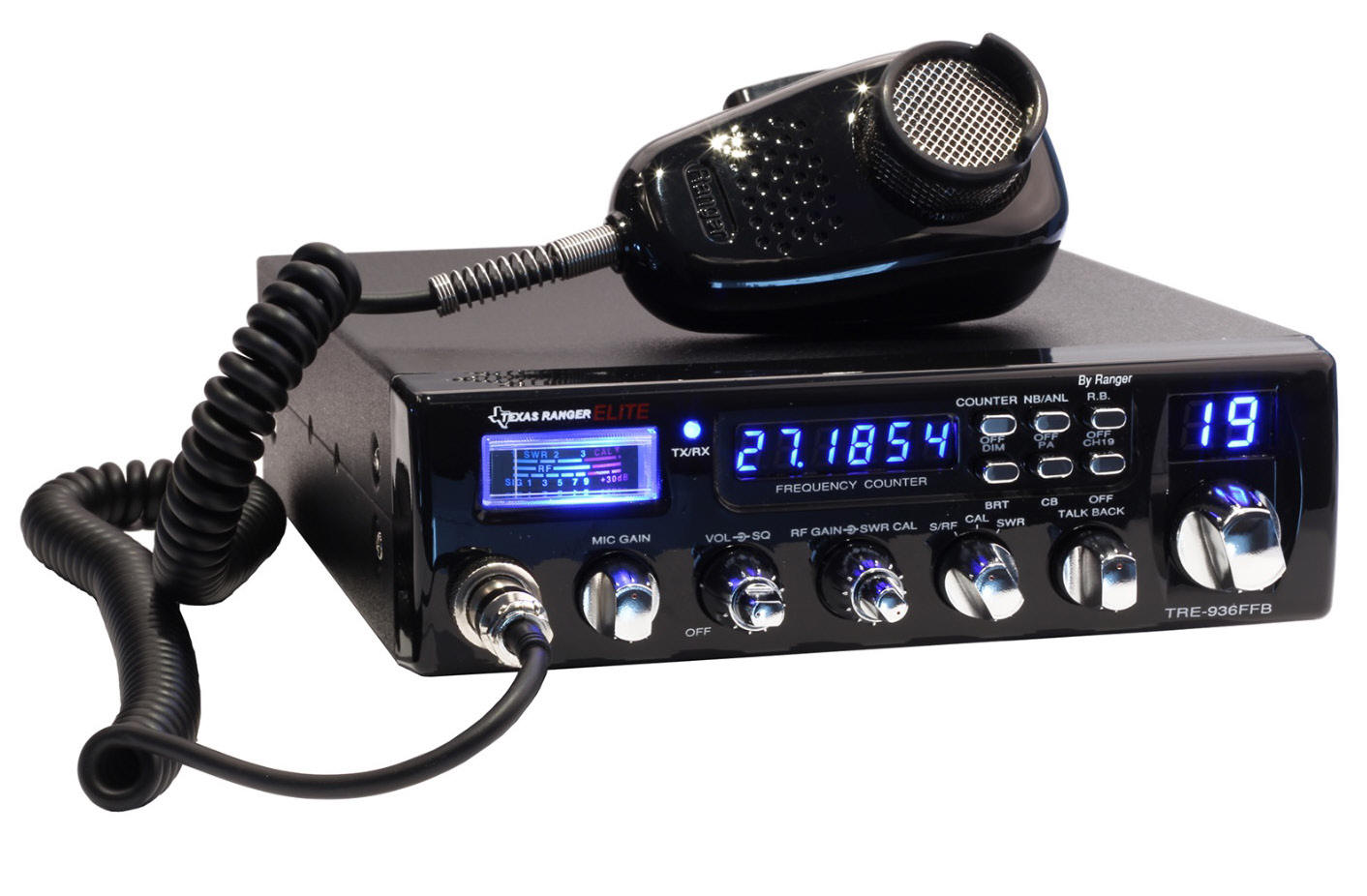

Texas Ranger TRE-936FFB
Click image for larger view

TR-936FFB



Download Manual

For over 40 years, Ranger Communications has built the world’s best amateur and CB radio equipment. The Texas Ranger Elite TRE-936FFB is the latest example of Ranger’s legendary performance. Tired of poor quality and cheaply made CB radios? Then, step up and buy a true professional quality rig that will perform and last – the TRE-936FFB.

• 40 Channel CB Transceiver
• AM and PA (Public Address) Modes
• Cool Blue LED Channel and Frequency Display
• S/RF/SWR Front Panel Meter
• Built-In SWR Bridge and Meter
• Noise Blanker & Automatic Noise Limiter
• Variable Talk Back Monitor Control
• 4pin Front Panel Mic Jack
• Stunning Black Chrome Face and Microphone
• Real Channel Selector Control
• SRA-198NCA Noise Cancelling Mic Included
• 2 Position Dimmer Switch
• 7-7/8” x 2-3/8” x 9-1/4” (L x H x D)
• Roger Beep (End of Transmission Beep)
• Channel 19 Button

Texas Ranger Elite TRE-936FFB

SOLD OUT
...Mobile CB radio... $199.99

Optional Accessories

 Tune-up. Perform a tune-up to radio to increase power, audio and performance. ( AM carrier 6 watts and 35+ watts peak power.) $29

 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29

 Astatic D104-M6b Amplified microphone.
(wired for this radio with a four pin plug and a battery installed)
$41

Sound Byte link

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link

 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65

  Install a Record/Playback Module 18 seconds (wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back) $77
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications. To be posted on YouTube, Subscribe to my YouTube Channel for notice. $19




TRE-936FFB Technical Specifications
General Specifications
Channels....................................................................... 40
Frequency Range ........................... 26.965 ~ 27.405 MHz
Emission Mode ......................................................... AM
Frequency Control .. Phase Lock Loop (PLL) Synthesizer
Frequency Stability ............................................ 0.001%
Temperature Range ............................... -30°C to +50°C
Antenna Impedance ................................................ 50 Ω
Antenna Connector ........................... SO-239 (Standard)
Operating Voltage ........................................... 13.8V DC
Dimensions .... 7-7/8 (W) x 9-1/4 (D) x 2-3/8 (H) Inches
Weight ................................................................ 3.6 lbs.
Transmitter Specifications
Carrier Power .......................................... AM : 4 Watts
PEP Power (Two Tone)................ AM : 12 Watts (max)
Spurious & Harmonic Emission ............. AM : > -60 dB
Frequency Response .............................. 300 ~ 2500 Hz
Microphone Type ............................................ Dynamic
Receiver (ANL & NB Switch Off)
Sensitivity for 10 dB S/N ..........................M : < 1.0 μV
Squelch Sensitivity at Threshold ........... AM : < 0.5 μV
Image Rejection Ratio ............................ AM : > 65 dB
Reference Audio Output Power ........................... 3.0 W
Audio Output Load .............................................. 8 Ω Resistive
Audio Response ................................. 300 ~ 2500 Hz

The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT
sound great  with a stock mic on it  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.

If you place an order from outside the continental USA, we will calculate your actual shipping and send you a PayPal payment request.  We do NOT export Antennas or Base station radios.

Orders requiring technical work are shipped
 in about 3 to 14 days.

Heads up- The Price of many China-made
 items went up due to tariffs.
