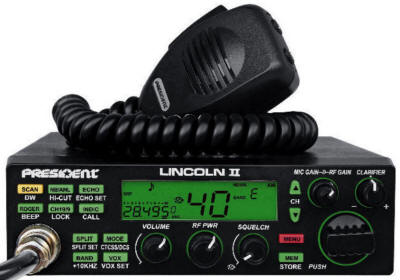

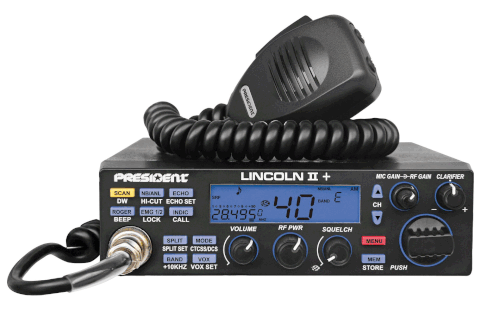

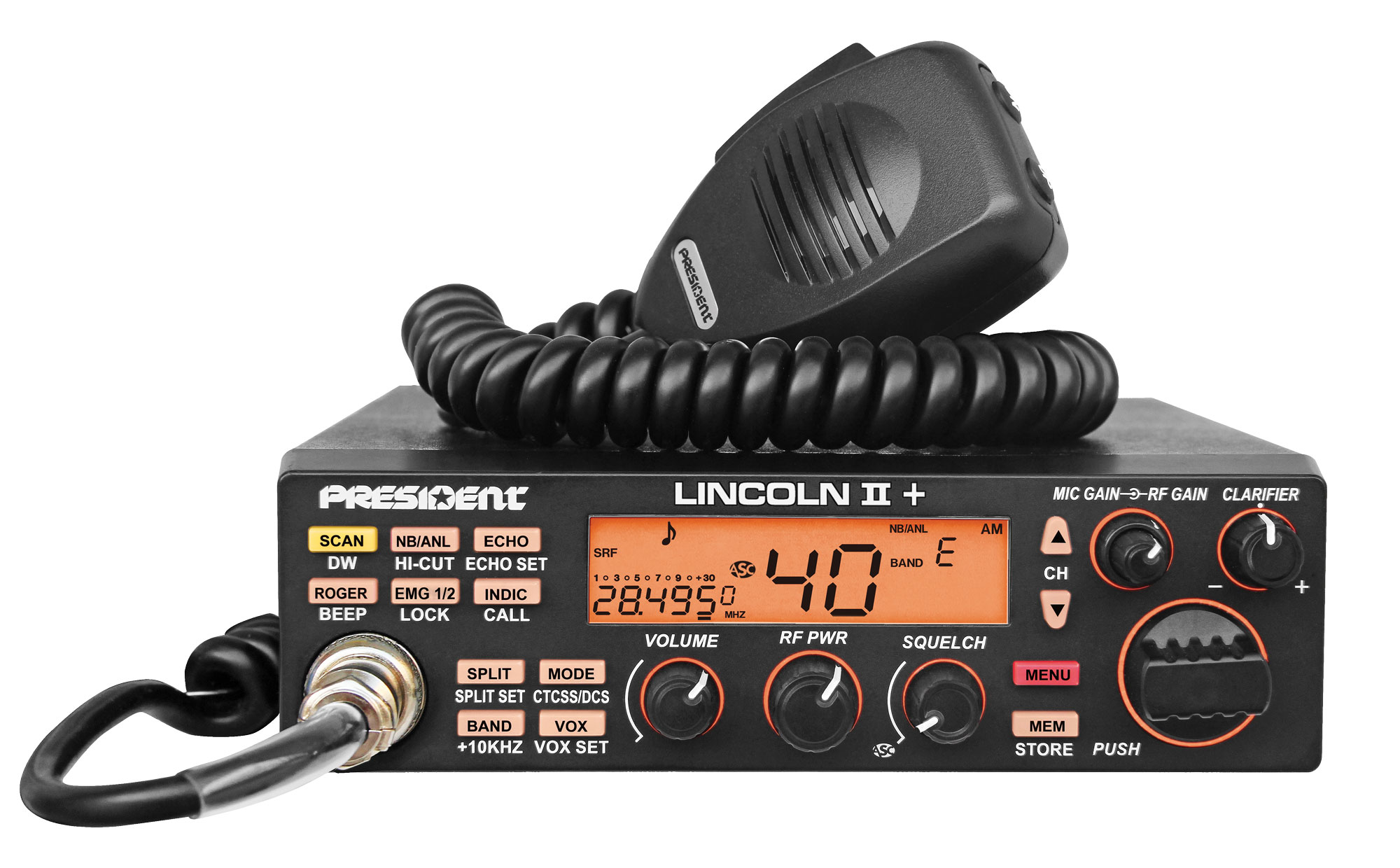

Lincoln II 10 Meter Radio

Frequency Chart (Modified)
(Thanks to Bill in AR)

Optional Accessories

Tune-up and frequency conversion. Tune-up, Alignment and expanded frequency coverage (See Tune-up chart above)

$49

DIGIMIKE Noise Cancelling Microphone Pre-wired with high quality 6 pin Plug.

$47

BT-MIKE Noise Cancelling Microphone Pre-wired with high quality 6 pin Plug.

$57

Turner RK-56 Noise Canceling microphone.
Wired for this radio with a 6 pin plug.

$61

Astatic 636L Noise Canceling microphone.
Wired for this radio with a 6 pin plug.

$44

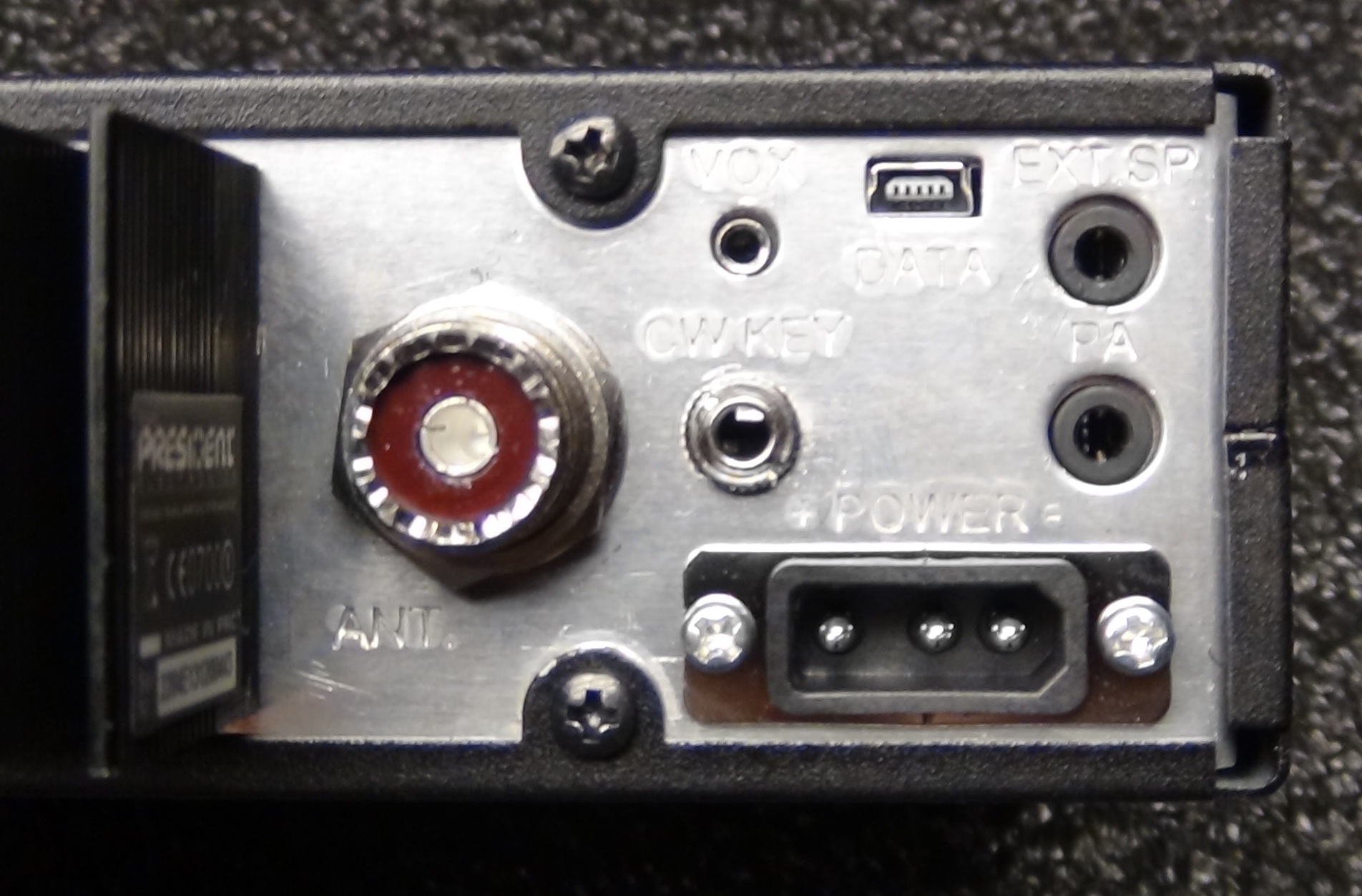

Install an EXTERNAL amplifier keying port. or PTT OUT. We use an RCA jack in the back for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector.
      1) Output RCA completely isolated from the radio. +/- of RCA connects to a relay that isolates it from the radios circuits.
      2) Optional BYPASS switch in case your external device does not have one. (turns port off (stays open))
      3) Works all the time in high or low power modes..
      4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.

$49
/
$59
/
$69

Astatic RD104-E Amplified microphone.
Wired with a 6 pin plug and a battery installed. Choose if you want Channel Up and Down buttons installed in the microphone.

$64
or
$106

4-pin microphone to 6-pin radio adapter.

$10

Add a Small External Speaker Plugs into back of the radio for improved sound.

$12

Add a Large External Speaker
(plugs into back of the radio for improved sound)

$25

Add a power Supply to run this as a Base Station in the house.

$89

Tuned up values on these watt meters

	Dosy	Bird RMS	*Bird 43P
AM	1~12w	1~12w	1~12w
FM	.7~30w	.7~ 30w	.7~30w
SSB	7~32w	6~23w	12~50w
PEAK AM	3~33w	2~14w	11~55w

* The most informative meter and the one we use. 5/15/23

- General
Bands	10
Modulation modes	AM/FM/LSB/USB/CW
Frequency ranges	from 24.880 MHz to 29.700 MHz
CTCSS	38 tones
DCS	104 codes
Antenna impedance	50 ohms
Power supply	13.2 V
Dimensions H x W x D in (mm)	2" (52) x 6-3/4(170) x 10"(25o)
Weight	1.4 kg
Accessories supplied	power cord with fuse 1 microphone and its hanger 1 mounting bracket with fixing screws

Transmission
Frequency allowance	+/- 300 Hz
Carrier power	12 W AM (40W Peak)/ 28 W FM / 31 W USB-LSB / 12 W CW
Transmission interference	inferior to - 50 dBc
Audio response	300 Hz to 3 kHz
Emitted power in the adj. channel	inferior to 20 �W
Microphone sensitivity	3 mV
Drain	6 A (with modulation)
Modulated signal distortion	1.8 %

Reception
Maxi. sensitivity at 10 dB sinad	0,5 μV -110 dBm (AM) 0,35 μV -116 dBm (FM) 0.28�V-118 dBm (USB/LSB/CW)
Frequency response	300 Hz to 3 kHz
Adjacent channel selectivity	60 dB
Maximum audio power	3 W
Squelch sensitivity	mini 0.2 μV - 120 dBm maxi 1 mV - 47 dBm
Frequency image rejection rate	60 dB
Intermediate frequency rej. rate	70 dB
Drain	400 mA nominal, 600 mA max

Mic wiring diagram:
