10 Meter
Mobile
Radio
|
![Washington colors](images/washington-colors_small.gif)
7 colors to choose. |
Washington
AM/FM/SSB/CW
10 Meter Radio
|
Download Manual
|
|
|
Optional
Accessories |
|
Tune-up and frequency
conversion.
Tune-up, Alignment and
expanded frequency coverage. |
$29 |
|
DIGIMIKE
Noise Cancelling Microphone Pre-wired with high quality 6 pin Plug. |
$47 |
|
BT-MIKE
Noise Cancelling Microphone Pre-wired with high quality 6 pin Plug. |
$57 |
|
Turner
RK-56 Noise Canceling microphone.
Wired for this radio with a 6 pin plug. |
$61 |
|
Astatic
636L
Noise Canceling microphone.
Wired for this radio with a 6 pin plug. |
$44 |
|
Install
an
EXTERNAL amplifier keying port.
or PTT OUT. We
use an RCA jack in the back for a TX output PORT to your external
device. Every time you key it provides a connection between
the +/- of the RCA connector.
1) Output RCA completely isolated from the radio. +/-
of RCA
connects to a relay that isolates it from the radios
circuits.
2) Optional BYPASS switch in
case your external device does not have one. (turns port off
(stays open))
3) Works
all the time in high or low power modes..
4) Heavy duty relay can handle any keying circuit voltage,
even the SB-220's - 120VDC circuit. |
$49
/
$59
/
$69 |
|
Astatic
RD104-E Amplified microphone.
Wired with a 6 pin plug and
a battery installed. Choose if you want Channel Up and Down
buttons installed in the microphone. |
$64
or
$106 |
|
4-pin
microphone to 6-pin radio adapter. |
$10 |
|
Add a
Small External Speaker
Plugs into back of the radio
for improved sound. |
$12 |
|
Add a
Large External Speaker
(plugs into back of the radio
for improved sound) |
$25 |
|
Add a power Supply
to run this as a Base Station in the house. |
$89 |
Tuned up values on these watt meters
|
Dosy |
Bird RMS |
*Bird 43P |
AM |
1~20w |
1~20w |
1~20w |
FM |
1~30w |
1~30w |
1~30w |
SSB |
2~48w |
2~39w |
5~90w |
PEAK
AM |
3~45w |
2~21w |
10~90w |
* The most informative meter and the one we use. 7/06/24
|
|
:Size (mm) |
170 (W) x 250 (D) x 52 (H) |
:Weight |
1,4 kg |
:Accessories supplied |
1 microphone UP/DOWN and its hanger , 1 mounting bracket with
fixing screws , power cord with fuse |
:Antenna socket |
SO-239 |
:Antenna impedance |
50 ohms |
:Multiconfiguration |
EU / U / D / PL / IN |
:Frequency ranges |
from 24.890 Mhz to 24.990 Mhz and from 28.000 Mhz to 29.700
Mhz (continuous scanning) |
:Power supply |
Nominal 13.8V DC, negative ground (10.5 VDC to 16.0 VDC) |
:Microphone plug |
front (6 pins) |
:Compatible microphone type |
Electret , Dynamic |
:External Vox microphone jack |
|
:External loudspeaker jack |
|
:Public address |
|
:External HP PA socket |
|
:USB socket (front) |
5 V / 2,1 A |
:Display |
LCD multifunction |
:Dimmer |
|
:Frequencies display |
|
:Band name |
|
:S-meter |
Digital |
:Modulation modes |
AM / FM / USB / LSB |
:Volume adjustment and ON/OFF |
|
:Squelch |
Manual squelch |
:ASC |
|
:Channel selector |
Rotary |
:Mode switch |
|
:F / Menu function key |
|
:Key Beep |
, Switchable |
:Roger beep |
, Switchable , 6 tones |
:Key locking |
|
:Tone |
|
:Memory |
4 |
:Channel preselection |
2 , channel 9 & 19 , emergency channel (EMG) programmable |
:Span |
|
:Dual watch |
|
:Scan |
channels , memories |
:Scan Skip |
|
:RF Power |
|
:RF Gain |
|
:Mike-Gain |
|
:Clarifier |
|
:Talkback |
|
:Vox |
|
:Automatic SWR meter |
|
:SWR (Power Reading /SWR) |
|
:Echo |
|
:CALL function |
|
:TOT |
|
:Filter ANL |
|
:Filter NB |
|
:Filter HI-CUT |
|
:NRC |
|
:Noise Gate |
|
:CTCSS |
38 tones |
:DCS |
104 codes |
:Notes |

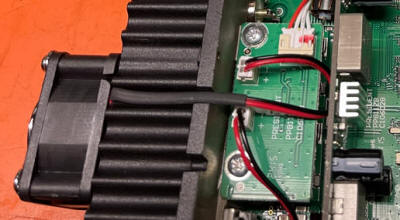

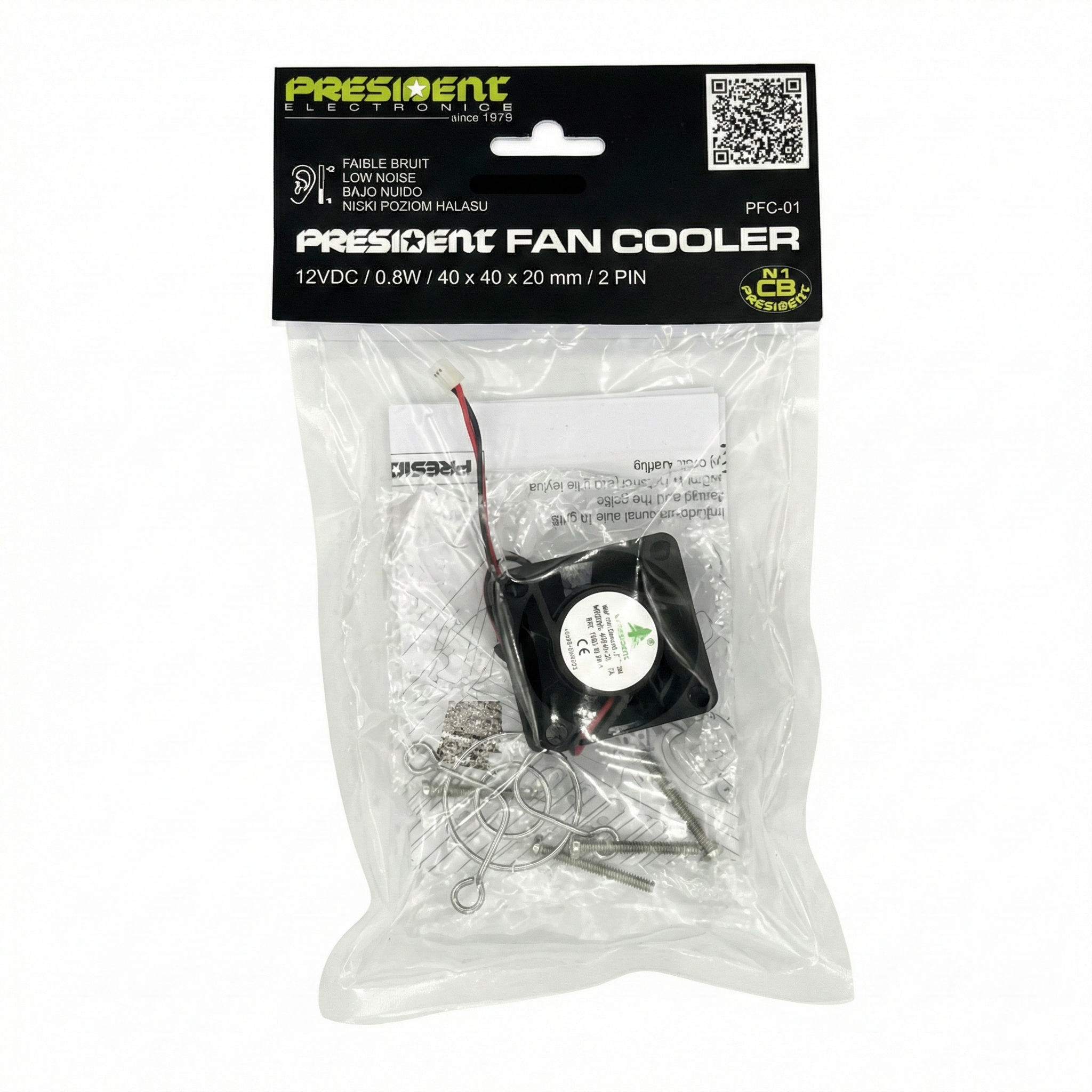

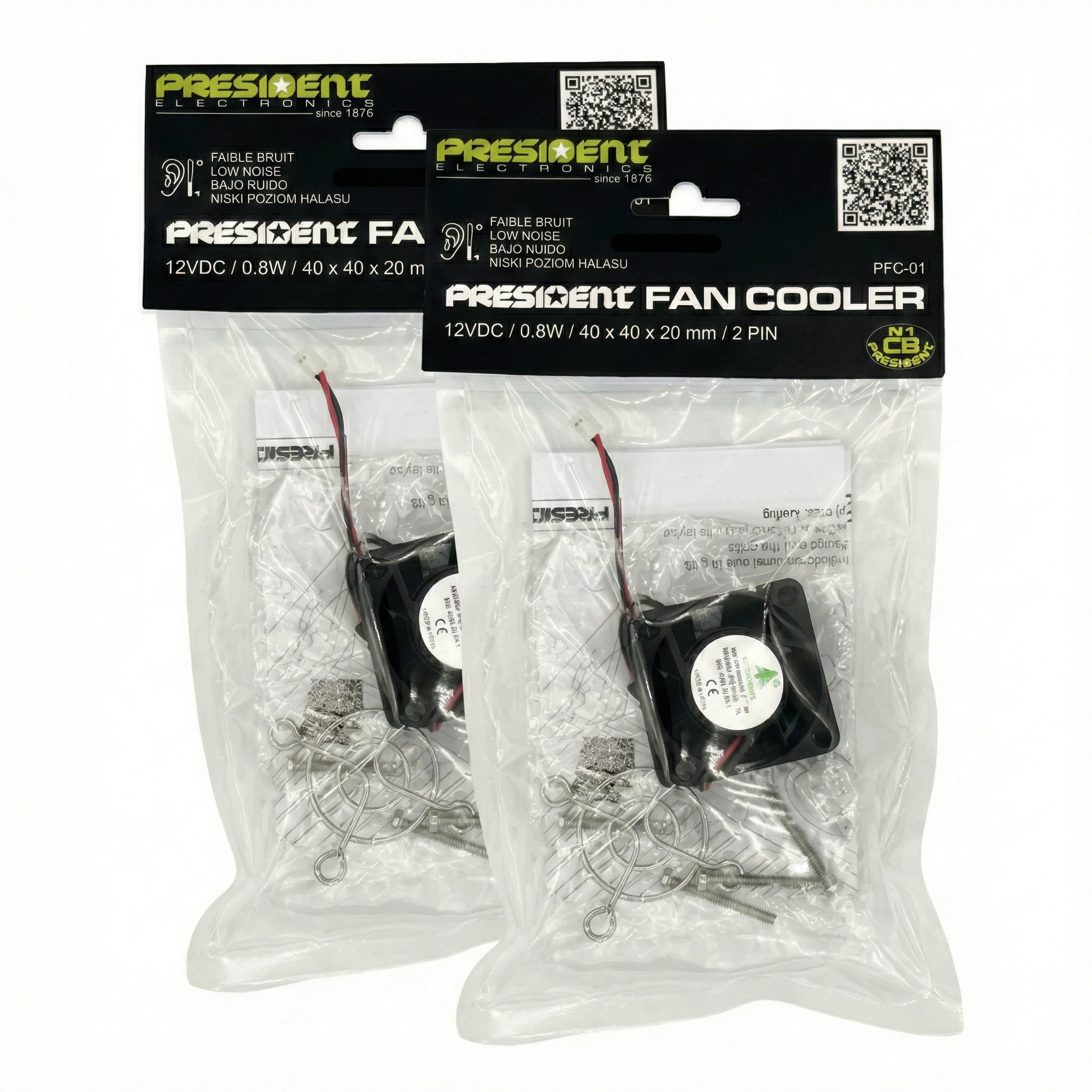

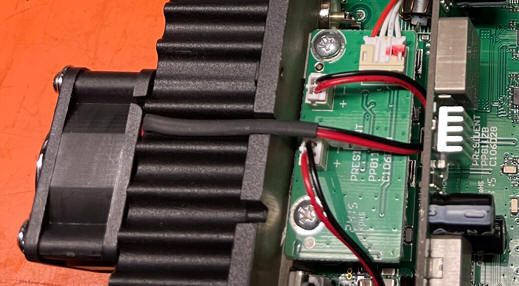

FANS (Options - Not included with the radio) |
:Frequency allowance |
± 200 Hz |
:Carrier power |
70 W PEP (AM/USB/LSB) / 50 W (FM) |
:Power limitation |
4/10W |
:APM |
|
:Transmission interference |
< 4 nW (-54 dBm) |
:Audio response |
300 Hz to 3 kHz |
:Emitted power in the adj. channel |
< 20 μW |
:Microphone sensitivity |
3 mV |
:Drain |
6 A (with modulation) |
:Modulated signal distortion |
2% |
Max. sensitivity at 20 dB sinad |
0.7 µV - 110 dBm (AM) / 0.35 µV - 116 dBm (FM) /
0.28 µV - 118 dBm (USB/LSB/CW) |
:Frequency response |
300 Hz to 3 kHz |
:Adjacent channel selectivity |
60 dB |
:Maximum audio power |
3 W |
:Squelch sensitivity |
min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
:Frequency image rejection rate |
60 dB |
:Intermediate frequency rej. rate |
70 dB |
:Drain |
400 mA nominal / 600 mA max. |
![](images/Lincoln%20II%20Mic%20wire_from_lincoln%20manual_small.jpg)
Mic wiring diagram:
|
|
