   10 Meter Mobile Radio

Click for larger

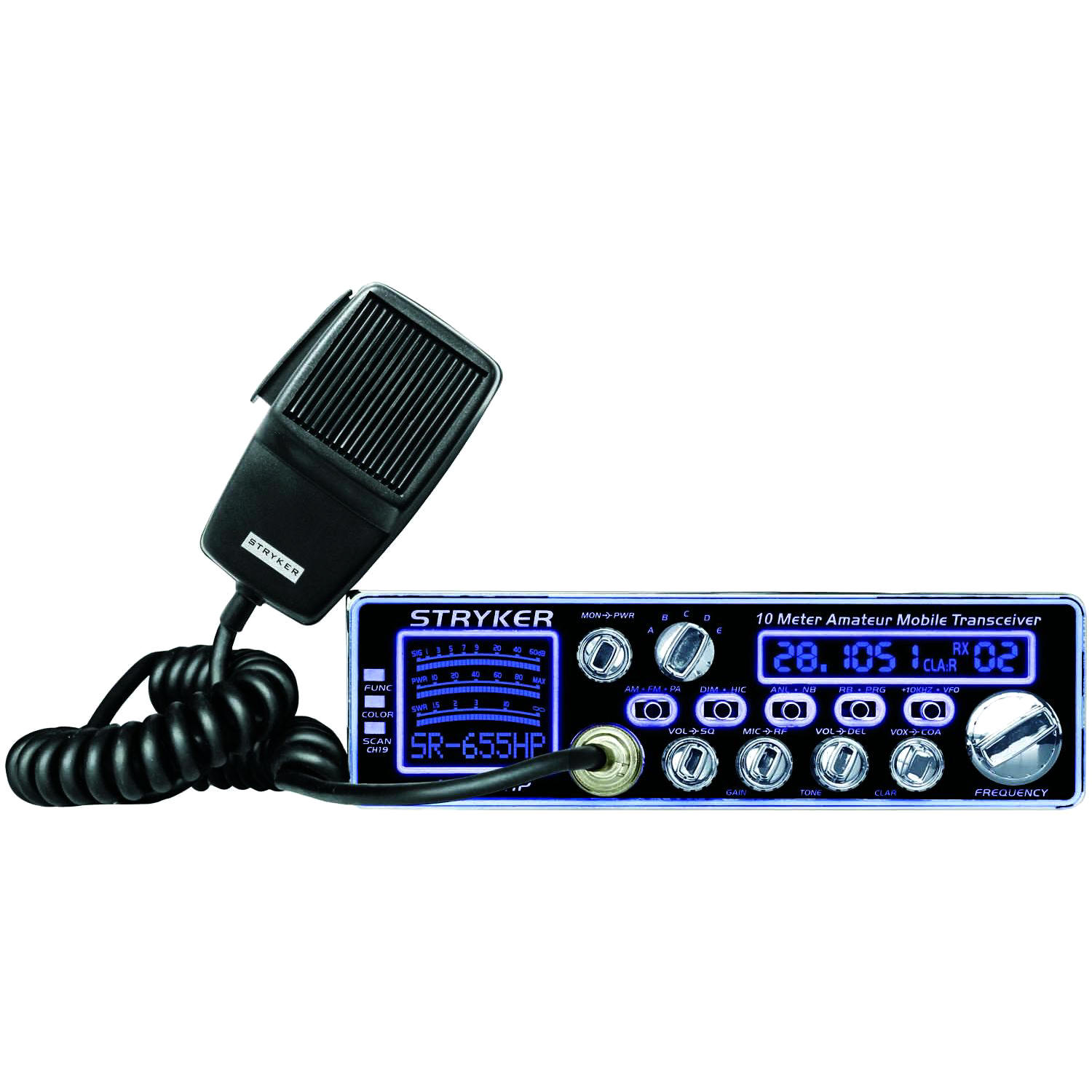

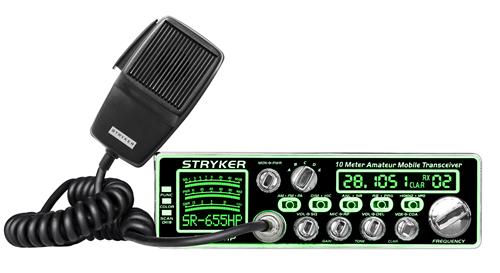

SR-655 HP

AM/FM 10 Meter Radio

See the NEW Version V2

Download Manual
 (.zip) Download Software

High performance outstanding AM audio and PC programming make the SR-655HP the new industry standard!

The new Stryker SR-655HP was designed from the ground up for excellent performance.



While the radio looks very similar to others, they spent a great deal of time improving the receiver and the transmitter performance. The AM bandwidth is adjustable up to 4K. The receiver bandwidth is also adjustable.

They have upgraded the power cord to a heavy-duty version, reducing voltage drop and increasing peak power.

Important Features Include:

High Power - The SR-655HP uses four IRF-520 mosfet transistors that produce 70+ watts peak power. If you want be heard, the SR-655HP has the power required to do some serious talking.

7-Color Frequency Display - The SR-655HP features a 7-Color frequency display (Stryker Exclusive)

Brilliant 7-Color LED Backlit Face Plate- Choose from 7 colors with the push of a button or let the CPU controller scan through all of the colors on it's own. Our exclusive face plate design provides operators with back lighted controls, making adjustments even in the darkest conditions easy.

Dimmer Control- We listened to your feedback over the years and that's why the SR-655HP comes with a 32 position dimmer circuit with the lowest position turning the lights all the way off. If your eyes are sensitive to certain lights in the dark this is a must have feature!

Band / VFO - You can choose between using traditional band mode or VFO mode for continuous operation throughout the frequency range.

PC Programmable - You can further customize your radio using your PC!

Digital Echo with/ Dual Front Mounted Controls - Provides the operator a much wider range of effects and control than typical factory or aftermarket echo boards. Our board is able to reproduce the human voice with virtually no distortion providing maximum clarity and enjoyment.

Six Roger Beeps - Six different roger beeps are included with the SR-955HPC. These are controlled using a switched that is located on the front panel. This is a feature that you will find on virtually no other radio direct from the factory. Most importantly you can create your own customizable roger beeps using our PC software and then load them on to the SR-955PHC's on board memory!.

Variable Power Control – Allows the operator to adjust or vary their carrier from a two watt to 15 watts carrir ( Top Gun Technology keeps a 70+ watt peak regardless of carrier amount).

Variable Talk Back Control – The infamous talk back squeal is virtually eliminated with our independently controlled talk back circuitry. The operator can adjust the volume to the perfect level as operating conditions require. Best of all the user no longer has to turn down the microphone gain to stop the annoying squeal that is often the result of poor design or cost cutting at the production level.

Up-Armored™ Receiver- Our exclusive receiver protection works even under the harshest conditions, such as those experienced at a busy truck stop with many operators running high power radios. In addition our receiver filtering is tighter than most radios on the market. This means adjacent channel rejection is improved.

Factory OEM values on these watt meters
Dosy Bird RMS *Bird 43P
AM 1 ~ 14w 1 ~ 14w 1 ~ 14w
FM 2 ~ 45w 2 ~ 45w 2 ~ 45w
PEAK AM 2 ~ 20w 1 ~ 15w 4 ~ 52w
* The most informative and the one we use.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website or the ARRL website

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting or In Canada, visit or

See the NEW Version V2


Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $39
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
 Install a Record/Playback Module 18 seconds (wired inside the radio with a switch on the side to record 18 seconds and to play it back over the air) $77

Sound Byte link

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)

Sound Byte link

 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
 Add a Large External Speaker
(plugs into back of the radio for improved sound)

10 Gauge DC Cord
 25A Fused 10 gauge wire
 (14 feet) (This is for use with the SX-175 upgrade)


8 Gauge DC Cord Dual 30A Fused 8 gauge wire (14 feet) (This is for use with the SX-350 upgrade)



Tuned up values on these watt meters V1
Dosy Bird RMS *Bird 43P
AM 2 ~ 20w 2 ~ 20w 2 ~ 20w
FM 2 ~ 40w 2 ~ 40w 2 ~ 40w
PEAK AM 10 ~ 46w 4 ~ 22w 35 ~ 82w
*The most informative and the one we use.


Additional Features Include:
  • Scan your favorite channels or frequencies
  • Large Square S/RF & SWR Meter
  • Advanced NB/ANL Circuit Reduces Interference
  • AM/FM Operation and PA Circuitry
  • Automatic calibrating SWR meter for precise measurements
  • Hi-Cut Noise Filter
  • Front microphone connector for easy mounting in tight spaces
  • Receive and Microphone gain controls
  • 3 Year Limited Factory Warranty
  • Optional CTCSS Module


To do a factory reset all of the options to the default settings.

This helps when you get something messaed up
and don't know what.
