   10 Meter Mobile Radio

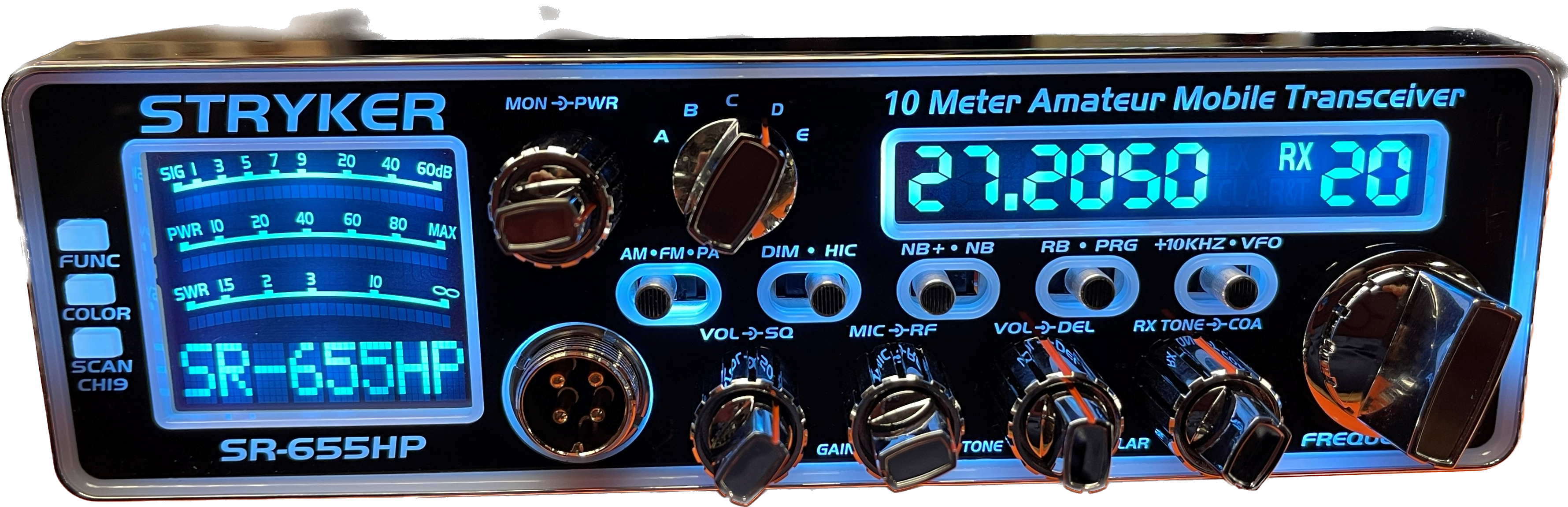

Stryker_Sr-655HP_V2
Click for larger


SR-655HPC
Version 2

AM/FM 10 Meter



Download Manual V2
 (.exe) Download Software


Free Shipping
...SR-655HPC V2...
... On Sale Now ...
Sale
     High performance outstanding AM audio and PC programming make the SR-655HP the new industry standard!
     The new Stryker SR-655HP was designed from the ground up for excellent performance.

655 Meter



Features

While the radio looks very similar to others, they spent a great deal of time improving the receiver and the transmitter performance. The AM bandwidth is adjustable up to 4K. The receiver bandwidth is also adjustable.

They have upgraded the power cord to a heavy-duty version, reducing voltage drop and increasing peak power.

Important Features Include:

High Power - The SR-655HP uses four IRF-520 mosfet transistors that produce 70+ watts peak power. If you want be heard, the SR-655HP has the power required to do some serious talking.

7-Color Frequency Display - The SR-655HP features a 7-Color frequency display (Stryker Exclusive)

Brilliant 7-Color LED Backlit Face Plate- Choose from 7 colors with the push of a button or let the CPU controller scan through all of the colors on it's own. Our exclusive face plate design provides operators with back lighted controls, making adjustments even in the darkest conditions easy.

Dimmer Control- We listened to your feedback over the years and that's why the SR-655HP comes with a 32 position dimmer circuit with the lowest position turning the lights all the way off. If your eyes are sensitive to certain lights in the dark this is a must have feature!

Band / VFO - You can choose between using traditional band mode or VFO mode for continuous operation throughout the frequency range.

PC Programmable - You can further customize your radio using your PC!

Digital Echo with/ Dual Front Mounted Controls - Provides the operator a much wider range of effects and control than typical factory or aftermarket echo boards. Our board is able to reproduce the human voice with virtually no distortion providing maximum clarity and enjoyment.

Six Roger Beeps - Six different roger beeps are included with the SR-955HPC. These are controlled using a switched that is located on the front panel. This is a feature that you will find on virtually no other radio direct from the factory. Most importantly you can create your own customizable roger beeps using our PC software and then load them on to the SR-955PHC's on board memory!.

Variable Power Control – Allows the operator to adjust or vary their carrier from a two watt to 15 watts carrir ( Top Gun Technology keeps a 70+ watt peak regardless of carrier amount).

Variable Talk Back Control – The infamous talk back squeal is virtually eliminated with our independently controlled talk back circuitry. The operator can adjust the volume to the perfect level as operating conditions require. Best of all the user no longer has to turn down the microphone gain to stop the annoying squeal that is often the result of poor design or cost cutting at the production level.

Up-Armored™ Receiver- Our exclusive receiver protection works even under the harshest conditions, such as those experienced at a busy truck stop with many operators running high power radios. In addition our receiver filtering is tighter than most radios on the market. This means adjacent channel rejection is improved.

Factory OEM values on these watt meters
Dosy Bird RMS *Bird 43P
AM 2.5 ~ 15 2.5 ~ 15 2.5 ~ 15
FM 2.8 ~ 47 2.8 ~ 47 2.8 ~ 47
PEAK AM 5 ~ 32 3 ~ 16 15 ~ 60










*
The most informative and
the one we use.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

Optional Accessories
 Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency coverage)
$39
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
Switch Location

Install an EXTERNAL PTT keying port. We use an RCA jack for a
 TX output PORT to your external device. Every time you key it provides a
connection between the +/- of the RCA connector.

1) Output RCA completely isolated  from the radio. the
       RCA +/- connect to a relay that isolates it from the radios circuits.
   2) Optional BYPASS switch in case your external device does not have
        a standby (turns port off (stays open))
     4) Heavy duty relay can handle any keying circuit voltage, even the
         SB-220's - 120VDC circuit.
$49
/
$59
/
$69
SOLD OUT
 Install a Record/Playback Module 120 seconds (wired inside the radio with a
switch on the side to record 120 seconds and to play it back over the air)
$77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector.
10G power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade
$59
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Add a power Supply to run this as a Base Station in the house. $89




Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 1~15w 1~15w 1~15w
FM 1~40w 1~40w 1~40w
PEAK AM 4~41w 3~19w 18~75w
*The most informative meter and
 the one we use.    5/23/24




Additional Features Include:
  • Width : 7-7/8 in
    Height : 2-3/8 in
    Depth : 9-1/4 in
  • Scan your favorite channels or frequencies
  • Large Square S/RF & SWR Meter
  • Advanced NB/ANL Circuit Reduces Interference
  • AM/FM Operation and PA Circuitry
  • Automatic calibrating SWR meter for precise measurements
  • Hi-Cut Noise Filter
  • Front microphone connector for easy mounting in tight spaces
  • Receive and Microphone gain controls
  • 3 Year Limited Factory Warranty
  • Optional CTCSS Module
