10 Meter Mobile Radio |
|
|
SR-655HPC
PLUS
AM/FM
10 Meter
|
Download Manual
V2
(.exe) Download Software |

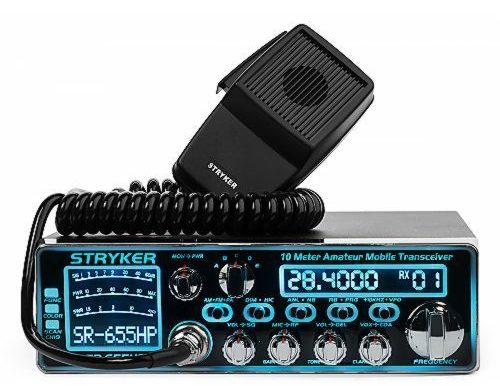

The SR-655HPC+ 10 Meter Radio uses a
unique
design for high
power with
reliable transistors for
long-range communication. 655hpc+ is a Top
Seller
because
it’s VERY LOUD & CLEAR. |
|
|
...SR-655HPC
PLUS...
|
$359 |
|
125+w peak AM |
|
 |
|
SR-655+ High Power
Long-Range communication radio uses 4
IRF-520 MOSFET transistors. It’s
a GREAT radio that pushes
60+ watts, ;
AND you can efficiently perform some serious long talks.
This Big power radio is a must if you run a log truck so
that others can keep track of your 10-20 in the
mountains and you can keep track of them.
-
Clear Receiver—655HPC+
receiver is very loud and clear. You can receive
great up to 50 miles and transmit out about 20. It
is easy to get familiar with, and the sound is
impressive—SR-655hp+ big radio sound with all the bells
and whistles.
-
Channel selector
–
Selector Switch (Encoder) for 655HPC+ Radios. It will
help you jump to your desired frequency easily without
any problem. A great quality encoder
with a slightly firmer positive click makes
Switching Easy for YOU while driving your rig on
highways.
-

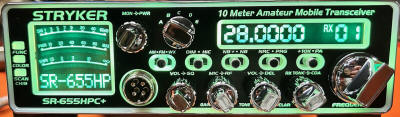

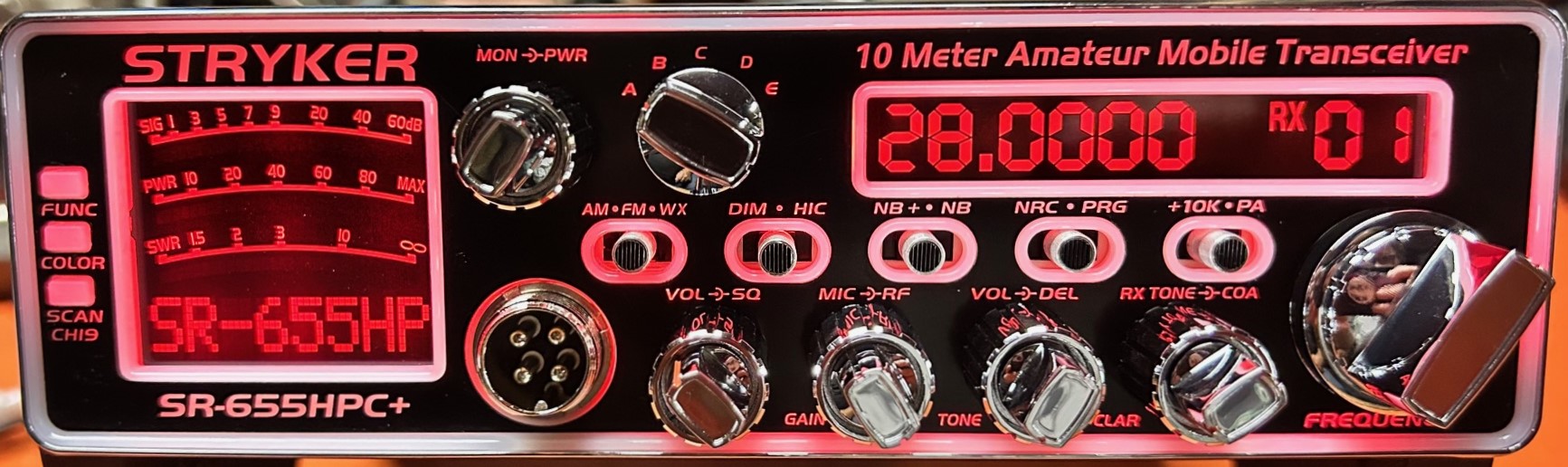

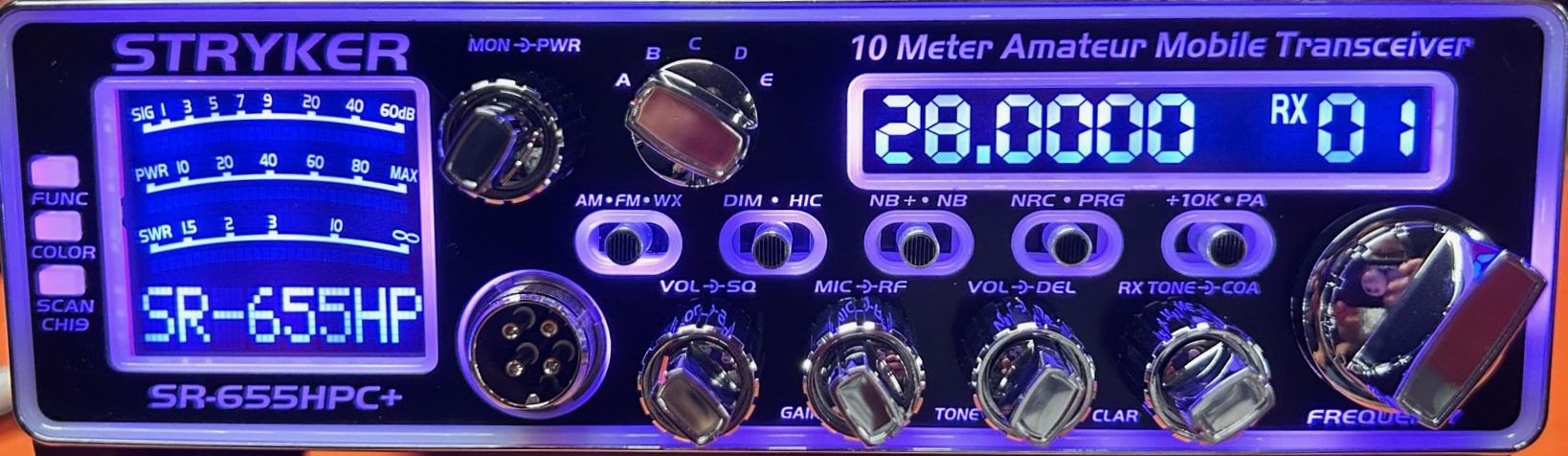

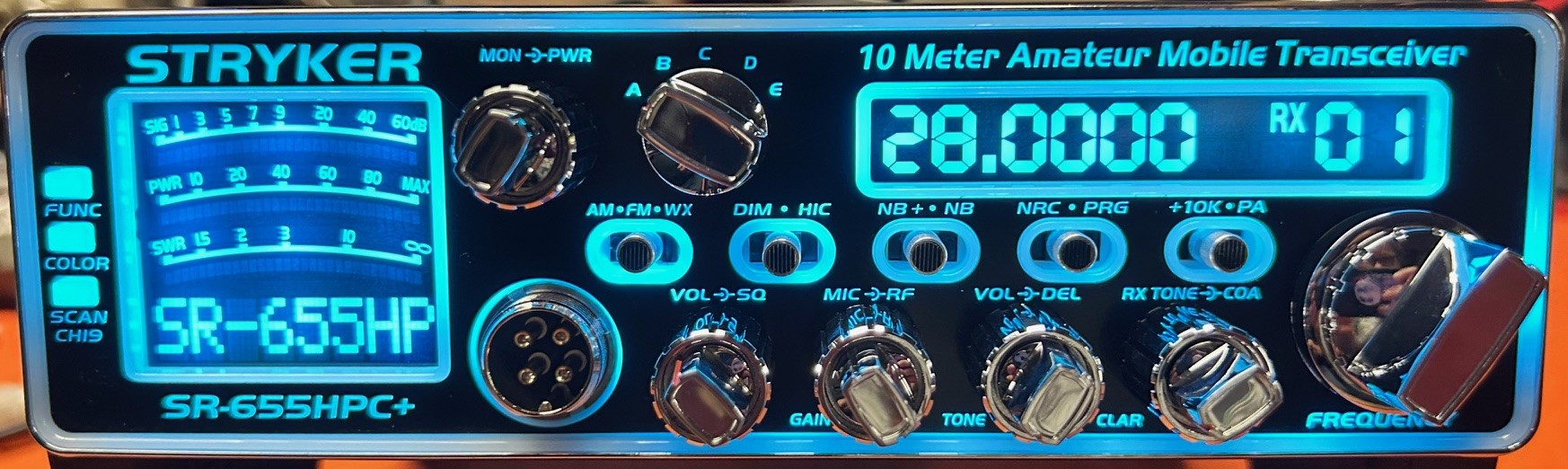

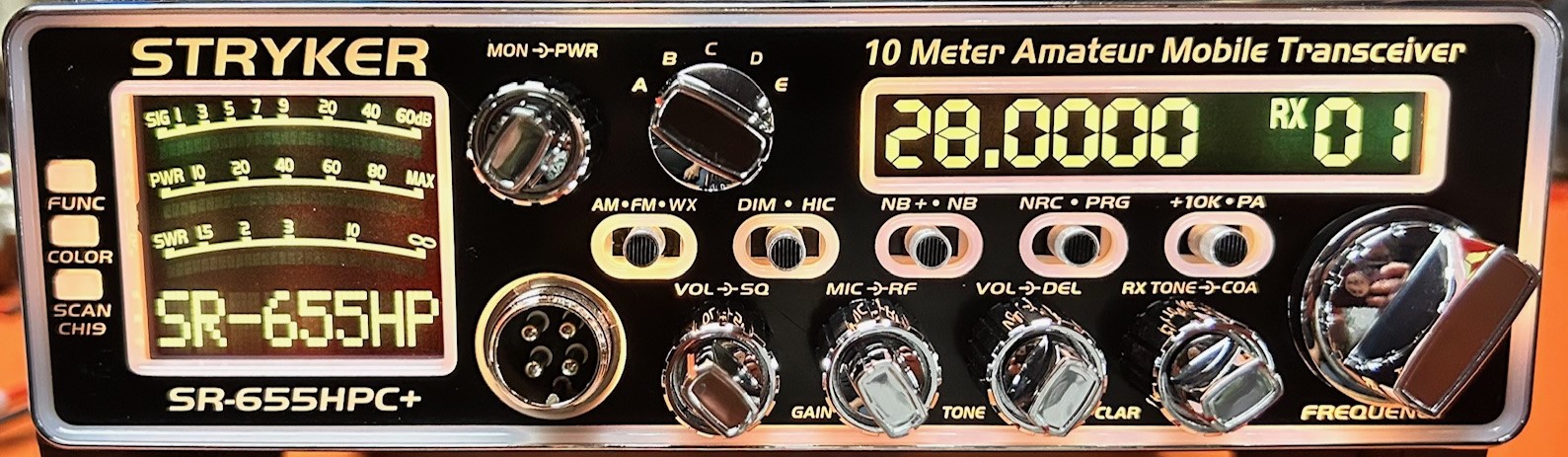

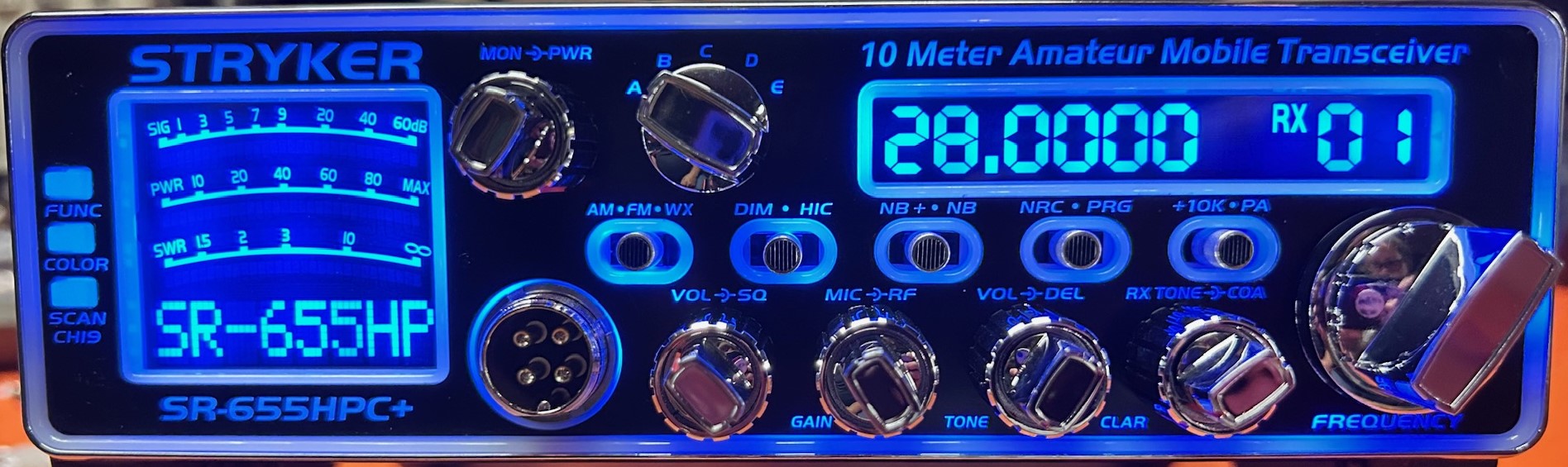

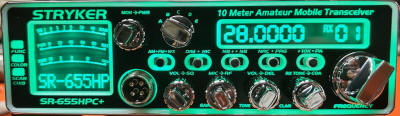

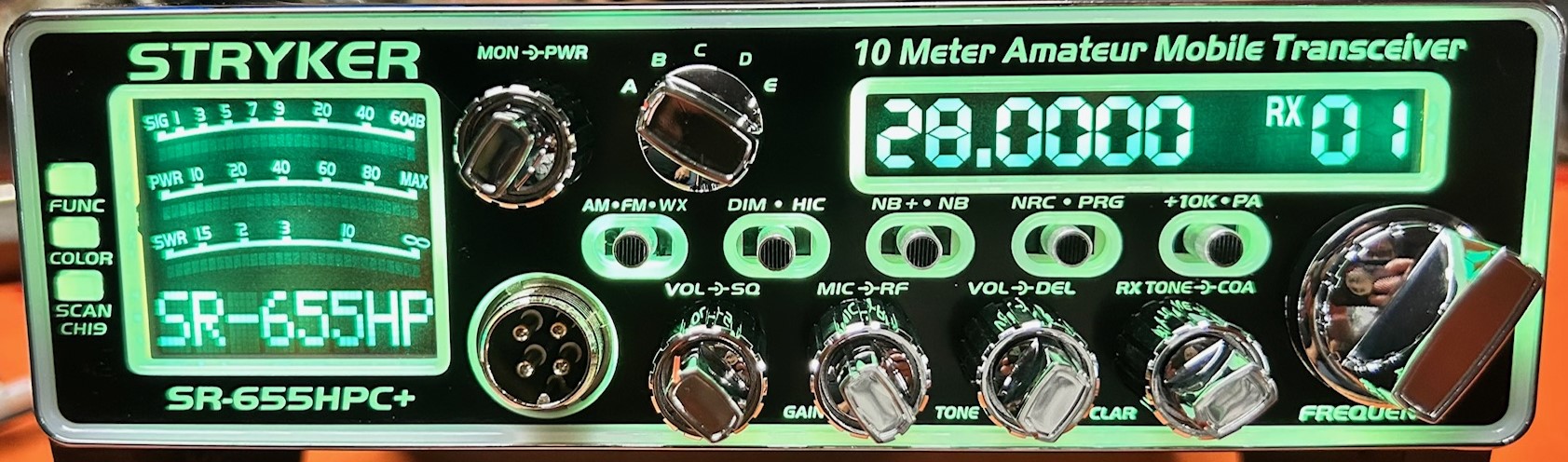

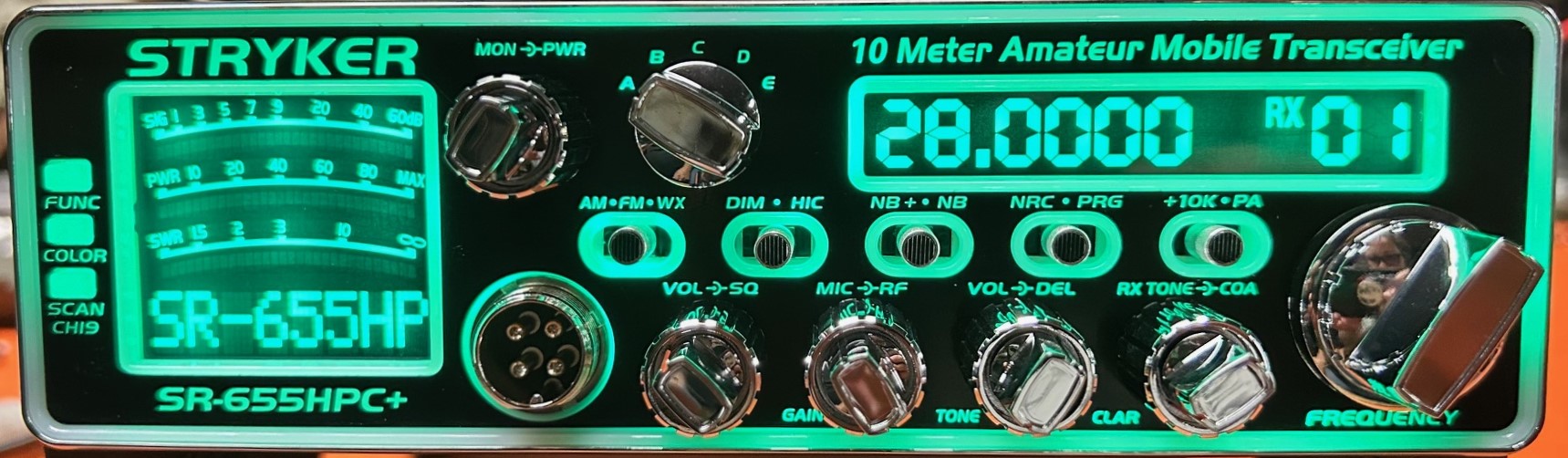

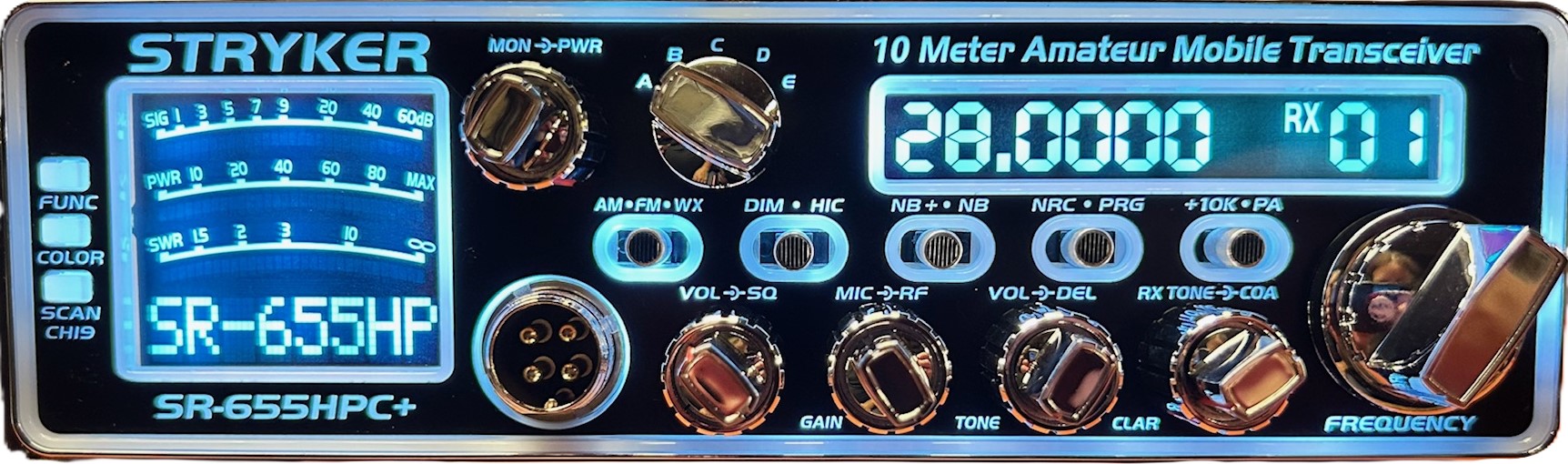

SR-655HPC+ has a
fantastic display LED faceplate with excellent Dimmer
Control. Faceplate
allows you to choose 8 different colors with
the push of a button or let the CPU controller scan
through all the colors on it and dimmer control; it
doesn’t burn your eyes like other radios at night.
|
|
Comply with part 15 of the FCC Rules. Operation is subject to
the condition that this device does not cause harmful
interference. Further information can be found at the FCC
website http://fcc.gov or
the ARRL website http://arrl.org.
ATransmitting using this radio requires an Amateur Radio License.
Licensing information can be obtained by visiting
www.fcc.gov or
http://arrl.org. In Canada, visit
http://strategis.ic.gc.ca
or
http://www.rac.camong the many reasons the 655-HPC+ is so great is its
improved power output; thefour
IRFET transistors equip it to
transmit 60+tts PEP.
|
|
|
|
|
Optional
Accessories |
|
Select Above |
Tune-up and frequency
conversion.
(Tune-up,
Alignment and
expanded
frequency ) |
$40 |
 |
Turner
RK-56
Noise Canceling microphone.
(wired for this radio with
a 4 pin plug) |
$46 |
 |
Astatic
636L Noise
Canceling microphone.
(wired for this radio with
a 4 pin plug) |
$29 |
 |
Astatic
RD104-E Amplified microphone.
(wired for this radio with a 4
pin plug and a battery installed) |
$46 |
|
|
 Install
an EXTERNAL PTT keying port.
We use an RCA jack for a
TX output PORT to your external device. Every time you key
it provides a
connection between the +/- of the RCA
connector.
1)
Output RCA completely isolated from the radio.
the RCA
+/- connect
to a relay that isolates it from the radios circuits.
2) Optional BYPASS switch in case your external device does
not have
a standby (turns port off (stays open))
4) Heavy duty relay can handle any keying
circuit voltage, even
the
SB-220's - 120VDC circuit. |
$49
/
$59
/
$69 |
|
|
Install a
Record/Playback Module 120 seconds
(wired inside the radio with a
switch on the side to record 120 seconds and to play it back
over the air) |
$77 |
|
|
Install
a
Noise toy
(wired inside the radio with
a switch or pushbutton to trigger any 30 second sound byte
you want) |
$65 |
|
|
Install
a
Noise toy as a background theme music
(wired inside the radio with
a switch to play any background music at very low volume so
you can talk over it.) |
$65 |
 |
Add a Fan Kit
in
the back of the radio |
$39 |
|
|
Change
factory power cord to a 10 Gauge
Power
Cord (14 foot) and modify the DC Jack for high
amperage 2 Pin Quick connector. A 10,000uF
Capacitor is also added for additional DC filtering.

  |
$59 |
|
|
Change
factory power cord
to a 8 Gauge
Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 10,000uF Capacitor is also added for additional
DC filtering.
       |
$99 |
 |
Add
a
Small External Speaker
(plugs into back of the
radio for improved sound) |
$12 |
 |
Add a
Large External Speaker
(plugs into back of the radio
for improved sound) |
$25 |
 |
Add a Fan Kit
in
the back of the radio |
$49 |
 |
Add a
table top stand
to run this as a Base Station in the house. |
$25 |
 |
Add a power Supply
to run this as a Base Station in the house. |
$89 |
 |
Add
a power Supply and speaker
and fan
to run this as a Base Station in the house. |
$149 |
Tuned up values on these watt meters
|
Dosy |
Bird RMS |
*Bird 43P |
| AM |
1~20w |
1~20w |
1~20w |
| FM |
1~40w |
1~40w |
1~40w |
| PEAK
AM |
4~62w |
3~23w |
21~123w |
*The most informative
meter and
the one we use.
4/24/25
|

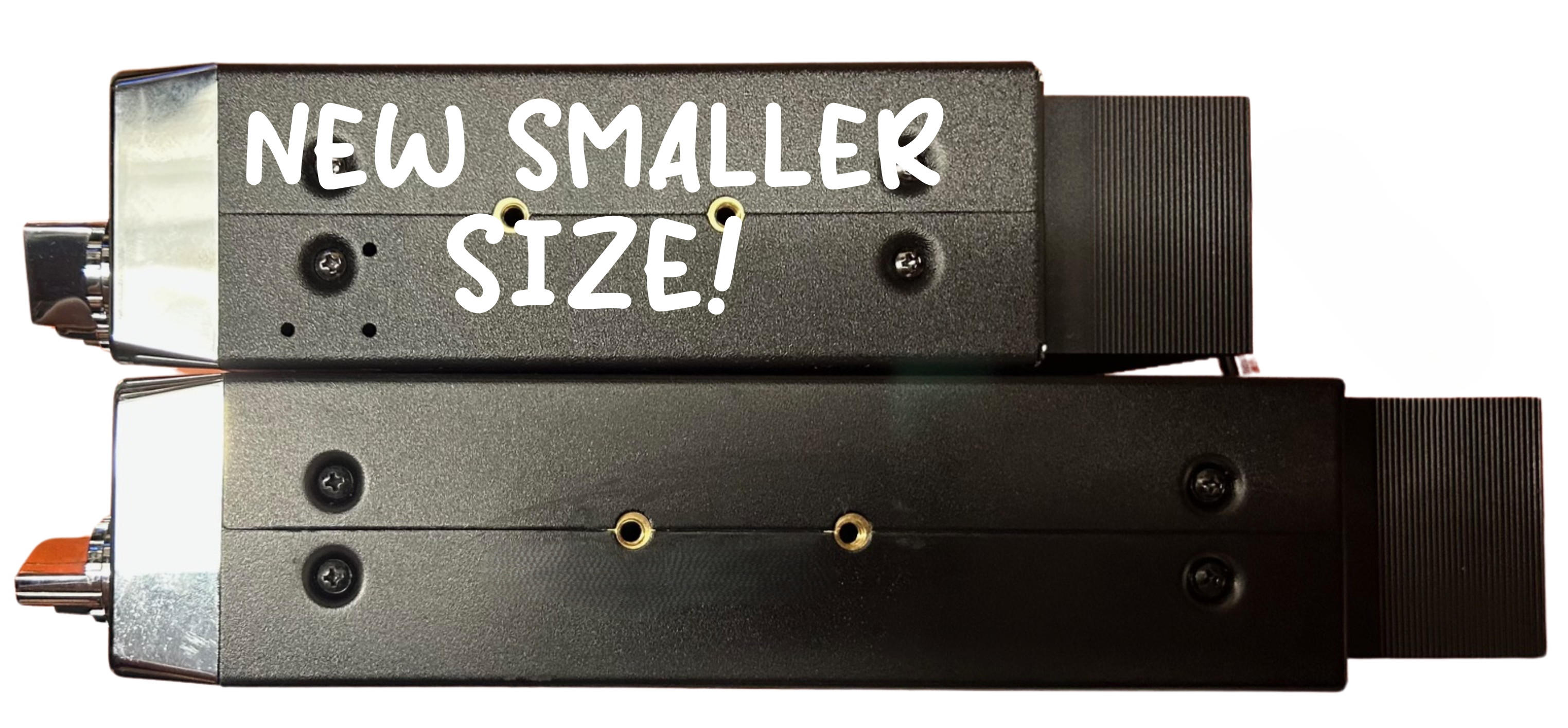

- Size:
- Width : 7-7/8 in
- Height : 2-3/8 in
- Depth : 7-1/8 in
- High power 100+ watts
- PEP Variable talkback control
- Six Roger beeps
- Brilliant 8-color LED-backlit
faceplate
- Variable power control
- Up-armored receiver
- Dimmer control (32 positions)
- Digital Echo with dual
front-mounted controls
- PC Programmable
GENERAL SPECS
- Frequency Range: 28.000-29.700
MHz & 24.890 – 24.990
- (PC Programmable)
- Frequency Bands A. B, C, D, E,
F, G, H, I, J, K, L & VFO
- Channel 40 channels
(programmable) in each band
- Input voltage 13.8V (14.2
recommended)
- Antenna connector UHF SO239
- Frequency Control
Phase-Locked-Loop Synthesizer
- Frequency Step
100Hz/1KHz/10KHz/100KHz/1MHz
- Frequency Tolerance of
0.005%
- Frequency Stability 0.001%
- Temperature Range -20c + 50c
Transmitter SPECS
- Power Output AM: 15W 60+ W
PEP / FM 45W
- Current Drain 12A (with
modulation)
- Unwanted Sideband 50dB
- Frequency Response:
- AM/FM: 300 to 4000Hz
- Output Impedance 50 ohms,
unbalanced
- Modulation AM ***FM ***
- Inter-modulation
Distortion
- 3rd order, more than -25dB
- 5th order, more than -35dB
Receiver SPECS
- IF Frequency
AM/FM:10.695 MHz 1st IF, 455 kHz
- RF Gain Control 45 dB for
optimum signal reception
- Automatic Gain Control:
- Less than 10 dB change from
10 to 100,000 mv
- Squelch Adjustable: threshold
less than 1.0µV
- Automatic Squelch
Control(only AM/FM)1.0µV
- Audio Output Power 3 watts
into 8 ohms
- Frequency response: AM/FM:
300 to 3000 Hz SSB 450 to 2500 Hz
- Built-in Speaker 8 ohms,
round.
- External Speaker Jack
Sensitivity SSB: 0.25µV for 10dB AM:1.0 µV for 10dB FM:
1.0µV for 20dB
- Adjacent-Channel Selectivity:
AM/FM: 70dB ***
|
|
|
