  Orders with radio work are delayed 3 - 10 days


                                    10 Meter Mobile Radio

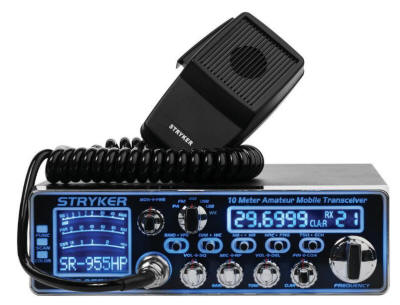

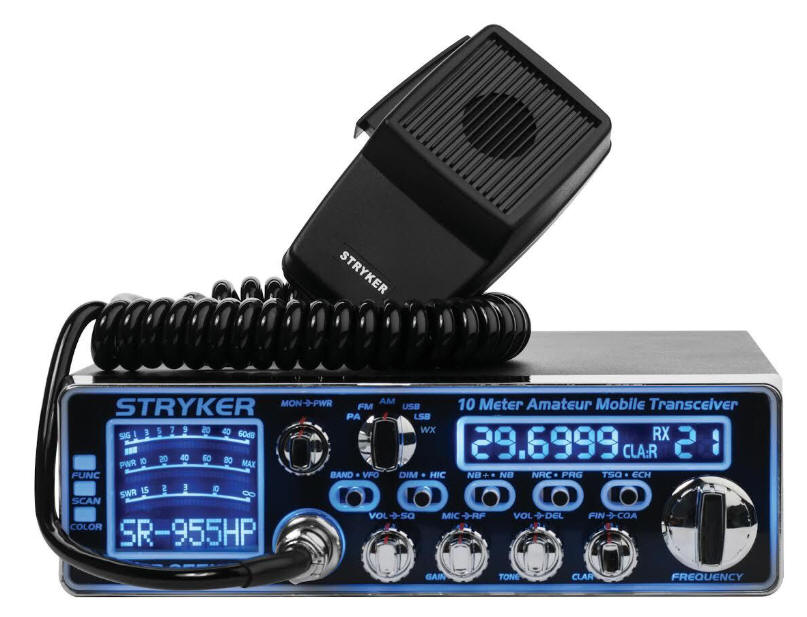

  SR-955HPC V2

Click for larger image

SR-955HPC
Version 2 +PLUS

AM/FM/SSB 10 Meter Radio



Download Manual
 (.rar) Download Software

The Stryker SR-955HPC has been Updated to the SR-955HPC+

Features of the 955HPC+
- Output over 100W PEP
- Upgraded Noise Reduction Circuit (NRC) minimizes noise during transmit and receive.
- Weather channels and severe weather alerts.
- Supports VHF VFO reception within range of 136 - 174 MHz
- Allows for adjustable Gain Control (AGC) speed, catering to specific user requirements.
- Benefit from the NEW SHORT CHASSIS DESIGN (2.25" shorter) making installation easier.

High performance stable SSB operation, outstanding AM audio and PC programming make the SR-955HPC the new industry standard!

The new Stryker SR-955HPC was designed from the ground up for excellent all mode performance. Up until now most 10 meter mobiles that performed well on SSB weren't very good on AM. The other half that were great on AM were terrible on SSB, at last we've designed a radio that excels on AM, FM & SSB!

Features

Important Features Include:

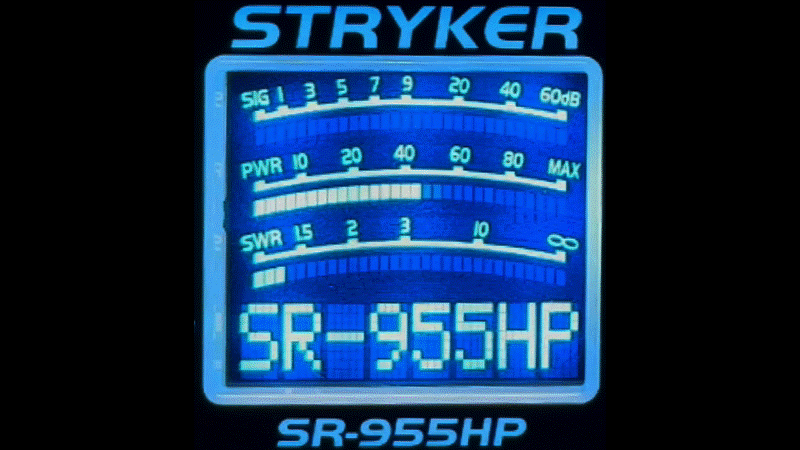

7-Color Frequency Display - The SR-955HPC features a 7-Color frequency display (Stryker Exclusive)

Brilliant 7-Color LED Backlit Face Plate- Choose from 7 colors with the push of a button or let the CPU controller scan through all of the colors on it's own. Our exclusive face plate design provides operators with back lighted controls, making adjustments even in the darkest conditions easy.

Dimmer Control- We listened to your feedback over the years and that's why the SR-955HPC comes with a 32 position dimmer circuit with the lowest position turning the lights all the way off. If your eyes are sensitive to certain lights in the dark this is a must have feature!

Clarifier - Our clarifier gives you the option of choosing if you want the fine control to be used only on receive or also on transmit. You can also select how much range the fine and coarse clarifiers have.

Band / VFO - You can choose between using traditional band mode or VFO mode for continuous operation throughout the frequency range.

PC Programmable - You can further customize your radio using your PC!

Digital Echo with/ Dual Front Mounted Controls - Provides the operator a much wider range of effects and control than typical factory or aftermarket echo boards. Our board is able to reproduce the human voice with virtually no distortion providing maximum clarity and enjoyment.

Six Roger Beeps - Six different roger beeps are included with the SR-955HPC. These are controlled using a switched that is located on the front panel. This is a feature that you will find on virtually no other radio direct from the factory. Most importantly you can create your own customizable roger beeps using our PC software and then load them on to the SR-955PHC's on board memory!.

Variable Power Control – Allows the operator to adjust or vary their carrier from a two watt to over 70 watts PEP.

Variable Talk Back Control – The infamous talk back squeal is virtually eliminated with our independently controlled talk back circuitry. The operator can adjust the volume to the perfect level as operating conditions require. Best of all the user no longer has to turn down the microphone gain to stop the annoying squeal that is often the result of poor design or cost cutting at the production level.

Up-Armored™ Receiver- Our exclusive receiver protection works even under the harshest conditions, such as those experienced at a busy truck stop with many operators running high power radios. In addition our receiver filtering is tighter than most radios on the market. This means adjacent channel rejection is improved.

  • Advanced Noise Reduction (NR) uses digital signal processing to measure, filter, or compress continuous analog signals, reducing the amount of receiver noise. You get superior performance on crowded airwaves because Stryker is at the forefront of technological developments in radio.
  • Easily navigable function menu for customizing radio controls and features. Included cable to connect to PC for configuring advanced specs.
  • Variable Transmit Frequency Response – You can now change the transmit frequency response of your radio. You can choose from 2.0 kHz, 2.5 kHz, 3.0 kHz, 3.5 kHz, and 4.0 kHz. This is another advanced feature that we have built into the SR-955HPC for even louder and clearer transmit audio.
  • Variable Receiver Frequency Response – This feature allows you to change the receiver frequency response of the radio for the best receiver clarity. You can choose from 2.0 kHz, 2.5 kHz, 3.0 kHz, 3.5 kHz, and 4.0 kHz for enhanced clarity.
  • COMP – Receiver Noise Reduction Feature that helps filter out receiver interference.
  • Gate – Audio processor blocks all unwanted background noise when you are transmitting.
  • CTCSS / DCS – Included at no extra cost. The circuitry is built into the board, so no extra module is required.
  • Upgraded Encoder – No skipping, ever!
  • Rugged construction built to last. Width: 7⅞”, Height: 2⅜”, Depth: 9Ό”





Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Tune and Convert?
...SR-955HPC PLUS ...
Coming next week.
Pre-oreder Now.
$439


Optional Accessories
Select Above  Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency)
$40
Program your Handle or Call sign
to show on the display. Maximum 8
Characters.
$5
RK-56  Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
636L Mic  Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
RD104E  Astatic RD104-E  Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
Switch Location

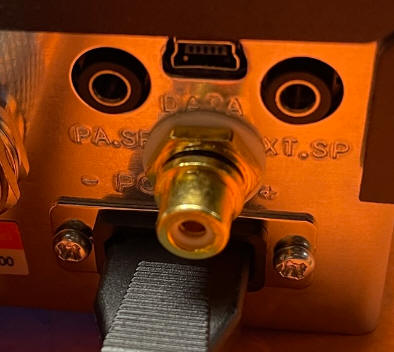

 Install an EXTERNAL PTT keying port. We use an RCA jack for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector.

1) Output RCA completely isolated  from the radio. Both +/-  connect to a relay that isolates it from the radios circuits.
   2) Optional BYPASS switch in case your external device does not have a standby (turns port off (stays open))
     4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.
$49
/
$59
/
$69
SOLD OUT
 Install a Record/Playback Module
30 seconds
(wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air)
$77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering.
Power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade
$59
 Change factory power cord to a 8 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering.
Pwr Cord UpgradePwr Cord UpgradePwr Cord UpgradePwr Cord Upgrade8G power CordXT90 plug
$99
 Add a Side Mic Jack on seen on this video. $73
small speaker  Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
Large Speaker  Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

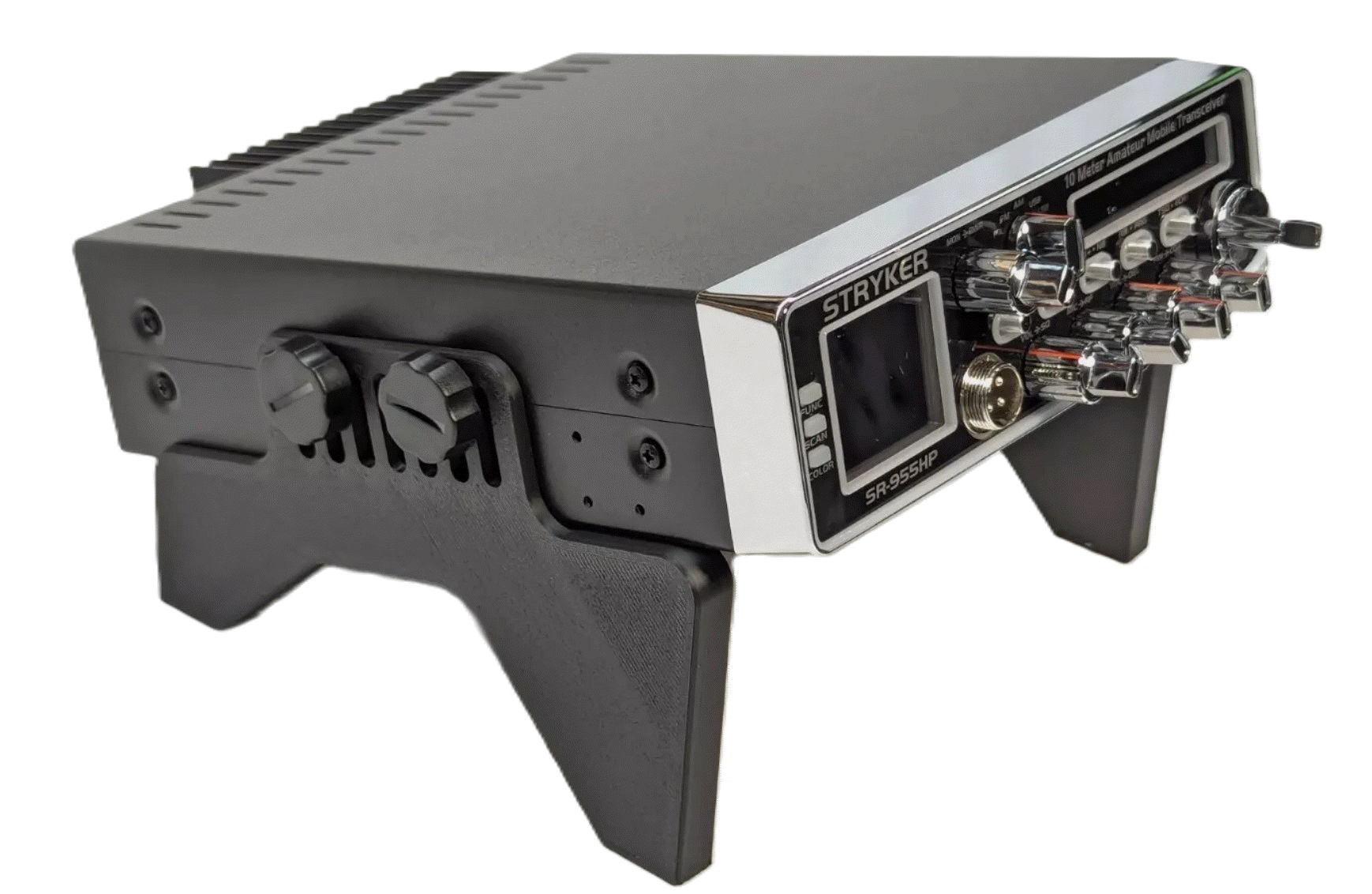

K-615  Add a table top stand to run this as a Base Station in the house.  $25
PSV-300 Add a power Supply to run this as a Base Station in the house. $89

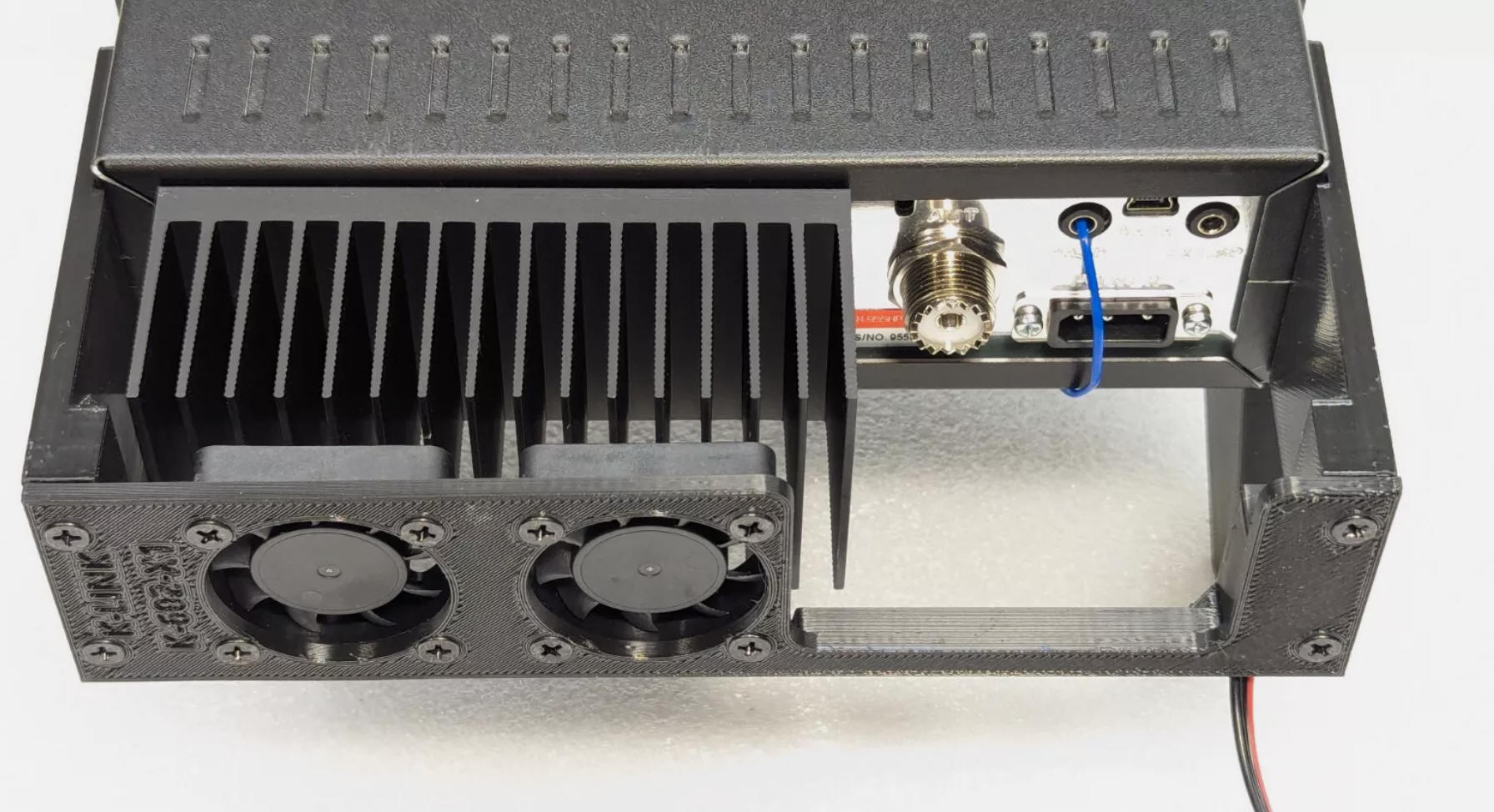

K-621v3 Add a power Supply and speaker and fan to run this as a Base Station in the house. $149


Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM
FM
SSB
PEAK AM
*The most informative and the one we use. 06/07/24
Factory OEM values on these watt meters
Dosy Bird RMS *Bird 43P
AM
FM
SSB
PEAK AM




CB Microphone Wiring (Galaxy)













Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca
