  Orders with radio work are delayed 7 - 14 days

     10 Meter Mobile Radio

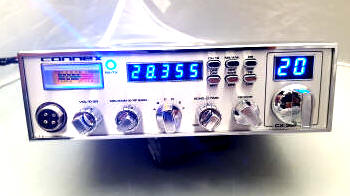

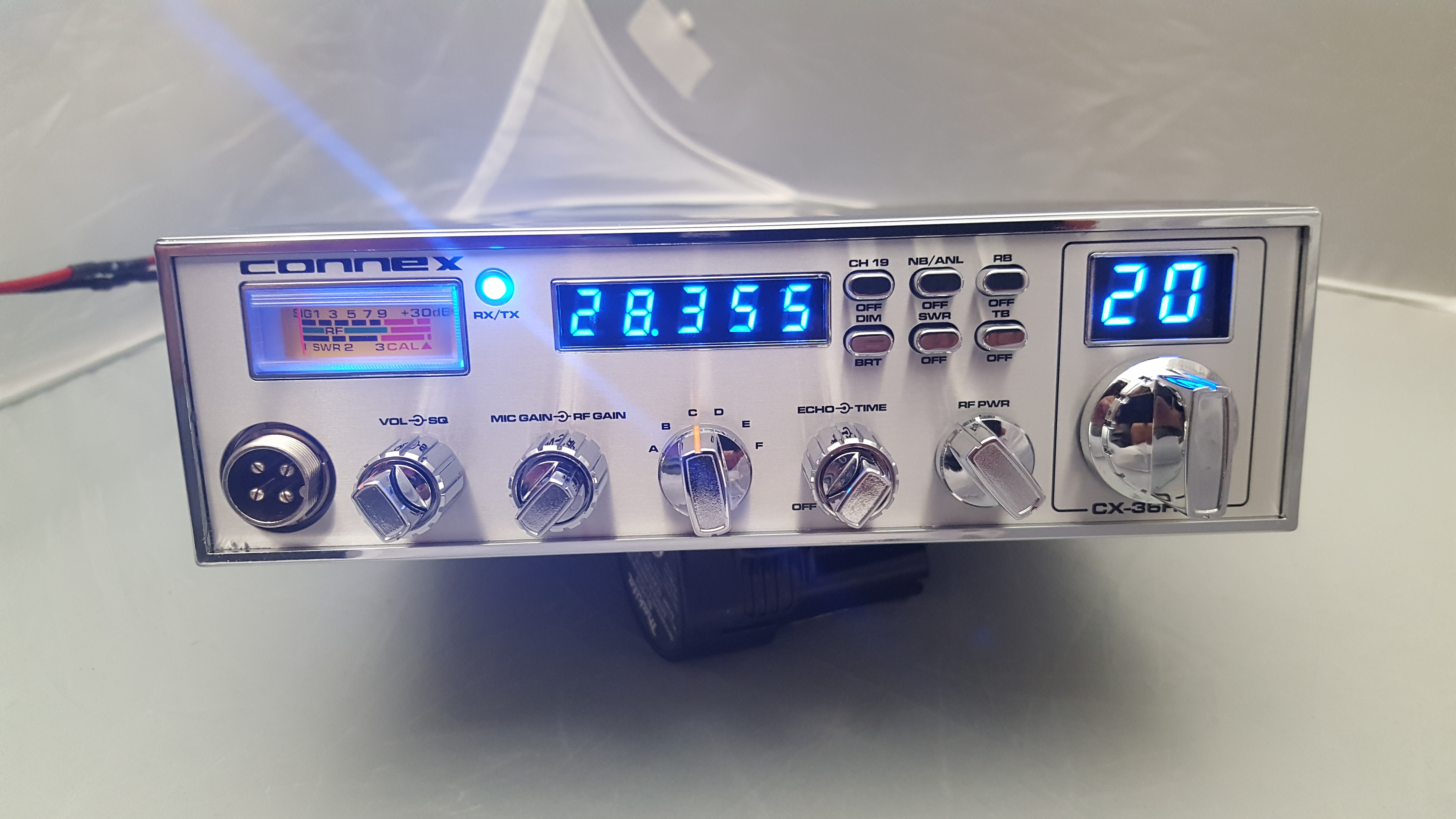

Connex CX-36HPF_Front
Click for larger


CX-36 HPF
AM/FM 10 Meter Radio

Download Manual

Features
  • Dual Mosfet Finals

  • BLUE Channel LED

  • 5 Digit Frequency Counter

  • Large Meter with Scales for Signal Strength and Power Output

  • Red/Green Transmit LED

  • Noise Blanker

  • Automatic Noise Limiter

  • Dimmer function with on/off switch

  • Echo Board with Two Controls

  • Talk Back function with on/off switch

  • Variable RF Power Output Level

  • 10 Watts AM power

  • 40W AM peak power

  • SWR Meter function

Connex CX-36HPF_2

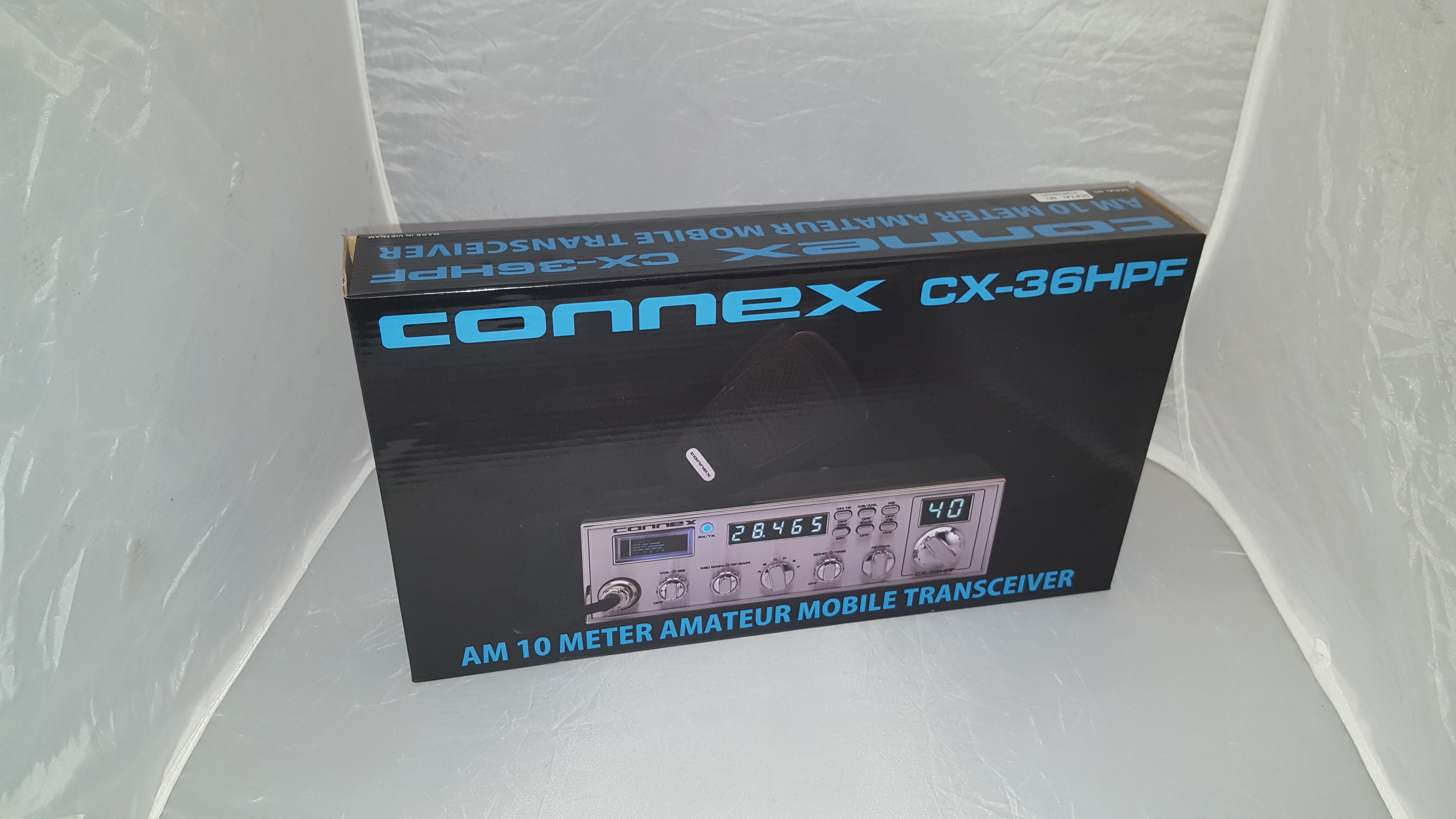

Connex CX-36HPF_3

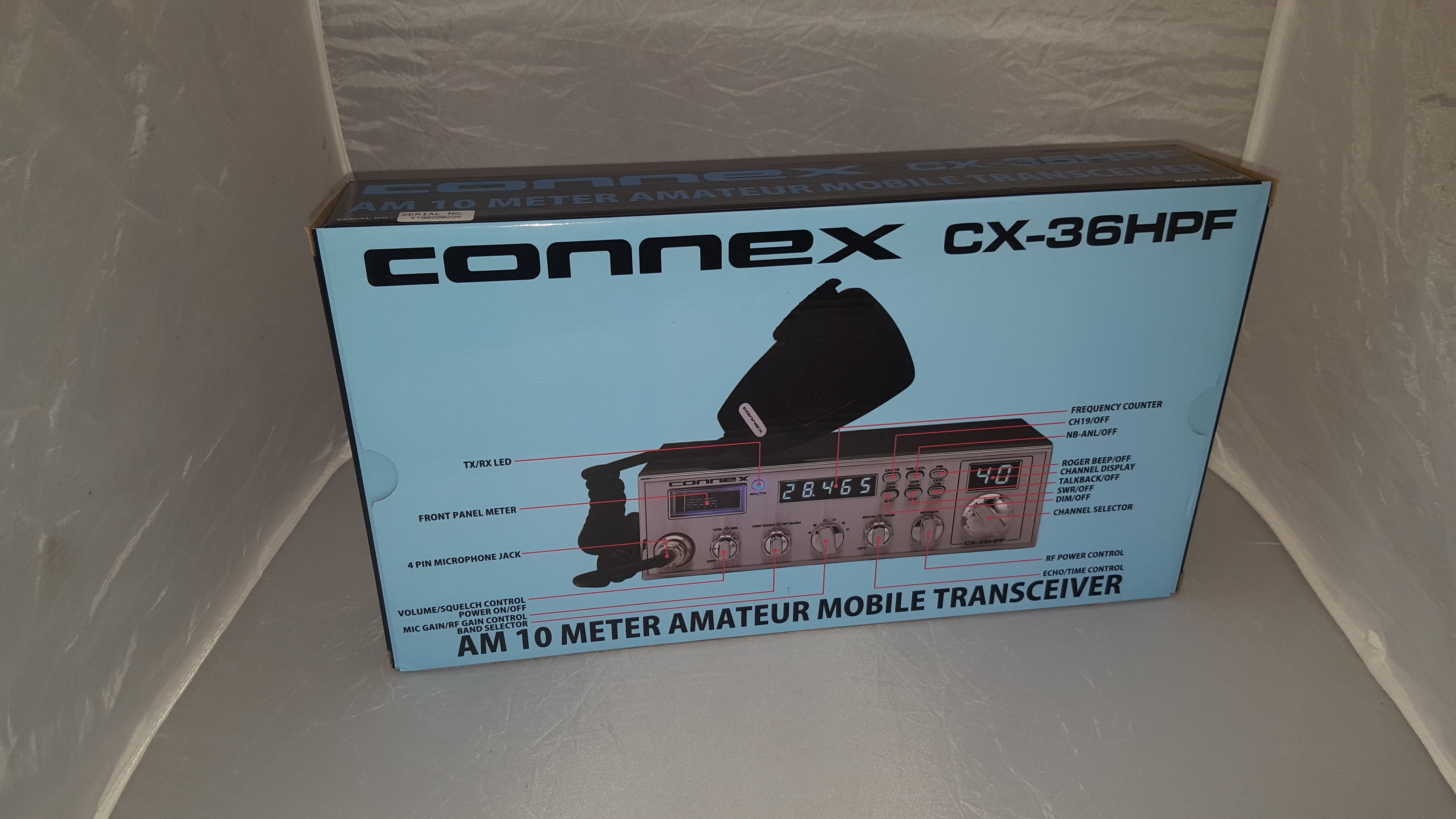

Connex CX-36HPF_4

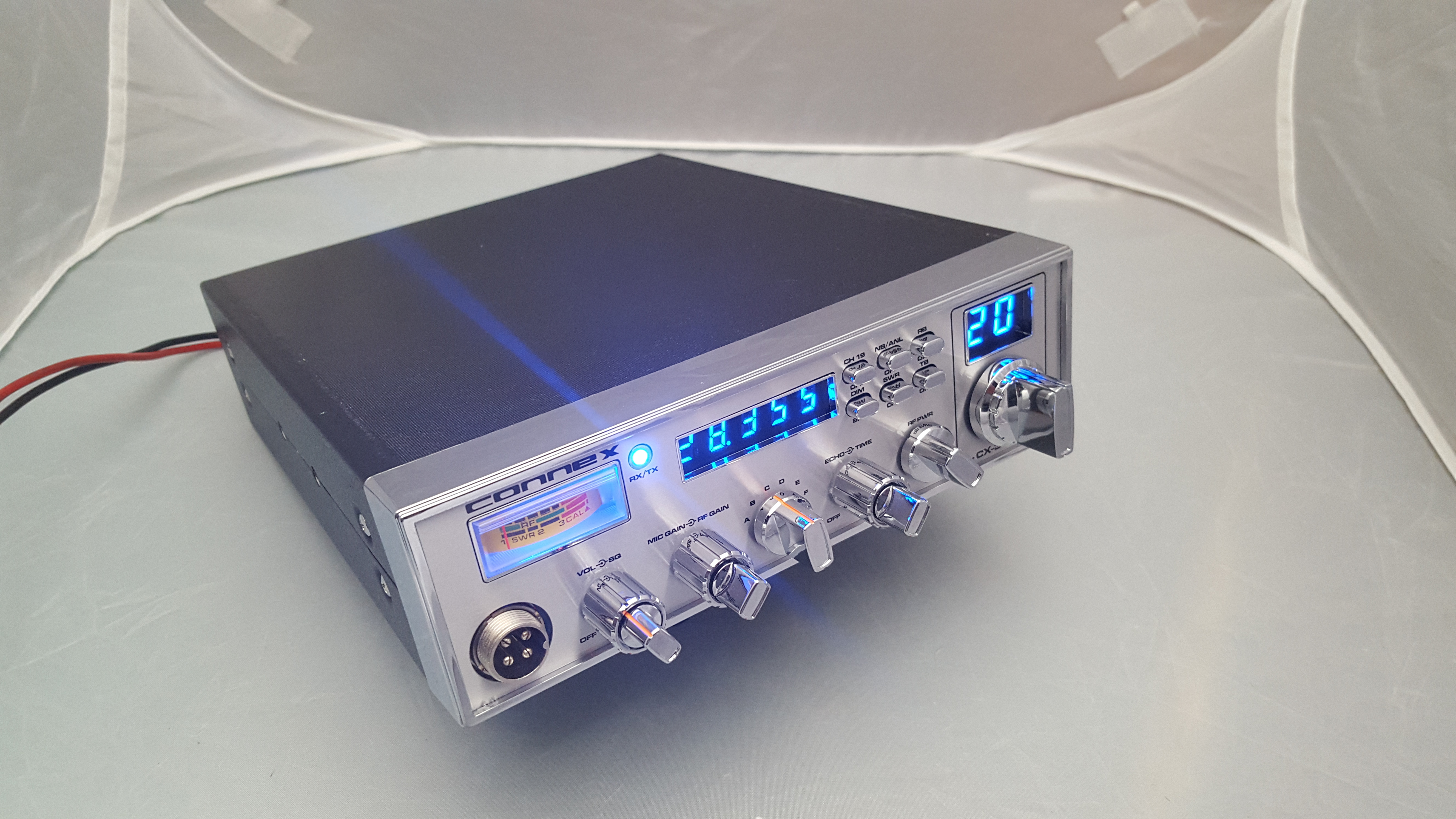

Connex CX-36HPF_5

                           Click images for larger



The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.





Connex radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Connex radio might though and I cannot control it.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

SOLD OUT
Get Notified Via E-Mail when we are taking orders again
...CX-36HPF... $259.50




Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage (AM/FM: 1-10w, Peak AM: 20-45w)  $39

RFX-95HD Final. Final. Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 20 watts with 80+ watts peak power. Amp on/off on NB/ANL switch. $189
Perform Receiver improvement mod.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
SOLD OUT
 Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
Colors
Install Star-Bryte Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $172
Chrome covers Exchange the top and bottom covers to Chrome Covers. $32
Diomand plate covers Exchange the top and bottom covers to Diamond Plate Covers. $22
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25



Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 1w ~ 10w 1w ~ 10w 1w ~ 10w
Peak 5w ~ 25w 2w ~ 11w 23w ~ 50w
* The most informative meter and the one we use.




CB Microphone Wiring (Galaxy)

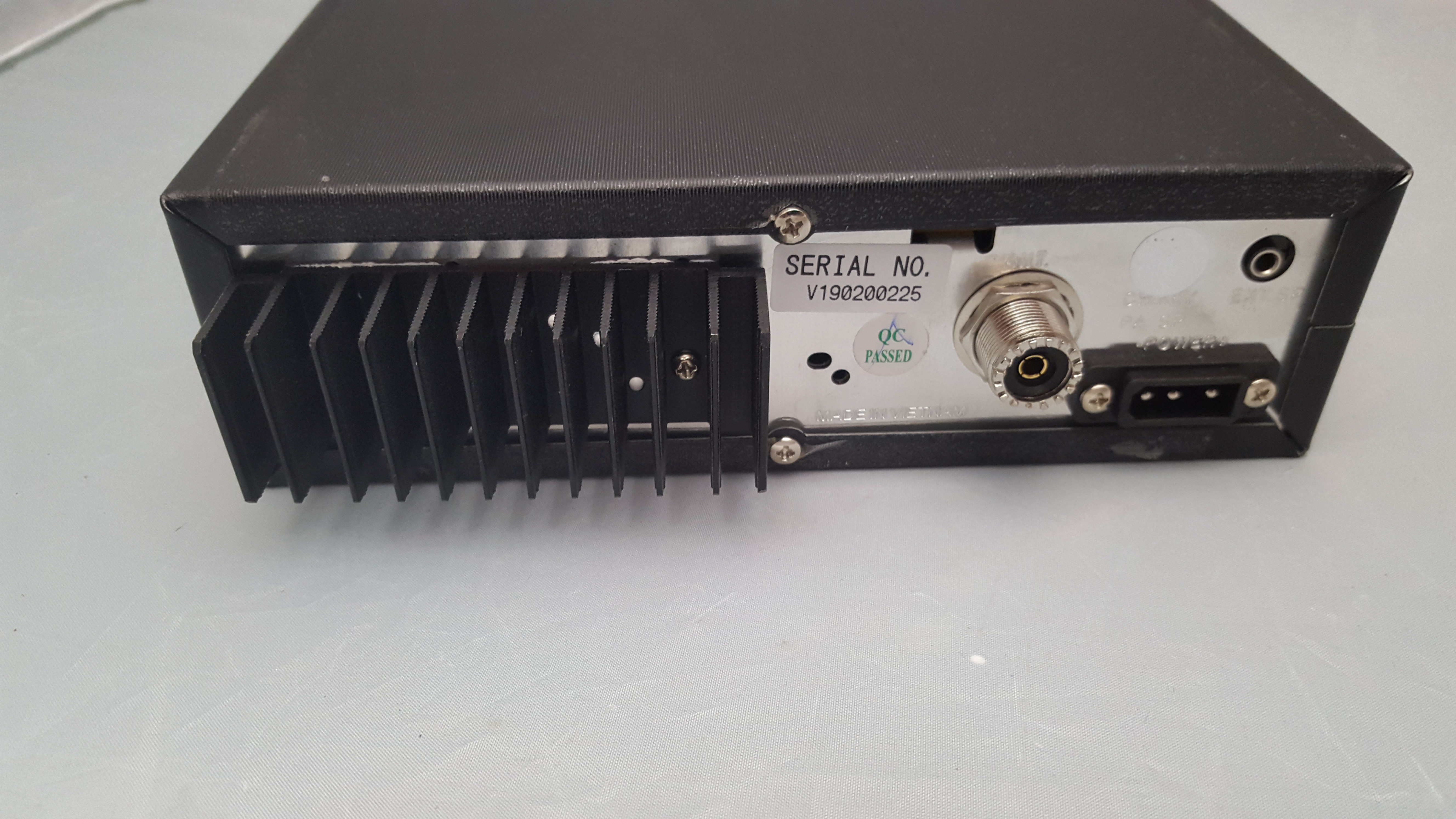

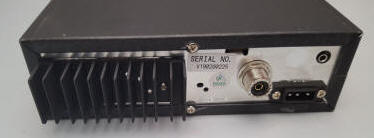

SO-239As many of you may know;  Ranger, Galaxy and General radios have all had some poor tolerance coax connectors this last year (SO-239 on the back of the radio) . You have to wiggle the coax just right to get a good grab on the threads of the connector. They are too far “out of tolerance” and we can no longer accept it.       So we have started changing the coax connectors ourselves to a much higher quality SO-239 that will fit your coax nice and tight.  This has affected our selling price ($10) but we think you will agree that it is worth it.
