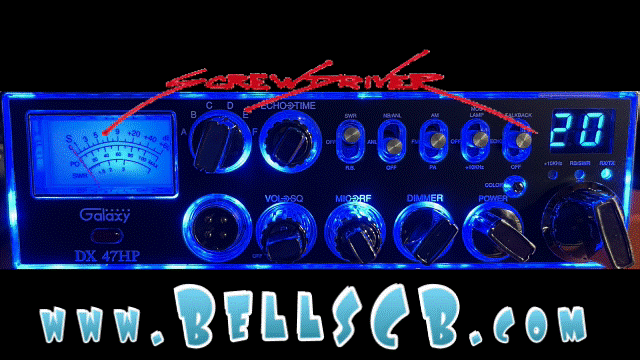

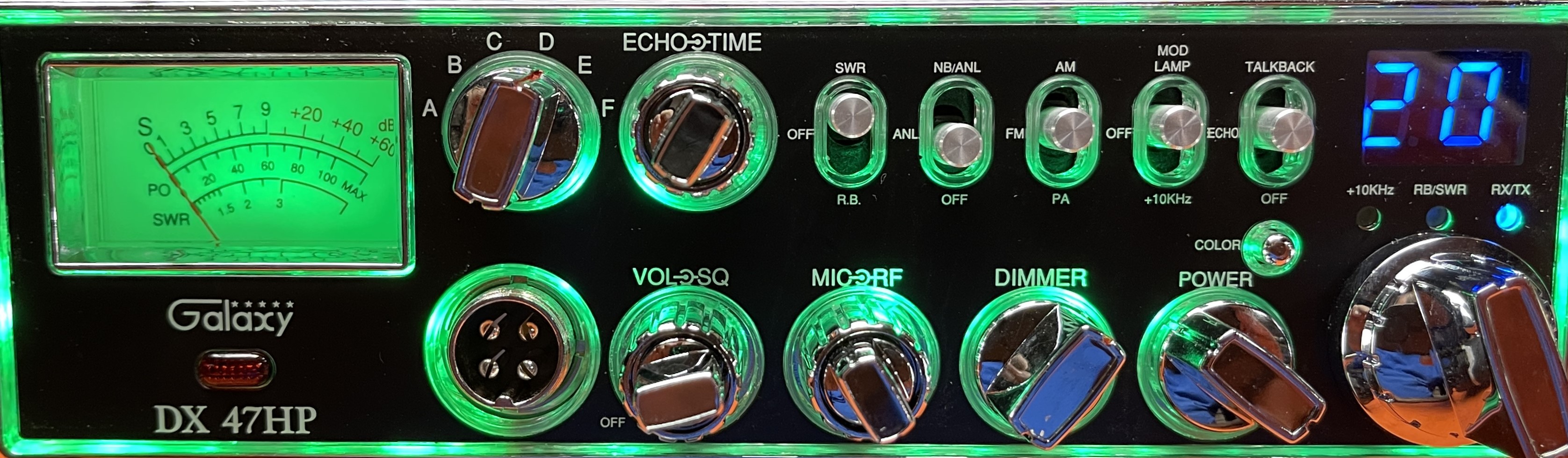

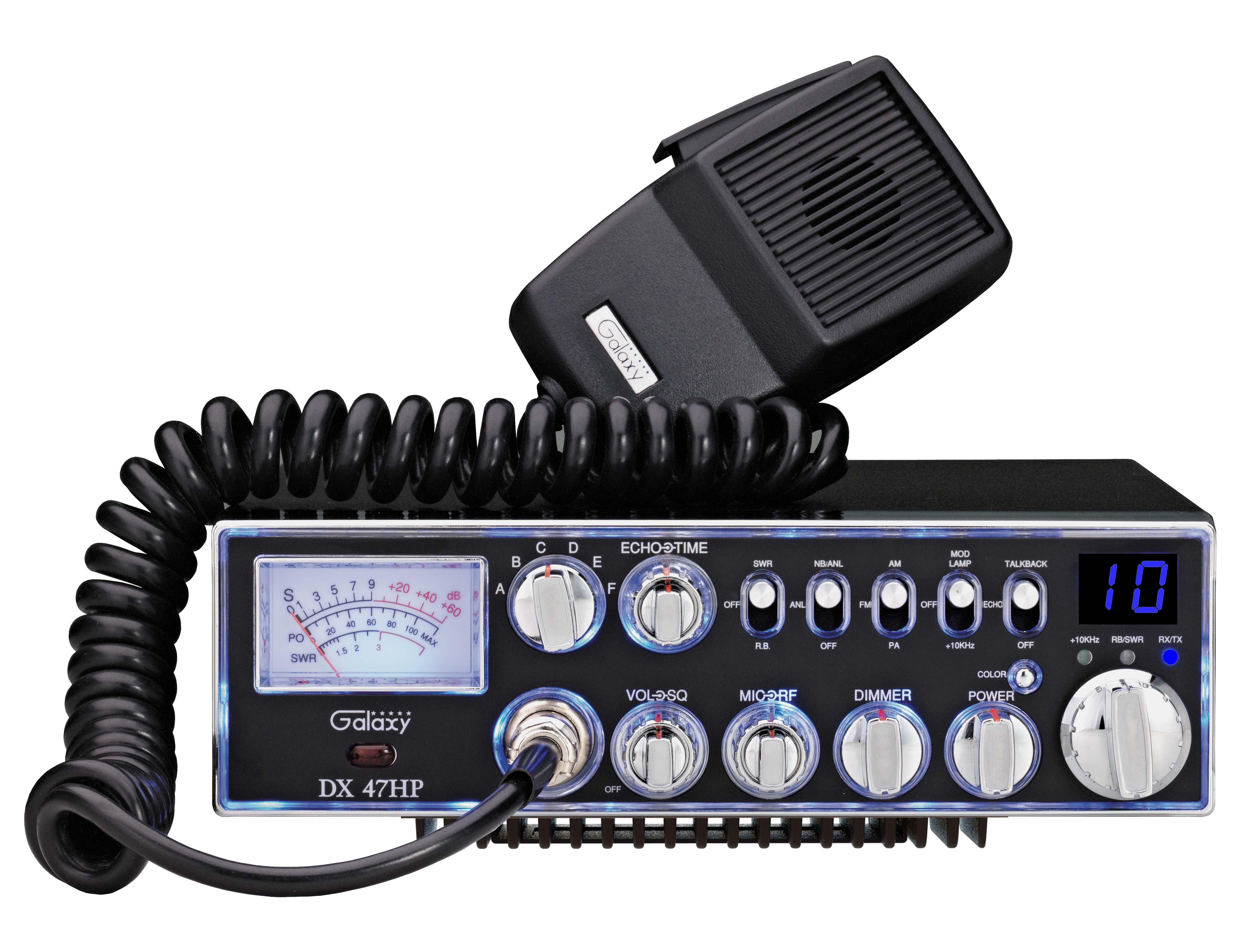

DX 47HP
AM/FM 10 Meter Radio

Download Manual

Features
  • 100W peak power
  • 14Amps max current draw
  • Bottom Mounted Heat Sink
  • Internal Cooling fan
  • AM/FM and PA
  • Front Mic Jack
  • 7 selectable backlight color
  • Automatic SWR Circuit
  • High SWR Alert Circuit
  • +10 KHz Circuit
  • Blue Channel Display Digits
  • Roger beep
  • Modulation Lamp
  • Variable Power Output
  • Echo with Dual Controls
  • Switchable Talkback
  • Three Year Warranty








VIDEOS

Tune-up Reports and Custom work done here at BellsCB:
This is a playlist and has multiple videos
 (notice the   button to change to the next video)

The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.

Galaxy radios sometimes have a small scratch or ding that the factory covers with touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Galaxy radio might though and I cannot control it.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

...AM/FM 10 Meter Radio... $399.50






Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $39
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25
 Install a switch in the back to turn off the 100w amp. (wired behind the radio with a switch for on/off) AM/FM: .25 ~ 1.25w Peak AM: 2 ~ 15w $15
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
  Install a Record/Playback Module 18 seconds (wired inside the radio with a switch on the side to record 18 seconds and to play it back) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25





Tuned up values on these watt meters
Dosy Bird RMS * Bird 43P
AM/FM 3 ~ 30w 3 ~ 30w 3 ~ 30w
PEAK AM 12 ~ 70w 4 ~ 31w 46 ~ 115w


Tuned up values on these watt meters
With optional
AMP
switch OFF
Dosy Bird RMS * Bird 43P
AM/FM .02 ~ 2w .02 ~ 2w .02 ~ 2w
PEAK AM 1 ~ 10w 1 ~ 4w 7 ~ 22w
*  The most informative and the one we use.

CB Microphone Wiring (Galaxy)



SO-239As many of you may know;  Ranger, Galaxy and General radios have all had some poor tolerance coax connectors this last year (SO-239 on the back of the radio) . You have to wiggle the coax just right to get a good grab on the threads of the connector. They are too far “out of tolerance” and we can no longer accept it.       So we have started changing the coax connectors ourselves to a much higher quality SO-239 that will fit your coax nice and tight.  This has affected our selling price ($10) but we think you will agree that it is worth it.
