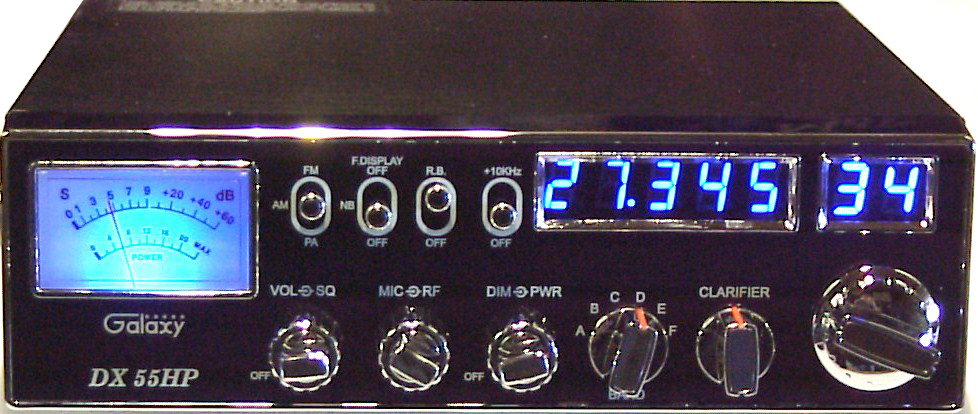

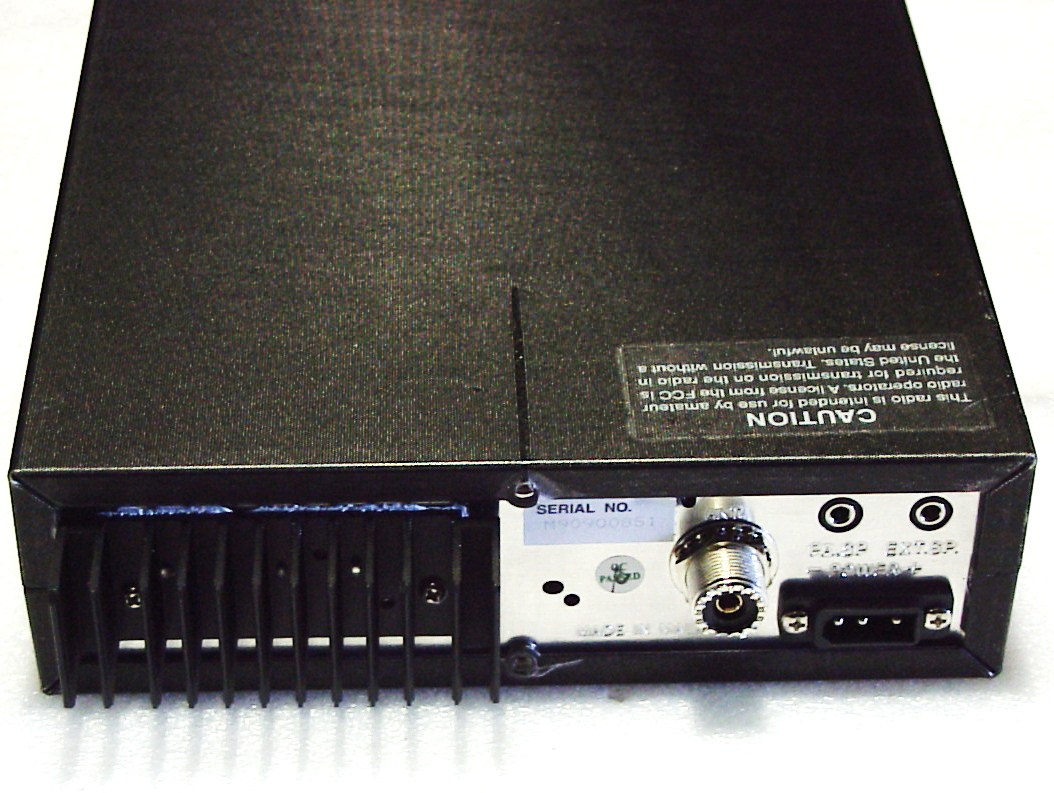

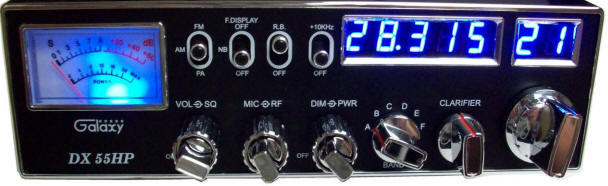

DX 55HP
AM/FM 10 Meter Radio
...Discontinued...

Download Manual


Features
  • Frequency Counter (with "ON/OFF" switch)
  • Variable Dimmer Control for Meter Lamp, Frequency Display and Channel Readout
  • Large Meter with Scales for Signal Strength and Power Output
  • Meter glows Red during Transmit
  • Roger Beep (with "ON/OFF" switch)
  • Noise Blanker/ Automatic Noise Limiter
  • +/-10 KHz Switch
  • Variable Power Output
  • 8 Watts Maximum Power Output - AM
  • 5.0 KHz Clarifier for Receive and Transmit




             Click for larger image



VIDEOS

Tune-up Reports and Custom work done here at BellsCB:
This is a playlist and has multiple videos
 (notice the   button to change to the next video)



Galaxy radios sometimes have a small scratch or ding that the factory covers with touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Galaxy radio might though and I cannot control it.

CB Microphone Wiring (Galaxy)

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca













 ... AM/FM 10 Meter Mobile...
...Discontinued...
  *** This Item has been Discontinued
         by the manufacturer and remains
         here for reference and support
         information only. ***
$199.50




Optional Accessories
  Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $39

RFX-95 Final. (perform a tune-up to the radio to increase power, audio and performance and add a completely new final section consisting of a high power MOSFET)
AM carrier 20 watts with 90+ watts peak power.
$189

RFX-150 FAN KIT Installed Install FOUR - 30 x 30 x 10mm Black Fans with a switch for on/off combined with the amp on/off switch. $69
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25
 Install an Echo board. (BACK or SIDE)
(wired internal to the radio with dual controls on the side or back to control speed and echo effects)
$65
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
SOLD OUT
  Install a Record/Playback Module 18 seconds (wired inside the radio with a switch on the side to record 18 seconds and to play it back) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Colors
Install Star-Bryte Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $169







Specifications
GENERAL
Channels 40 CH
Frequency Range

28.065 to 28.505 MHz

Frequency Control  Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance

 0.005%

Frequency Stability  0.001%

Operating Temperature Range

-30 C to +50 C.
Microphone Plug-in dynamic; with push-to-talk switch and coiled cord.
Input Voltage



13.8V DC nominal, 15.9V max, 11.7V min. (Positive or negative ground).
Transmit: AM full mod., 4.5A.
Receiver: Squelched, 0.3A.
Maximum Audio output, 0.7A
Size 2-3/8 (H) x 7-7/8 (W) x 9-1/4 (D).
Weight 5 bs.
Antenna Connector

UHF, SO239

Meter (2-in-1) Illuminated; indicates relative output power and received signal strength.
TRANSMITTER
Power output AM/FM, HIGH 10 watts, LOW 2 watts
Modulation High-and low-level Class B, Amplitude
Modulation: AM.
Variable capacitance Frequency Modulation: FM.
Spurious Emissions

60 dB

Frequency Response AM and FM: 450 to 2500 Hz.
Output Impedance

50 ohms, unbalanced

Output Indicators Meter shows relative RF output power.
Transmit LED glows red when transmitter is
in operation.

RECEIVER

Sensitivity

AM: 1.0 mV for 10 dB (S+N)/N at greater than -watt of audio output.
FM: 1.0
mV for 20 dB (S+N)/N at greater than -watt of audio output.

Selectivity AM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz.
Image Rejection  More than 65 dB.
IF Frequency AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF

Adjacent-Channel Rejection

60 dB AM
RF Gain Control

45 dB adjustable for optimum signal

reception.

Automatic Gain Control (AGC)

Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt's.

Squelch

Adjustable; threshold less than 0.5 mV.

ANL

  Switchable

Noise Blanker RF type
Audio Output Power 4 watts into 8 ohms.
Frequency Response 300 to 2800 Hz.
Built-in Speaker 8 ohms, round.
External Speaker

 (Not Supplied) 8 ohms; disables internal speaker when connected.
