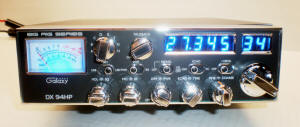

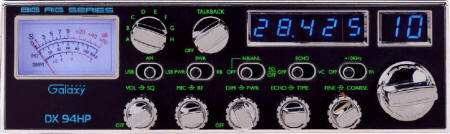

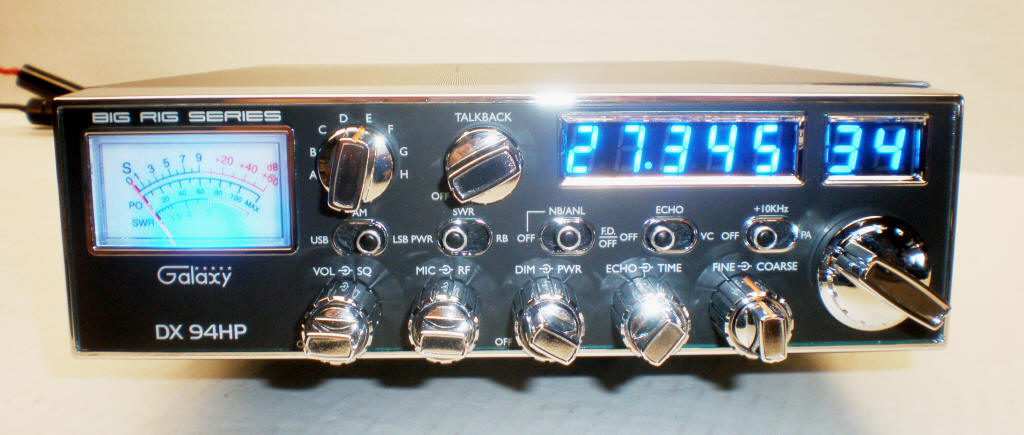

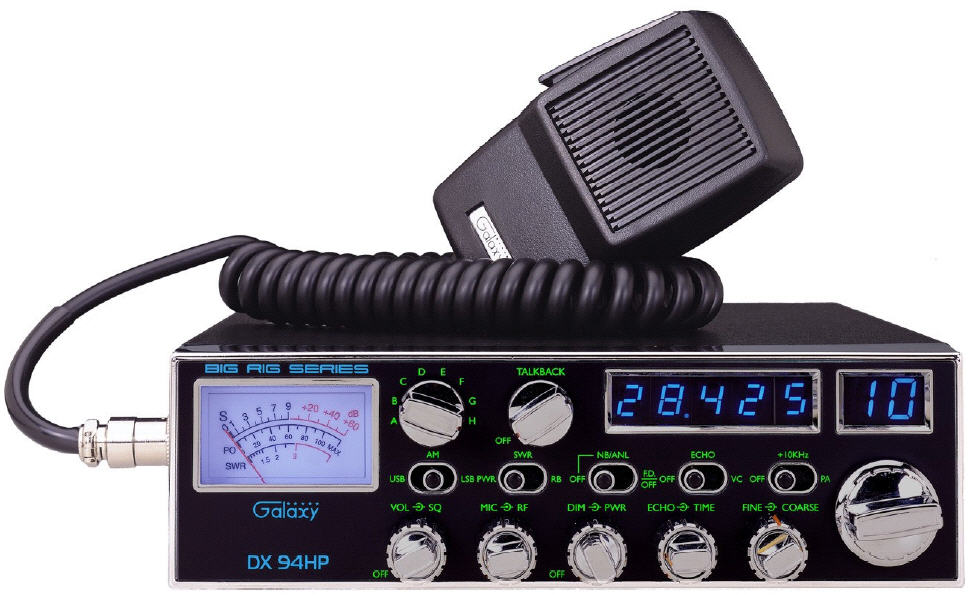

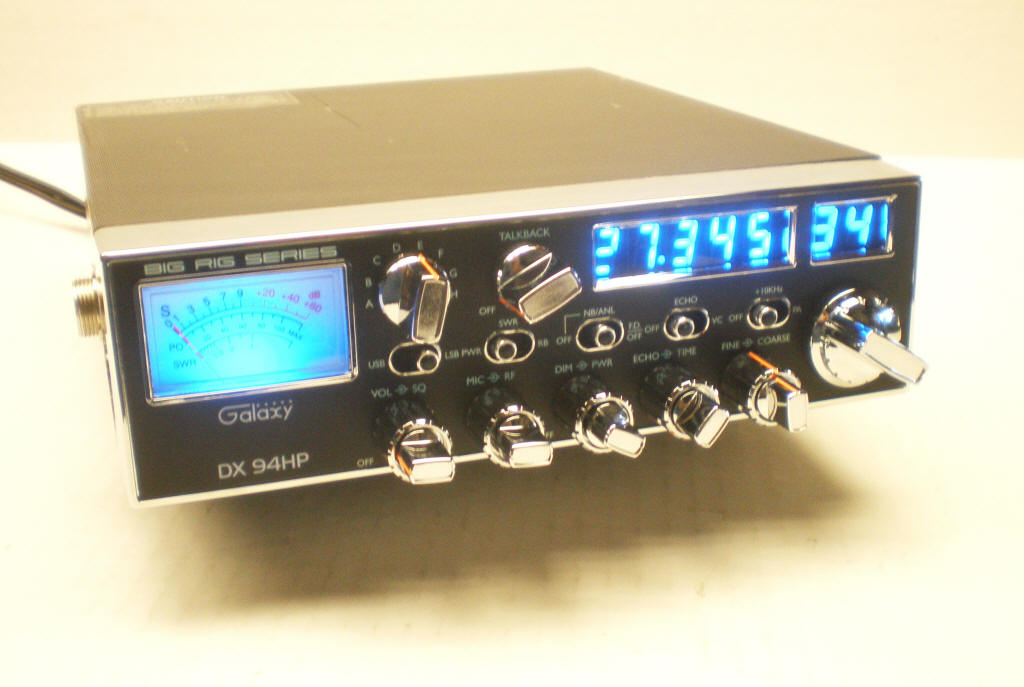

DX 94 HP
High Power AM / SSB
10 Meter Radio

On Sale Now !!!

Download Manual

Features
  • 100 watt maximum power output from four IRF520 MOSFETs
  • Maximum current is 25 amps
  • Heavy-duty DC power cord

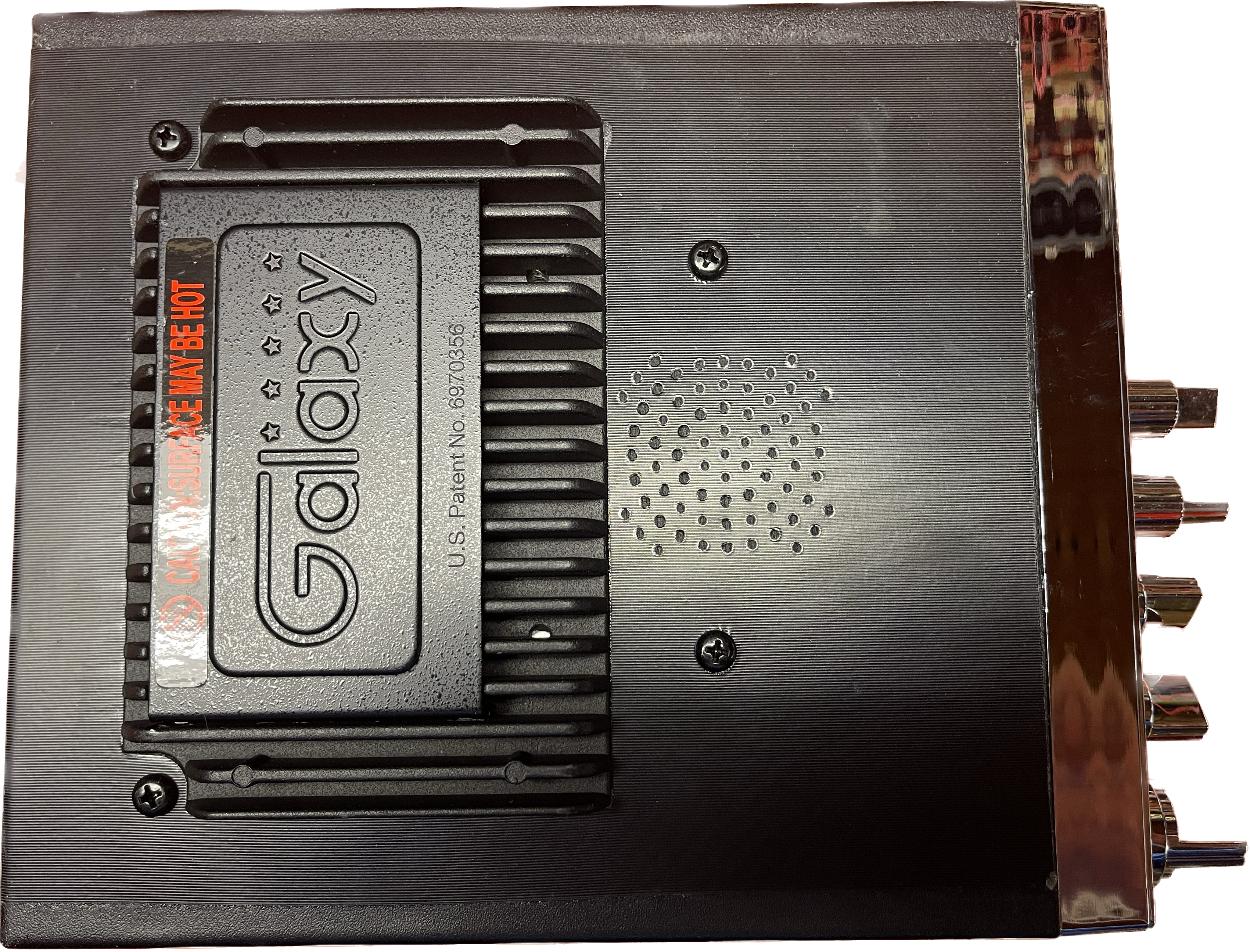

  • Low profile bottom heatsink
  • Blue LEDs for frequency and channel readouts
  • Dual blue LEDs light our signature large meter
  • StarLite faceplate (all printing is backlit)
  • Meter scales indicating power output,
  • SWR and incoming signal strength

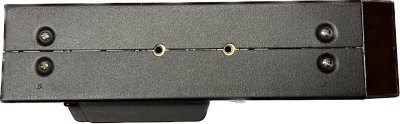

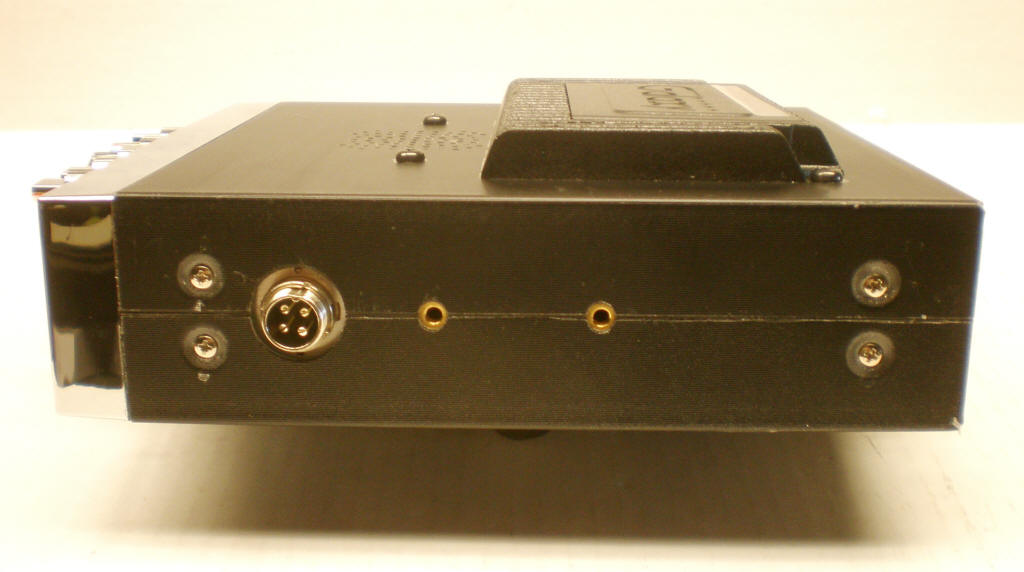

  • Side mic jack
  • AM/USB/LSB modes, but no FM
  • Variable power output control
  • Variable receive gain control
  • Variable dimmer control for LEDs, meter lamp and faceplate lettering
  • Switch to turn off the frequency digits
  • Variable Talkback circuit with on/off switch
  • Echo and Voice Changer like the old DX99V, but no Robot
  • Echo/Voice Changer controls on the front panel, not inside the radio
  • Roger Beep with on/off switch
  • Automatic SWR circuit
  • Standard clarifier circuit - no on/off switch
  • TWO YEAR GALAXY WARRANTY

This is one of those radios that SSB frequency accuracy drifts with temperature changes. We cannot change this, it has been that way with these radios for many years. If you can't live with it, don't buy this radio. Thank you.



VIDEOS

Tune-up Reports and Custom work done here at BellsCB:
This is a playlist and has multiple videos
 (notice the   button to change to the next video)





The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.



CB Microphone Wiring (Galaxy)



Galaxy radios sometimes have a small scratch or ding that the factory covers with touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Galaxy radio might though and I cannot control it.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

 ...High Power Transceiver...
On Sale Now !!!
Regular_Price_479
$469.50

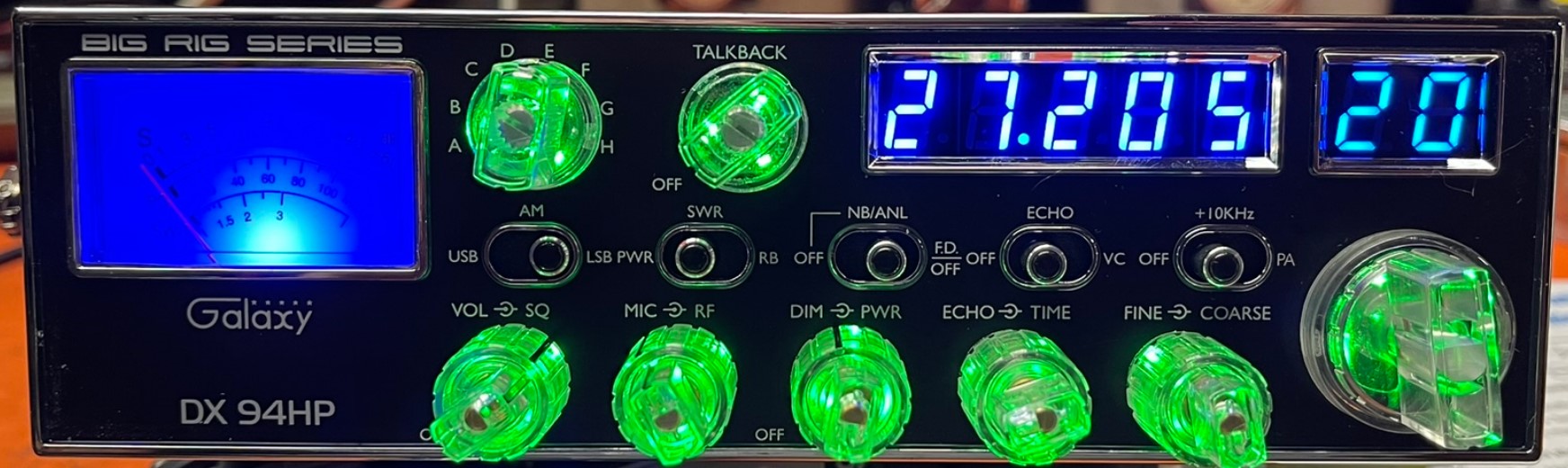

Colors Install Nitro Knobs with dimmer control integration circuit built so it dims with the factory adjustment. 8 Knob set parts and labor. $144
Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $49
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25

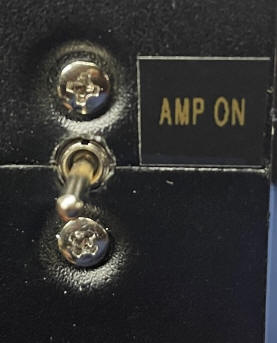

 Install a switch in the back to turn off the 100w amp. (wired behind the radio with a switch for on/off) AM/FM:.25~2w, SSB PEP:5~25w, Peak AM 2~20w $15
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
SOLD OUT
  Install a Record/Playback Module 18 seconds (wired inside the radio with a switch on the side to record 18 seconds and to play it back) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch on the side to trigger any 18 second sound byte you key)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Colors

Install Star-Bryte Knobs with dimmer control.  8 Knob set parts and labor.

$199



Tuned up values on these watt meters
Dosy Bird RMS * Bird 43P
AM 3 ~ 30w 3 ~ 30w 3 ~ 30w
PEAK AM 12 ~ 75w 4 ~ 31w 46 ~ 125w
SSB 40~ 90w 23 ~ 58w 65 ~ 120w


Tuned up values on these watt meters
With optional
AMP
switch OFF
Dosy Bird RMS * Bird 43P
AM .02 ~ 2w .02 ~ 2w .02 ~ 2w
PEAK AM 1 ~ 10w 1 ~ 4w 7 ~ 25w
SSB 2 ~ 8w 2 ~ 4w 6 ~ 18w
*  The most informative and the one we use.

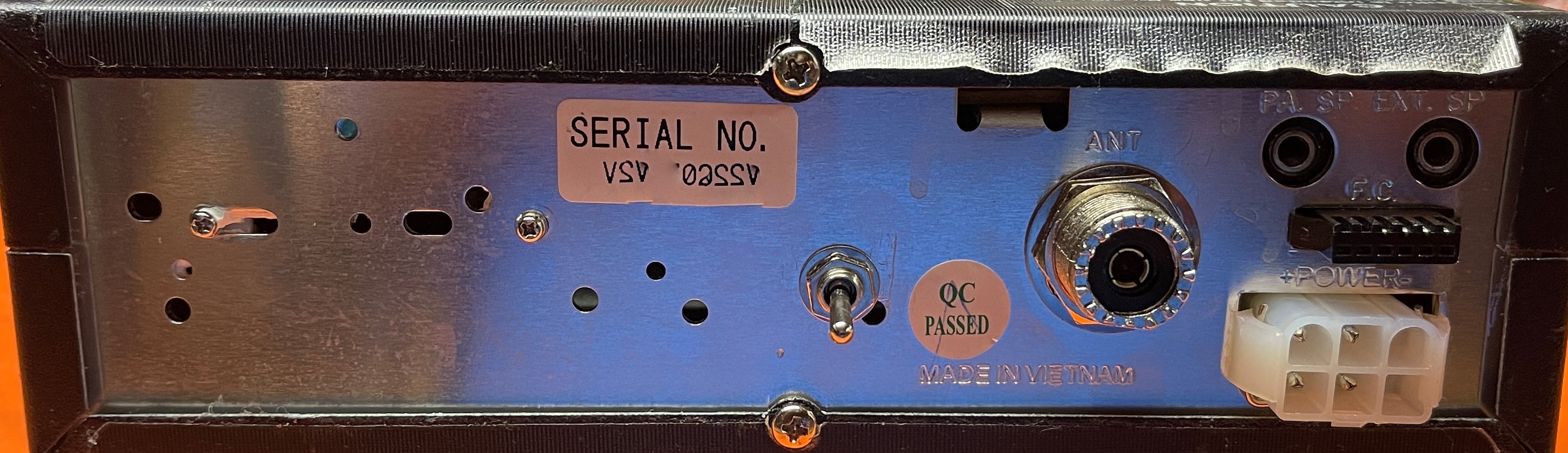

SO-239As many of you may know;  Ranger, Galaxy and General radios have all had some poor tolerance coax connectors this last year (SO-239 on the back of the radio) . You have to wiggle the coax just right to get a good grab on the threads of the connector. They are too far “out of tolerance” and we can no longer accept it.       So we have started changing the coax connectors ourselves to a much higher quality SO-239 that will fit your coax nice and tight.  This has affected our selling price ($10) but we think you will agree that it is worth it.







GENERAL
Frequency Range  28.315 ~ 28.755 MHz
Emission  AM/USB/LSB
Frequency Control  Phase-Lock-Loop (PLL) Synthesizer
Frequency Stability  0.001%
Temperature Range  -30°C to +50°C
Antenna Impedance  50 Ohms
Antenna Connectors  Standard SO-239 type
Input Voltage  13.8V DC
Size  7 3/4" (W) x 2 7/8" (H) x 10 1/4" (D)
Weight  6 lb.
Shipping Weight  12 lb
TRANSMITTER
RF Power Output OEM Specs:
     AM: 5W~40W Peak 100W
     SSB: 100W PEP
Actual out of the Box average:
     AM: 8W~30W  Peak 90W
     SSB: 80W PEP
After a tune-up it is:
     AM: 3W~30W Peak 130W
     SSB: 100W PEP
Transmit Current  AM: 14 Amps
 SSB: 25 Amps
Spurious Emission  -50 dB
Unwanted Sideband  -50 dB
Audio Distortion  10%
Frequency Response  300 to 2500Hz
Microphone  Dynamic
Clarifier Range  Coarse: ± 6.0KHz,
 Fine: ± 1.0KHz
RECEIVER
Sensitivity for 10 dB (S+N)/N  AM: < 0.5 μV
 USB/LSB: < 0.25 μV
Squelch Sensitivity  < 0.5 uV
Selectivity  -55 dB
Image Rejection  -50 dB
AGC Figure of Merit  100 mV for 10dB Change in Audio Output
Audio Power Output  2.5W @ 10% Distortion
Audio Response  300 to 2500 Hz
