10 Meter Mobile Radios

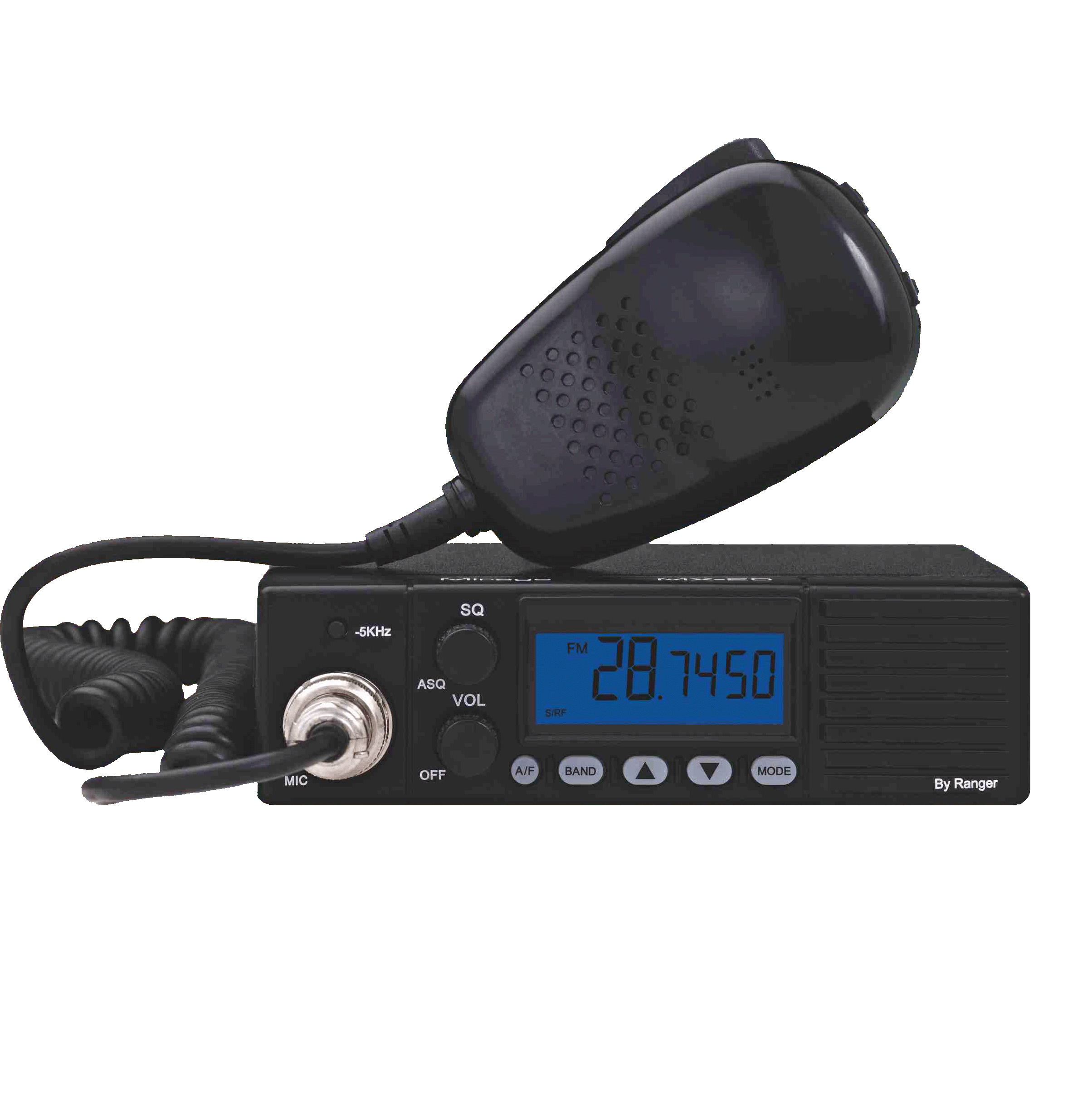

Mirage MX-25
Click image for larger view

Mirage
MX-25HP
AM 10M Mobile Radio



A new radio from the folks at Ranger Communications.



  • 7 color channel and Frequency Display,
  • 3 bands
  • 10 meter
  • Menu driven
  • Varable Power
  • Auto squelch
  • Very Good Receiver.


Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Ranger might though and I cannot control it.
















Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca


... AM 10 Meter Mobile ... $144.50

Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $39

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29

 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39

Sound Byte link

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link

 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications. To be posted on YouTube, Subscribe to my YouTube Channel for notice. $19



 General
 Frequency Range

28.145 - 29.655 MHz

 Modes

AM

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 30 C to + 50 C

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7.25" x 9"x 2.25"

 Weight

3.5 Lbs.

 Shipping Weight

6 Lbs.

 Transmitter



 RF Power Output

AM: 10W
25W PEAK

 Spurious Emission

Better than -50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Noise Cancelling


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 V

 Squelch Sensitivity

0.5 V

 Image Rejection

- 50 dB

 Hum and Noise

- 40 dB

 Audio Output Power

2.5W @ 10% THD

 AGC Figure of Merit

 80dB for 50mV for 10dB change in audio

 Audio Response

300 to 2500 Hz



The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT
sound great  with a stock mic on it  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.

If you place an order from outside the continental USA, we will calculate your actual shipping and send you a PayPal payment request.  We do NOT export Antennas or Base station radios.
