10 Meter Mobile Radios


Click image for larger view

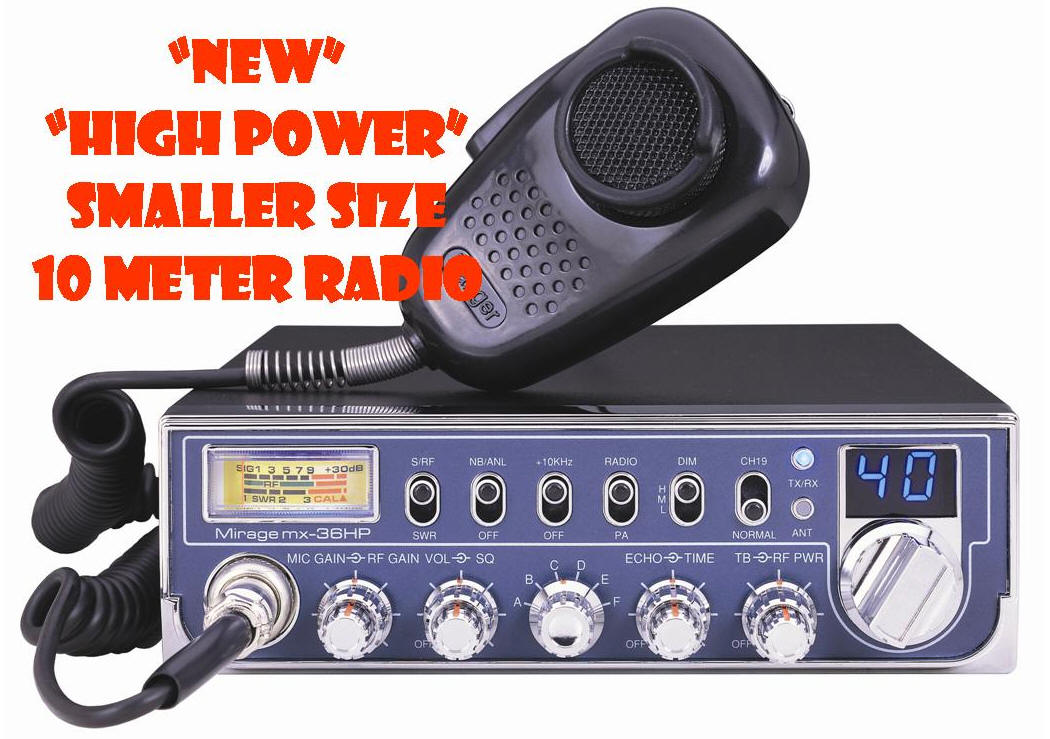

Mirage
MX-36HP
AM 10M Mobile Radio



A new radio from the folks at Ranger Communications.  The MX-36HP is a DX radio that will now fit in the Cobra 29LTD size holes. Very nice for those with a spot just right for a 29LTD (many standard holes in tractors are made for  the Cobra 29 size).





  • SMALL chassis = 7.25" x 9"x 2.25"
  • AM Only
  • Dual Finals
  • Front Mic Jack
  • Blue Channel LED's
  • Variable RF Power
  • Dimmer Switch (hi, med, low)
  • Ranger Noise Canceling Microphone
  • Dual Echo & talk back
  • Antenna Warning LED
  • SWR Meter
  • 10KHz Switch
  • PA



Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Ranger might though and I cannot control it.
















Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

SOLD OUT
... AM 10 Meter Mobile ... $199.50

Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $39

Fan Options


SOLD OUT
 RFX-85 Final. (perform a tune-up to radio to increase power, audio and performance and replace the bipolar transistor final with a completely new final section consisting of even higher power MOSFETs)
AM carrier 15 watts and 75+ watts peak power.
$119
or
$159
or
$165
SOLD OUT
 RFX-150 Final. (perform a tune-up to the radio.  Increase power, audio and performance and a completely new final section consisting of even higher power MOSFETs) AM carrier 35 watts and 125+ watts peak power. $185

RFX-150 FAN KIT Installed Install FOUR - 30 x 30 x 10mm Black Fans with a switch for on/off combined with the amp on/off switch. $59
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and lower noise)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25

Palomar SL-41 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$49

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29

 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39

Sound Byte link

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link

 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications demo. Enter your Gmail so we can send a share to our Google drive for you to view. We upload twice monthly. $19



 General
 Frequency Range

28.145 - 29.655 MHz

 Modes

AM

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 30 C to + 50 C

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7.25" x 9"x 2.25"

 Weight

3.5 Lbs.

 Shipping Weight

6 Lbs.

 Transmitter



 RF Power Output

AM: 10W
25W PEAK

 Spurious Emission

Better than -50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Noise Cancelling


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 V

 Squelch Sensitivity

0.5 V

 Image Rejection

- 50 dB

 Hum and Noise

- 40 dB

 Audio Output Power

2.5W @ 10% THD

 AGC Figure of Merit

 80dB for 50mV for 10dB change in audio

 Audio Response

300 to 2500 Hz



The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT
sound great  with a stock mic on it  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.
