Ranger Logo 10 Meter Mobile Radio

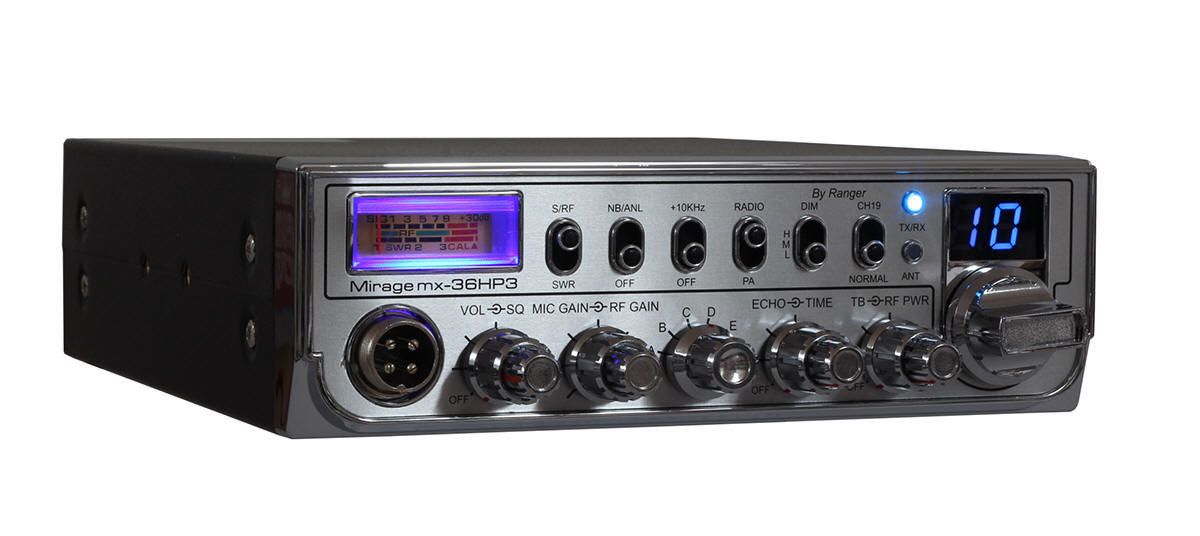

Ranger MX-36HP3


Click image for larger view

Mirage
MX-36HP3
AM 10M Mobile Radio




The MX-36HP3 is a DX radio that will fit in the Cobra 29LTD size holes. Very nice for those with a spot just right for a 29LTD (many standard holes in tractors are made for  the Cobra 29 size).

• Classic Chrome Design
• 7 ŧ” Size Chassis (29 Size Chassis)
• 50 Watts PEP Output Power
• Variable RF Power Control
• S/RF/SWR Front Panel Meter
• 4pin Front Panel Mic Jack
• Original Mirage Receive Circuit
• Real Channel Selector Control

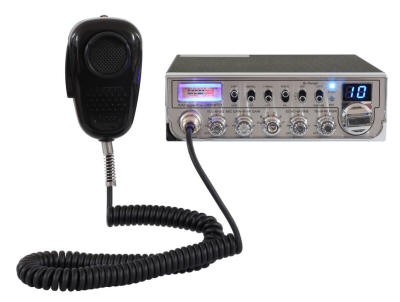

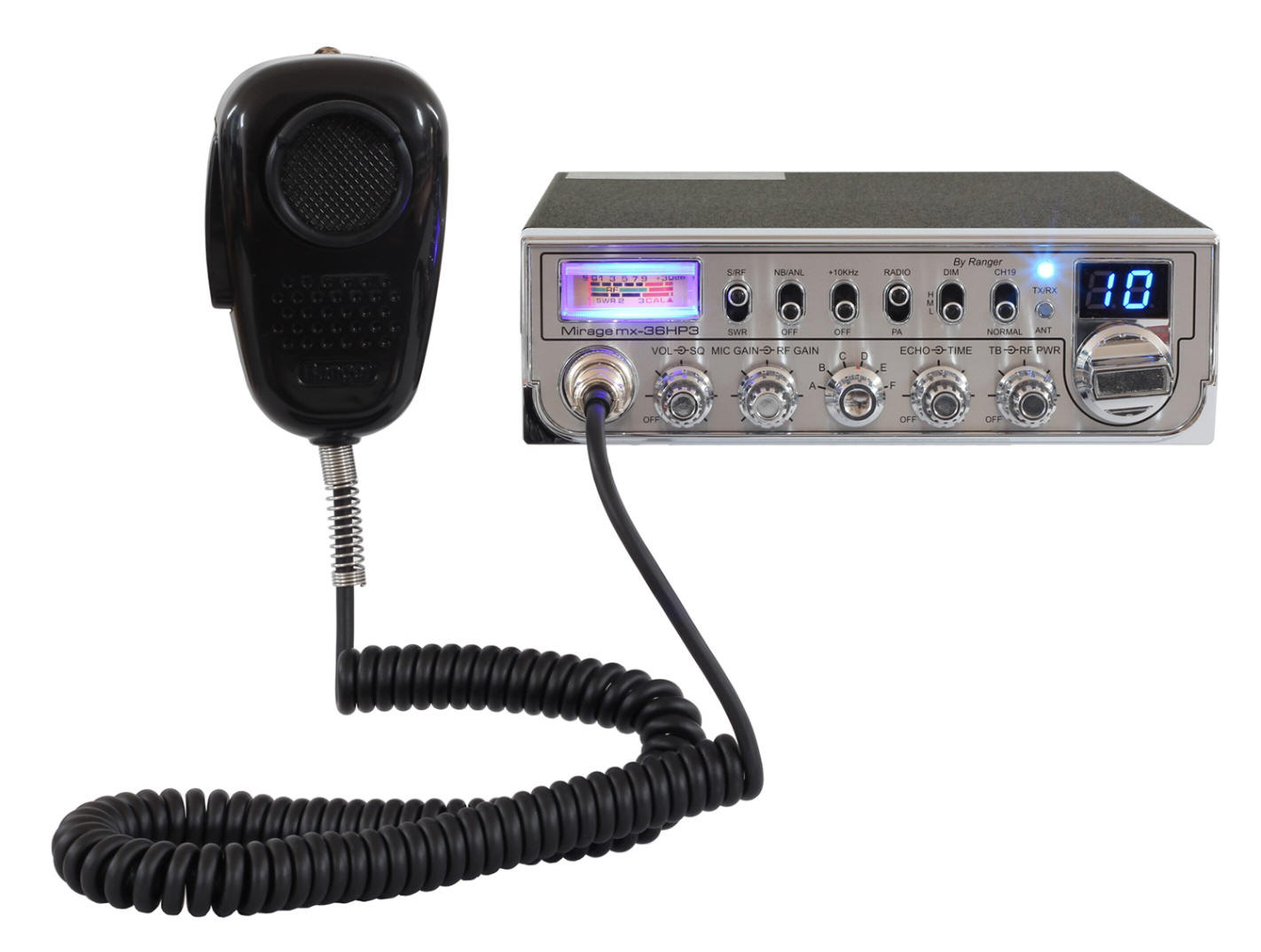

• SRA-198 Noise Cancelling Mic Included
• Variable Echo and Talk Back Controls
• 3 Position Dimmer Switch
• Cool Blue LED Channel Display

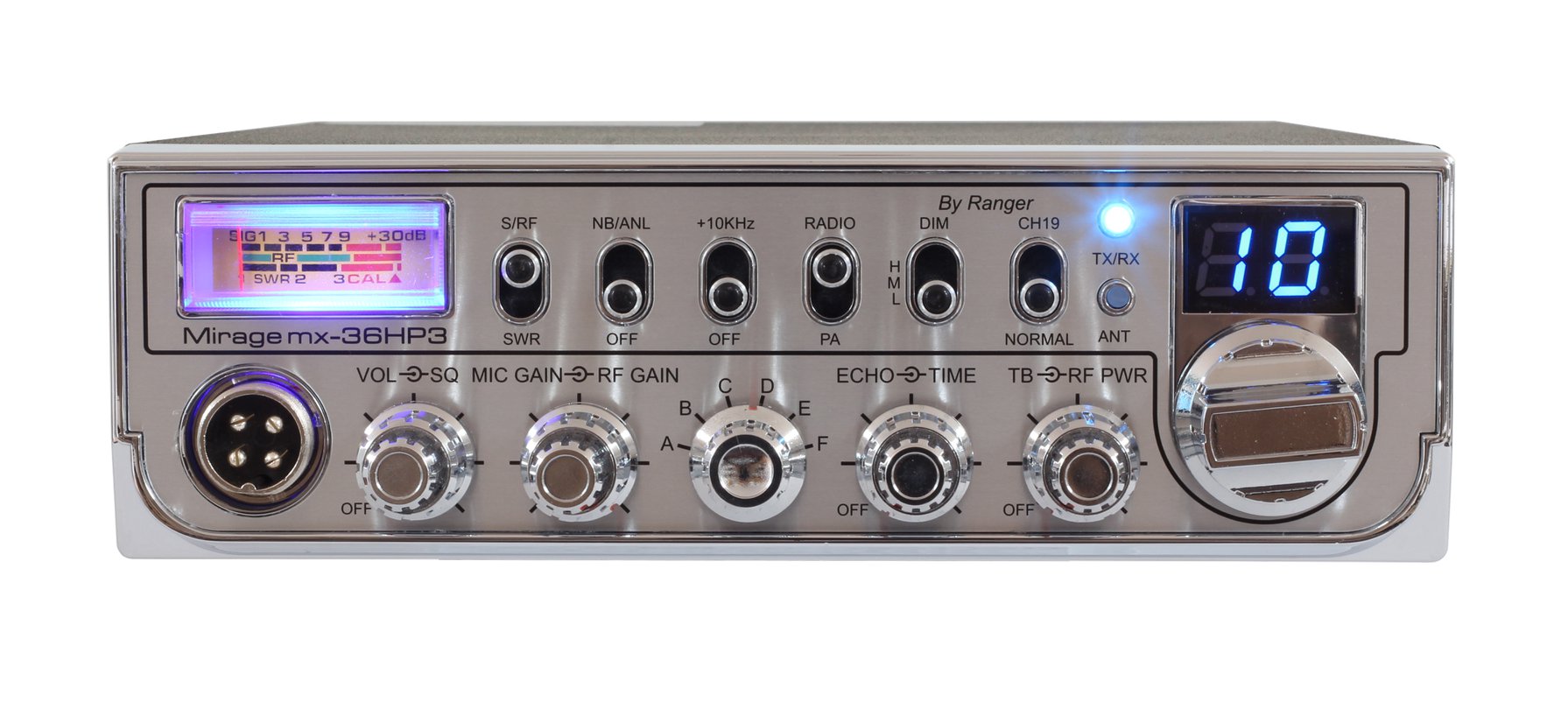

Mirage MX-36HP3

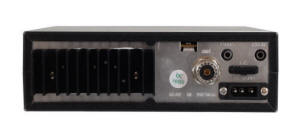

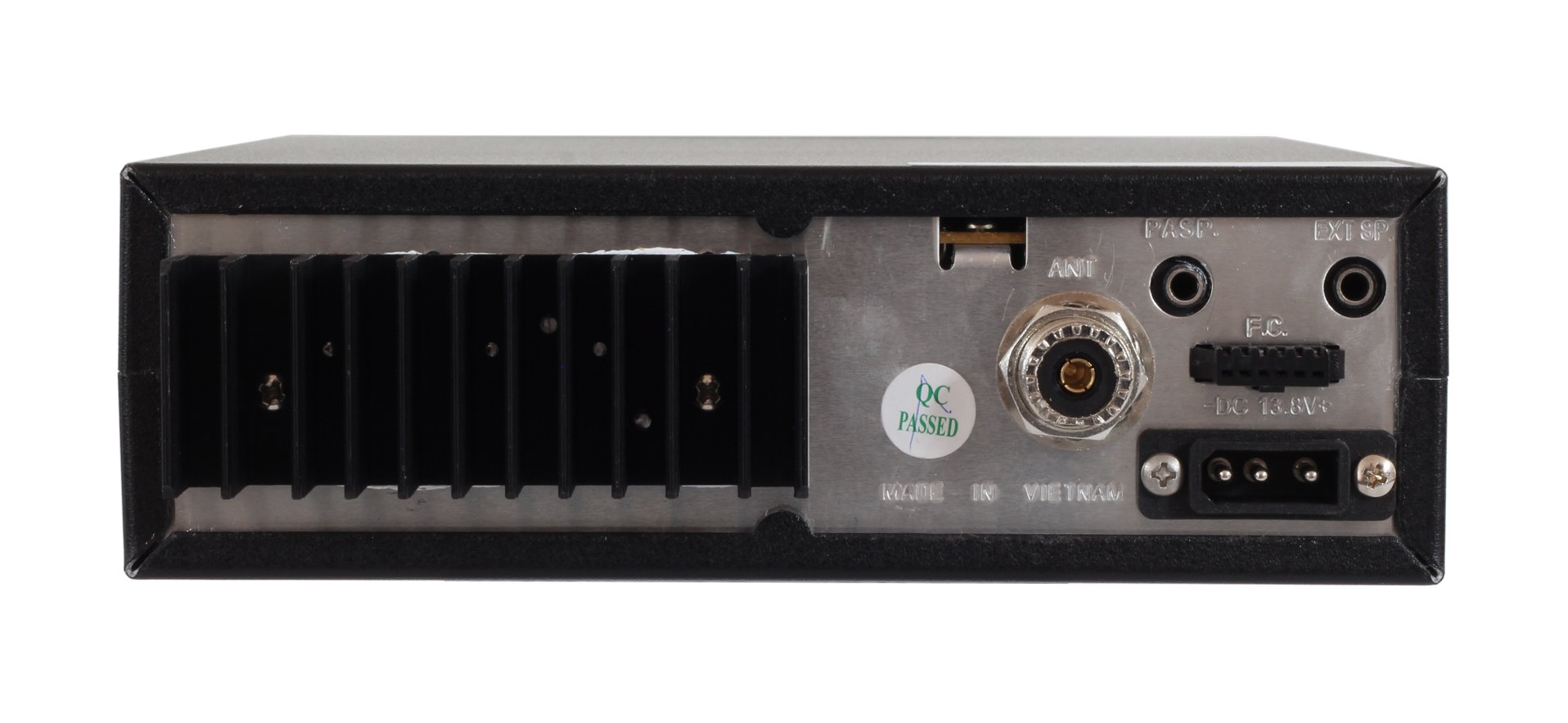

Ranger MX-36HP3

Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Ranger might though and I cannot control it.













CB Microphone Wiring (Galaxy)


The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

Tuned and Converted?
... AM 10 Meter Mobile ...
$239

Optional Accessories
Select Above  Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage $39
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25
RK-56  Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
636L Mic  Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
RD104E  Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
SOLD OUT
  Install a Record/Playback Module 120 seconds (wired inside the radio with  two pushbuttons on the side to record 120 seconds and to play it back) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
Colors
Install Star-Bryte Knobs with dimmer control. Includes a Knob set , parts and labor. $172
small speaker  Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
Large Speaker  Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Colors
StarbryteInstall Star-Bryte Knobs with dimmer control circuit  integrated into the radios dimmer. Includes a 6 Knob set , parts and labor. $202
Colors
Rings OnlyInstall Star-Bryte Rings behind the factory knobs with dimmer control circuit  integrated into the radios dimmer. Includes a 6 LED Rings , parts and labor. $154
Chrome covers Exchange the top and bottom covers to Chrome Covers. $32
 Exchange the top and bottom covers to Diamond Plate Covers. $22



Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 1w ~ 8w 1w ~ 8w 1w ~ 8w
Peak 8w ~ 26w 2w ~ 10w 25w ~ 50w
* The most informative meter and the one we use. 5-16-24



 General
 Frequency Range

28.145 - 29.655 MHz

 Modes

AM

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 30 ēC to + 50 ēC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7-3/8(W) x 8-3/4(D)x 2-1/4 (H)

 Weight

3.5 Lbs.

 Shipping Weight

6 Lbs.

 Transmitter



 RF Power Output

AM: 10W
25W PEAK

 Spurious Emission

Better than -50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 ĩV

 Squelch Sensitivity

0.5 ĩV

 Image Rejection

- 50 dB

 Audio Response

300 to 2500 Hz
