Ranger Logo 10 Meter Mobile Radio

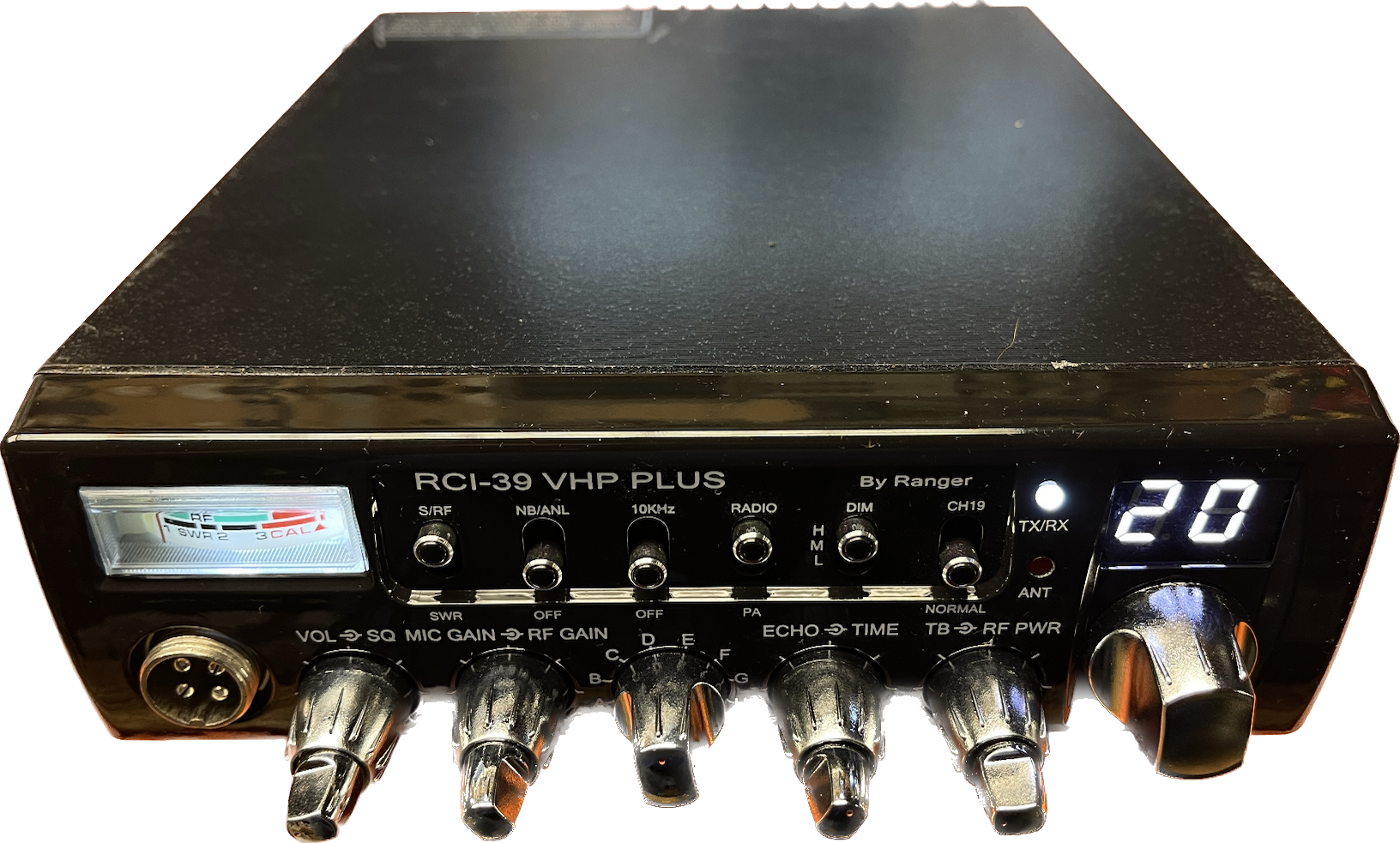

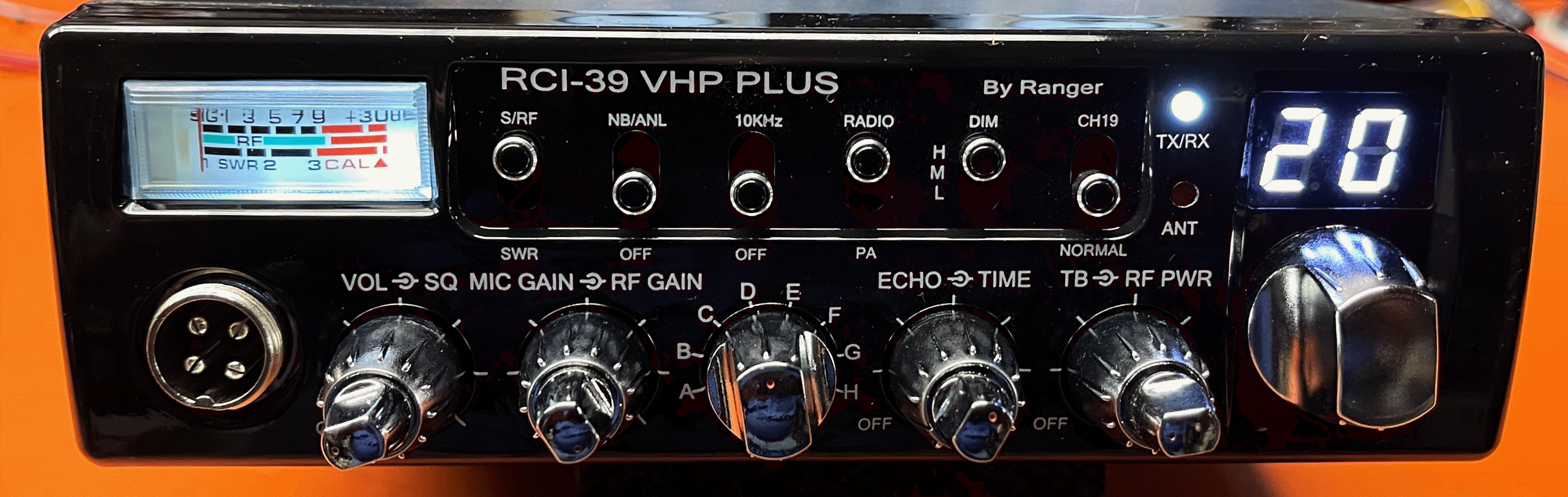

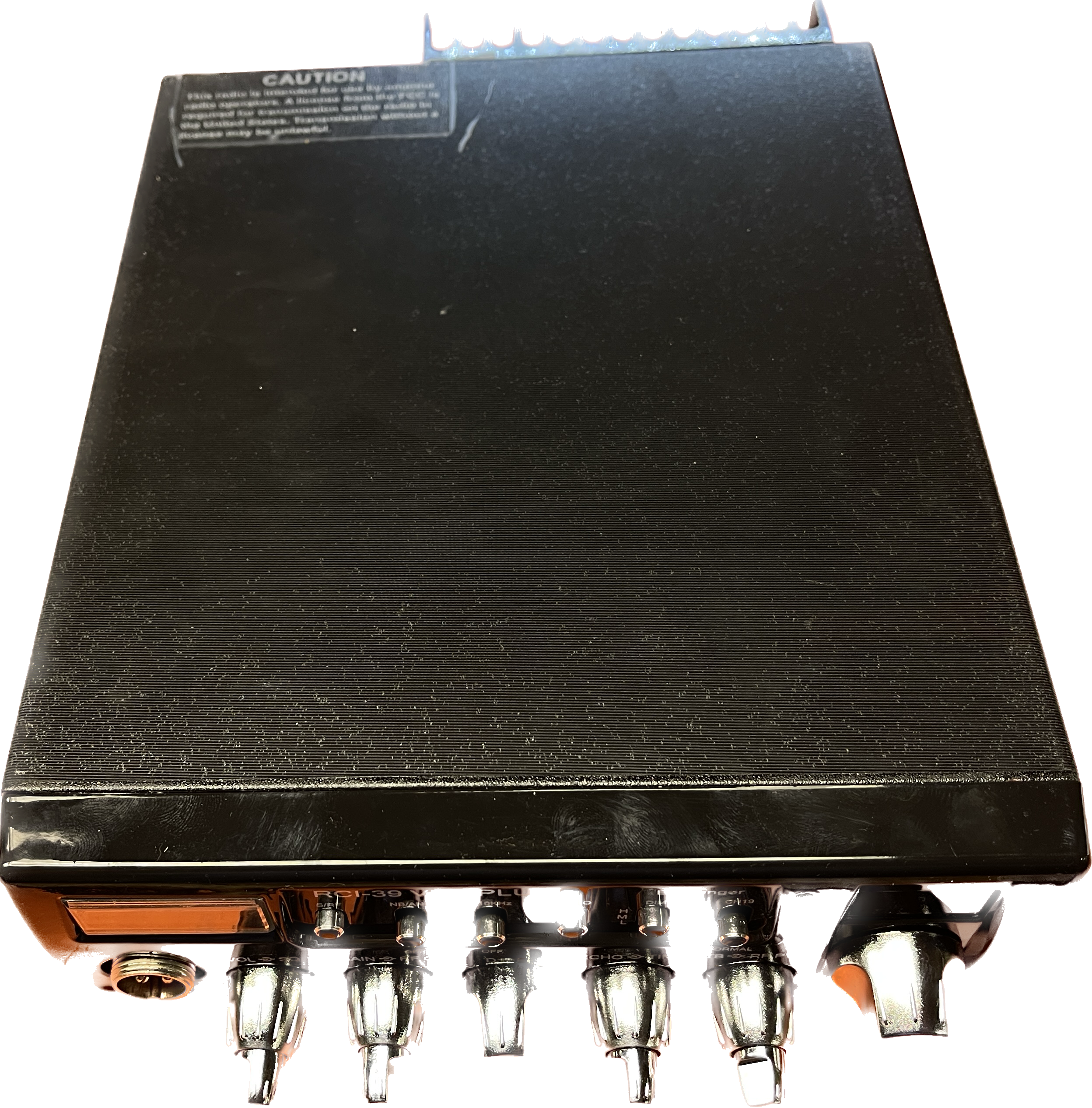

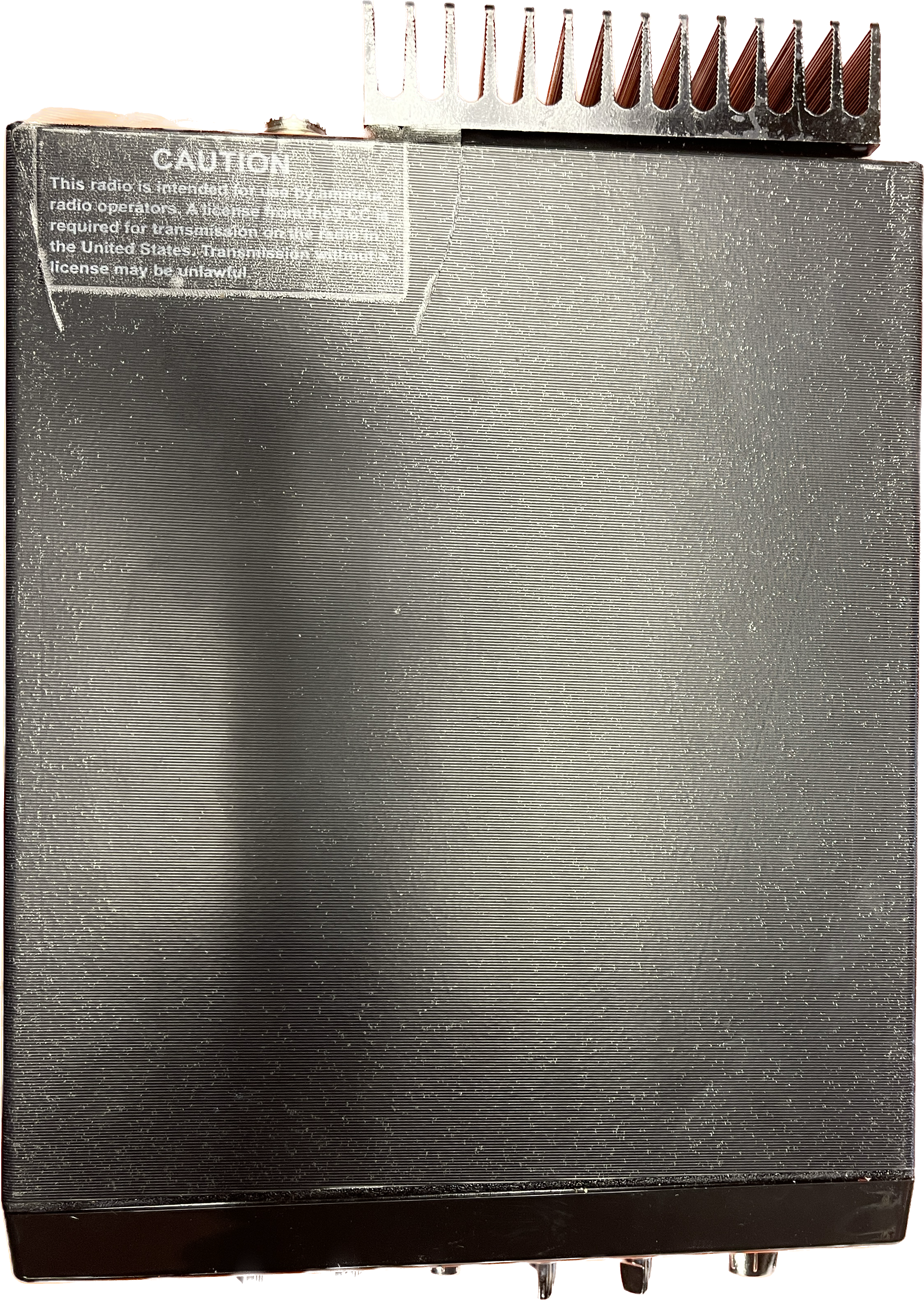

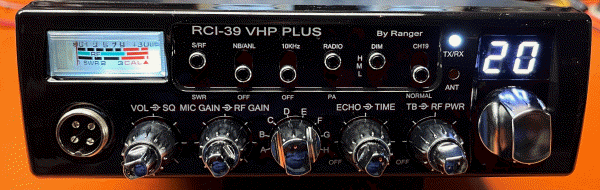

Ranger RCI-39VHP Plus

Click image for larger view

Ranger
RCI-39VHP Plus
AM 10M Mobile Radio





New February 2021
Smaller size chassis the same size as a Cobra 29 Cb radio. This radio packs a lot of power in a smaller size radio with 80+ watts
.  So this is a DX radio that will now fit in the Cobra 29LTD size holes. Very nice for those with a spot just right for a 29LTD (many standard holes in tractors are made for  the Cobra 29 size).

  • Cobra 29 Size Chassis.

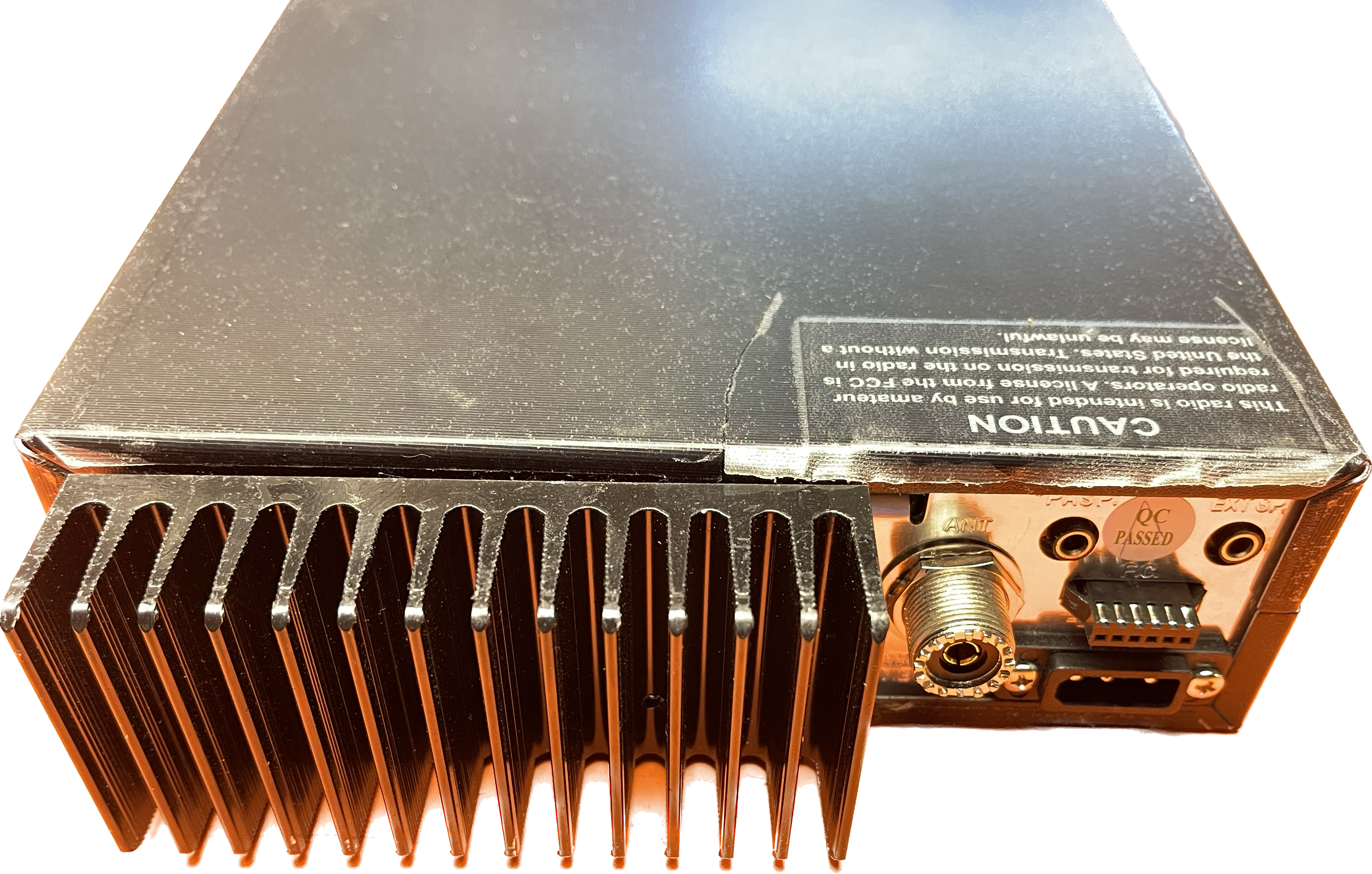

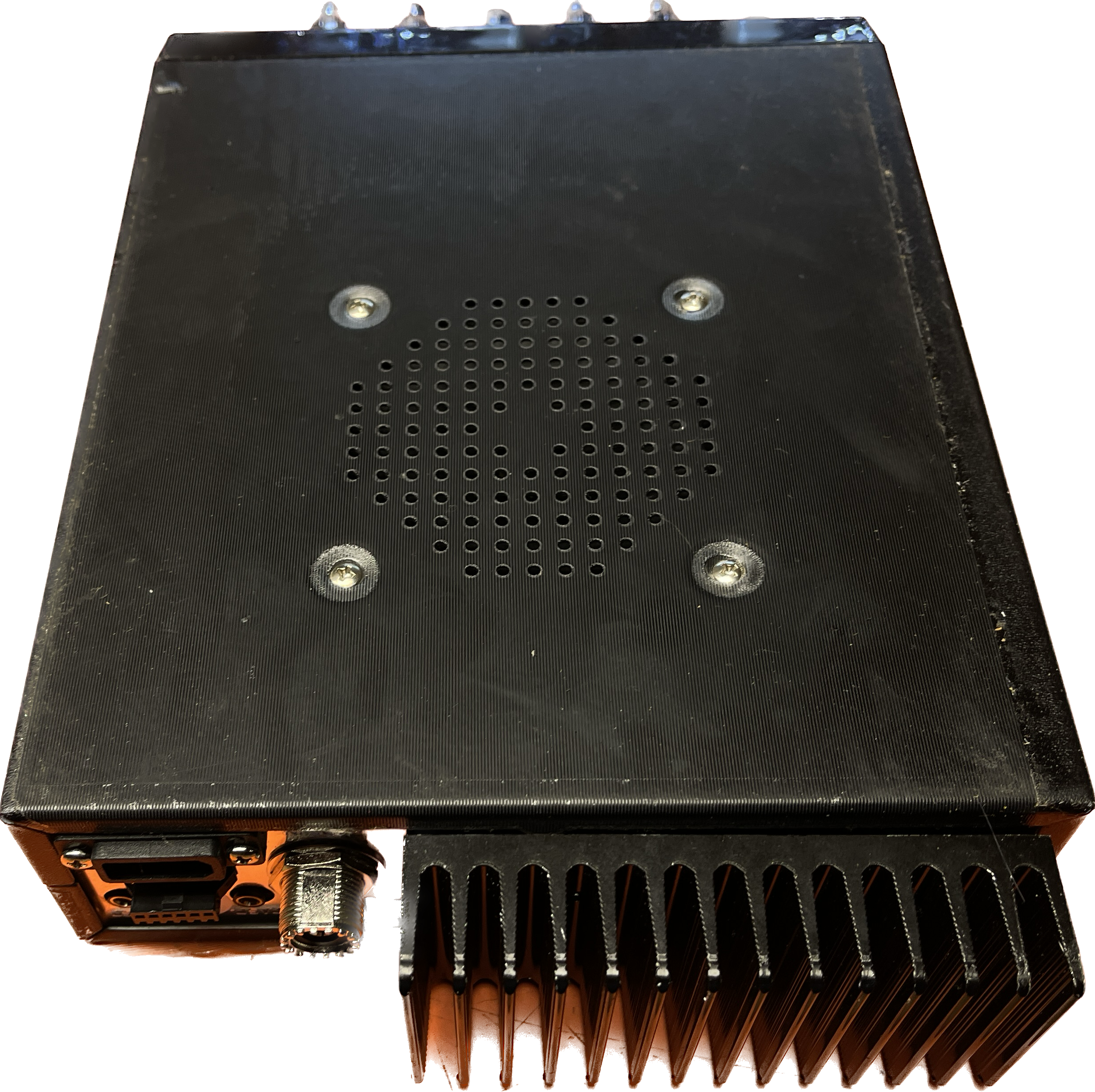

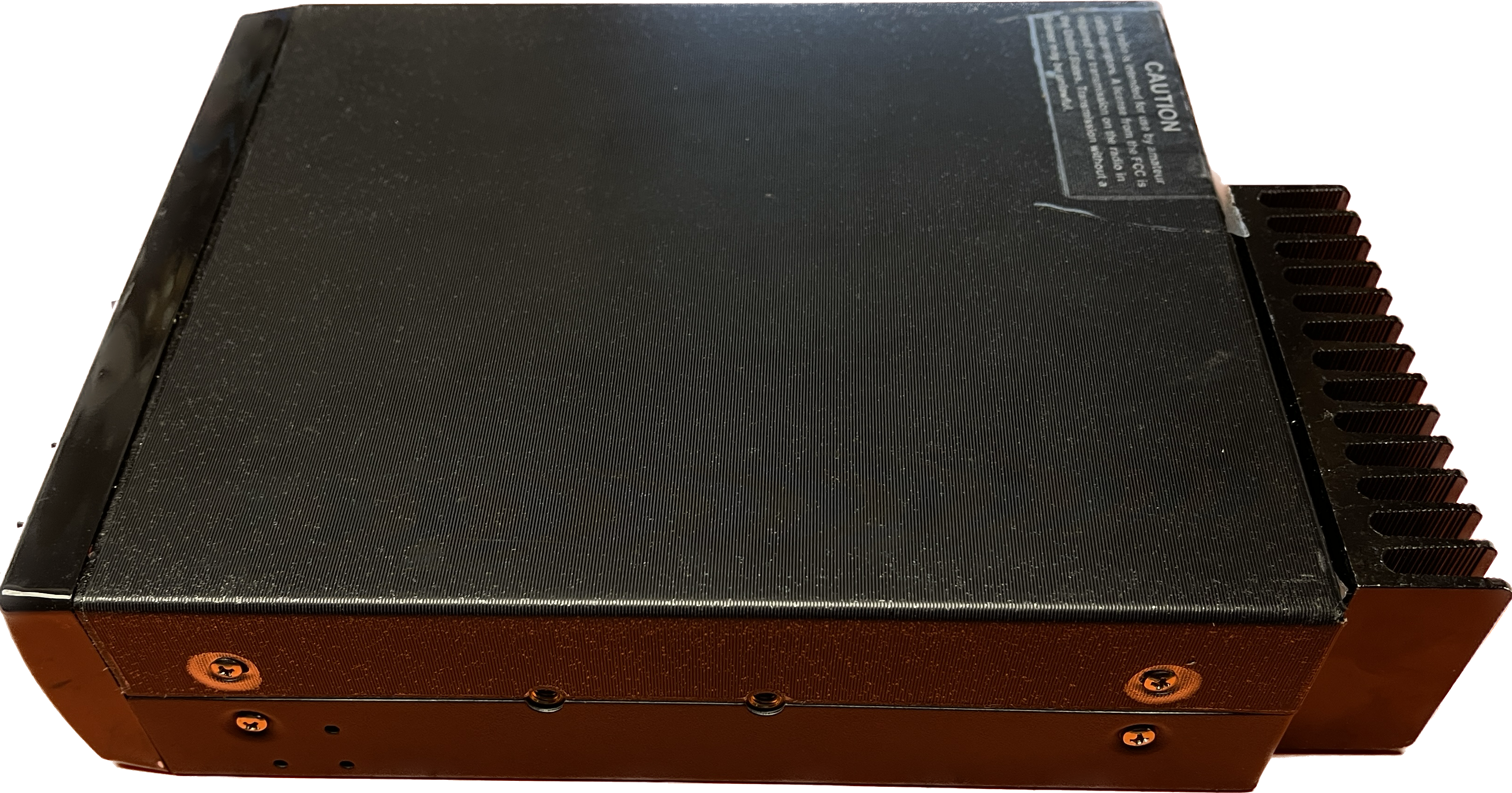

  • Heavy-Duty Back Panel Heatsink, New Design
  • Frequency Range:
    • 28.000 ~ 29.699 MHz (10 Meter Amateur Band)
  • RF Output Power:
    • 80+ Watts Peak
  • New BLACK Front Panel
  • NEW 8 Bands (2 more bands)
  • 4pin Front Panel Mic Jack.
  • New white LED Channel Display
  • Real Channel Selector Control

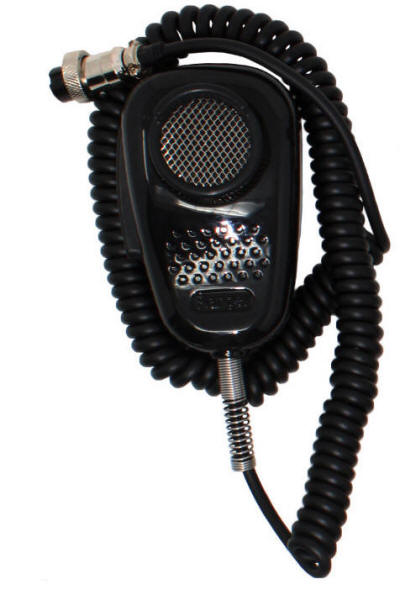

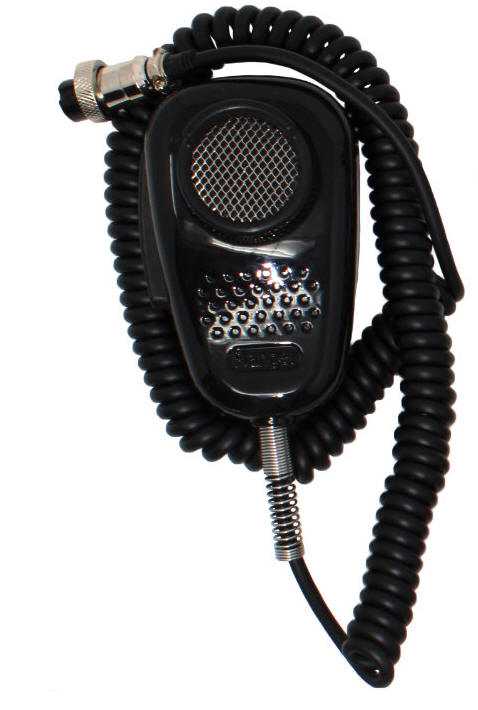

  • SRA-198 Chrome Noise Cancelling Mic Included
    This is a great mic, no need to upgrade.
  • Variable Echo and Talk Back
  • 3 Stage Dimmer Switch
  • Operation Mode:
    • AM / PA

If you are looking for what changed with the
PLUS version it is these three things:

  • Face Bezel is now Black
  • The RF meter, RX/TX light and the channel display are white.
  • 2 extra bands of 40 channels.

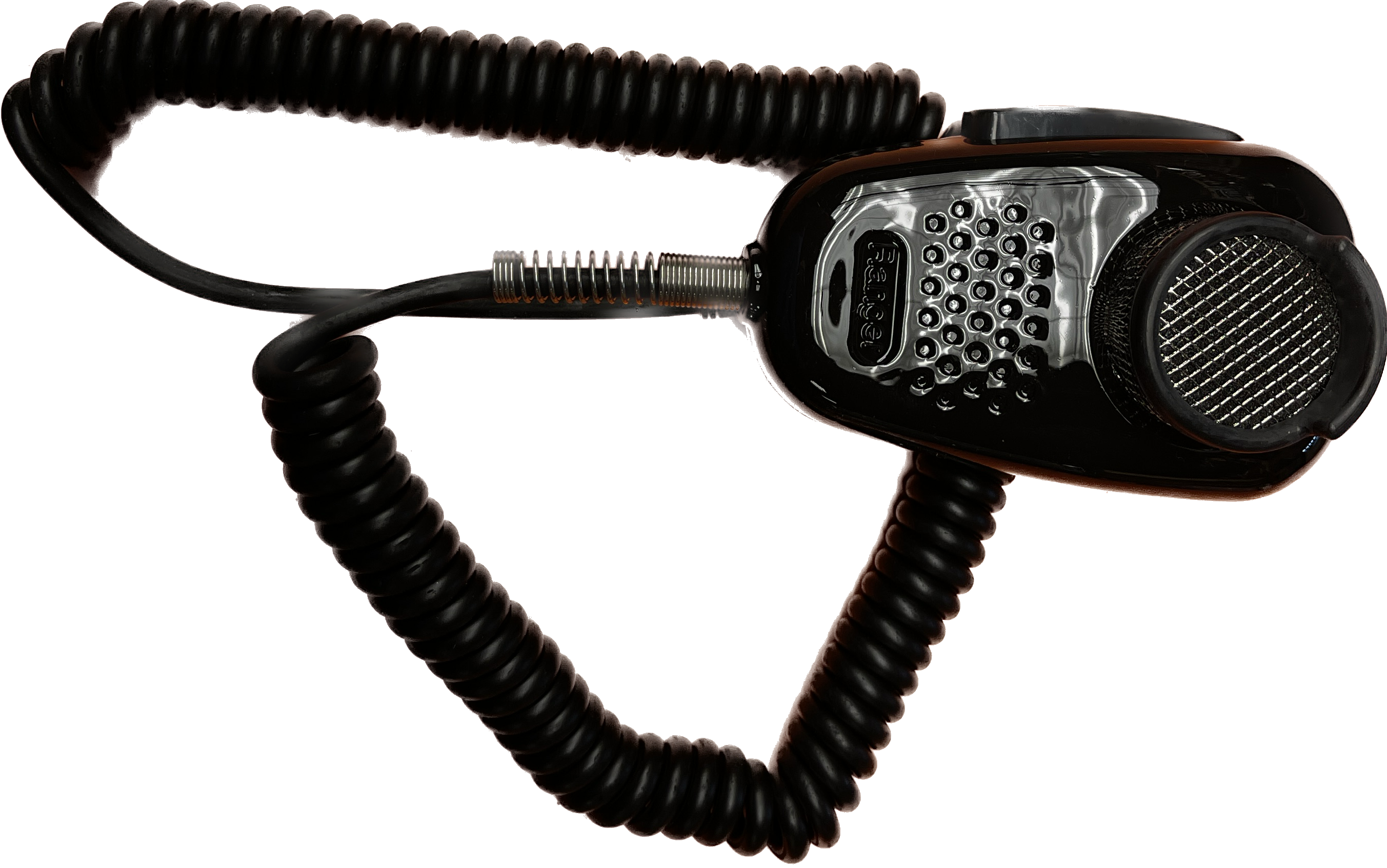

 SRA-198 Mic
FREE
SRA-98 Microphone
























 CB Microphone Wiring (Galaxy)

Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Ranger might though and I cannot control it.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

Tuned and Converted?
... AM 10 Meter Mobile ...
$359

Optional Accessories
Select above  Tune-up and frequency conversion. Tune-up, Alignment and expanded frequency coverage $39

 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity)
$26

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
  Install a Record/Playback Module 120 seconds (wired inside the radio with  two pushbuttons on the side to record 120 seconds and to play it back) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
small speaker  Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
Large Speaker  Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Colors

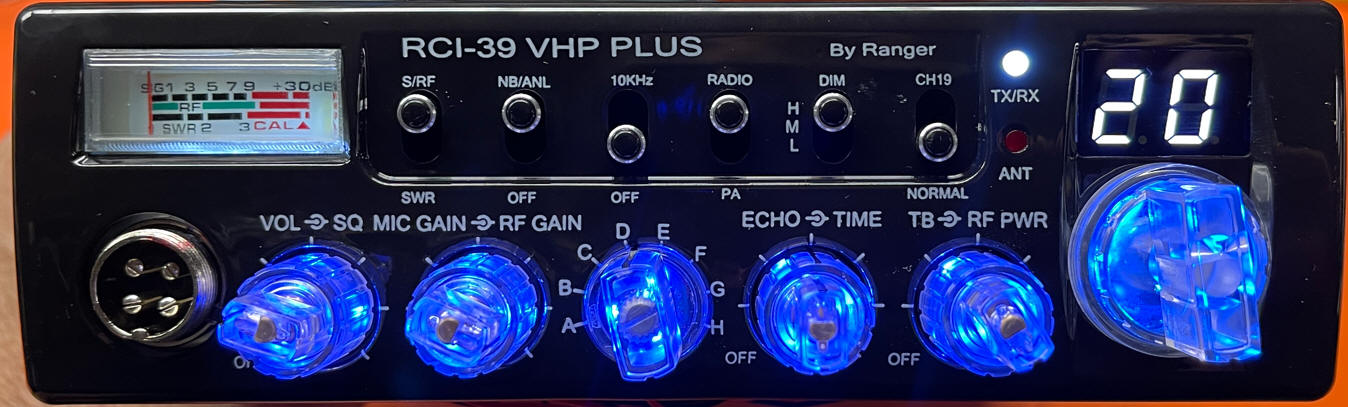

STarbryte KnobsInstall Star-Bryte Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $172
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering.
Power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade
$59
 Change factory power cord to a 8 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering.
Pwr Cord UpgradePwr Cord UpgradePwr Cord UpgradePwr Cord UpgradePwr Cord UpgradeXT90 Cord
$99



Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 2 ~ 20w 2 ~ 20w 2 ~ 20w
PEAK AM 14 ~ 49w 4 ~ 23w 40 ~ 102W
* The most informative meter and the one we use. 05/17/24

Ranger RCI-39VHP plus
Ranger RCI-39VHP PlusRanger RCI-39VHP PlusRanger RCI-39VHP Plus
Ranger RCI-39VHP PlusRanger RCI-39VHP Plus





 General
 Frequency Range

28.145 - 29.655 MHz

 Modes

AM

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 30 ºC to + 50 ºC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7.25" x 9"x 2.25"

 Weight

3.5 Lbs.

 Shipping Weight

6 Lbs.

 Transmitter



 RF Power Output

AM: 10W
25W PEAK

 Spurious Emission

Better than -50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Noise Cancelling


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 µV

 Squelch Sensitivity

0.5 µV

 Image Rejection

- 50 dB

 Hum and Noise

- 40 dB

 Audio Output Power

2.5W @ 10% THD

 AGC Figure of Merit

 80dB for 50mV for 10dB change in audio

 Audio Response

300 to 2500 Hz
