  Orders with radio work are delayed 3 - 10 days


10 Meter Mobile Radios

Ranger_RCI-69FFC6

RCI-69FFC6
AM/FM/SSB 10M Mobile Radio







Download 69FFB6 Manual


These improvements over the
RCI-69FFB6

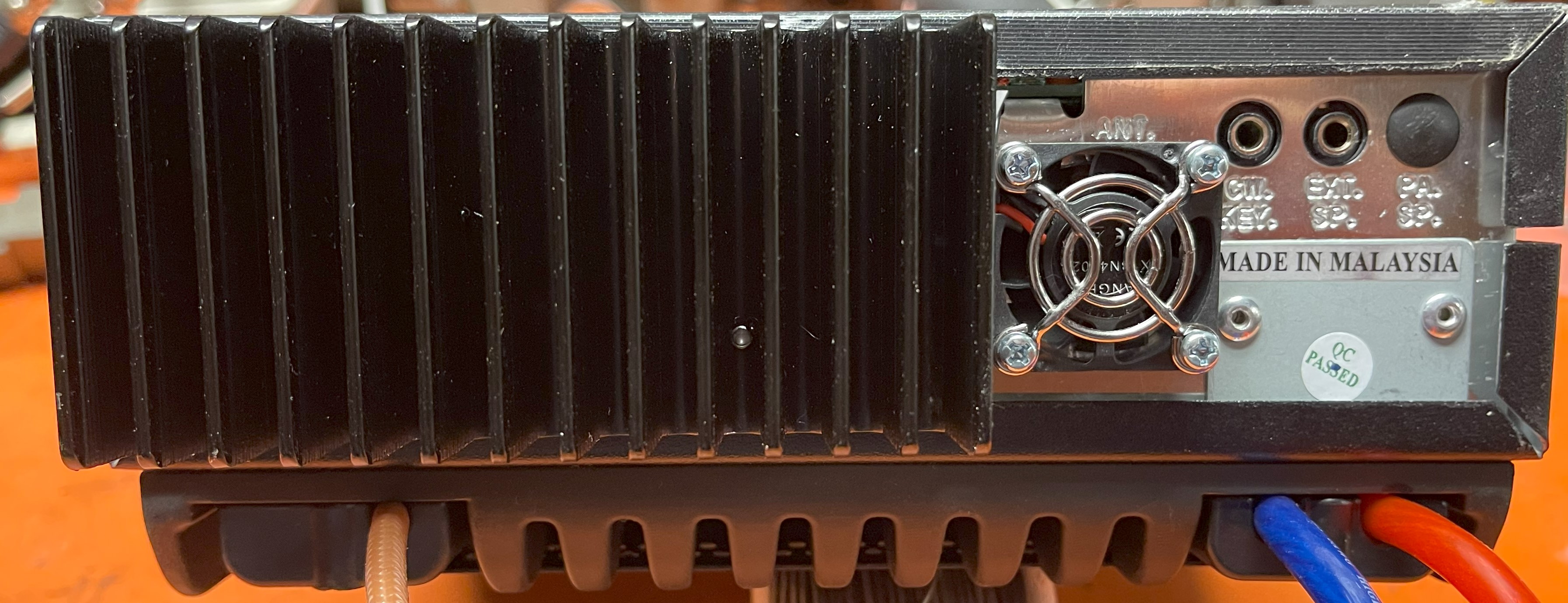

  • Cooling fan in back

  • LED lights in white

  • Improve SSB frequency drift performance.

  • Improve RX sensitivity and stability.

  • New Main PCB,  EPT990015Z

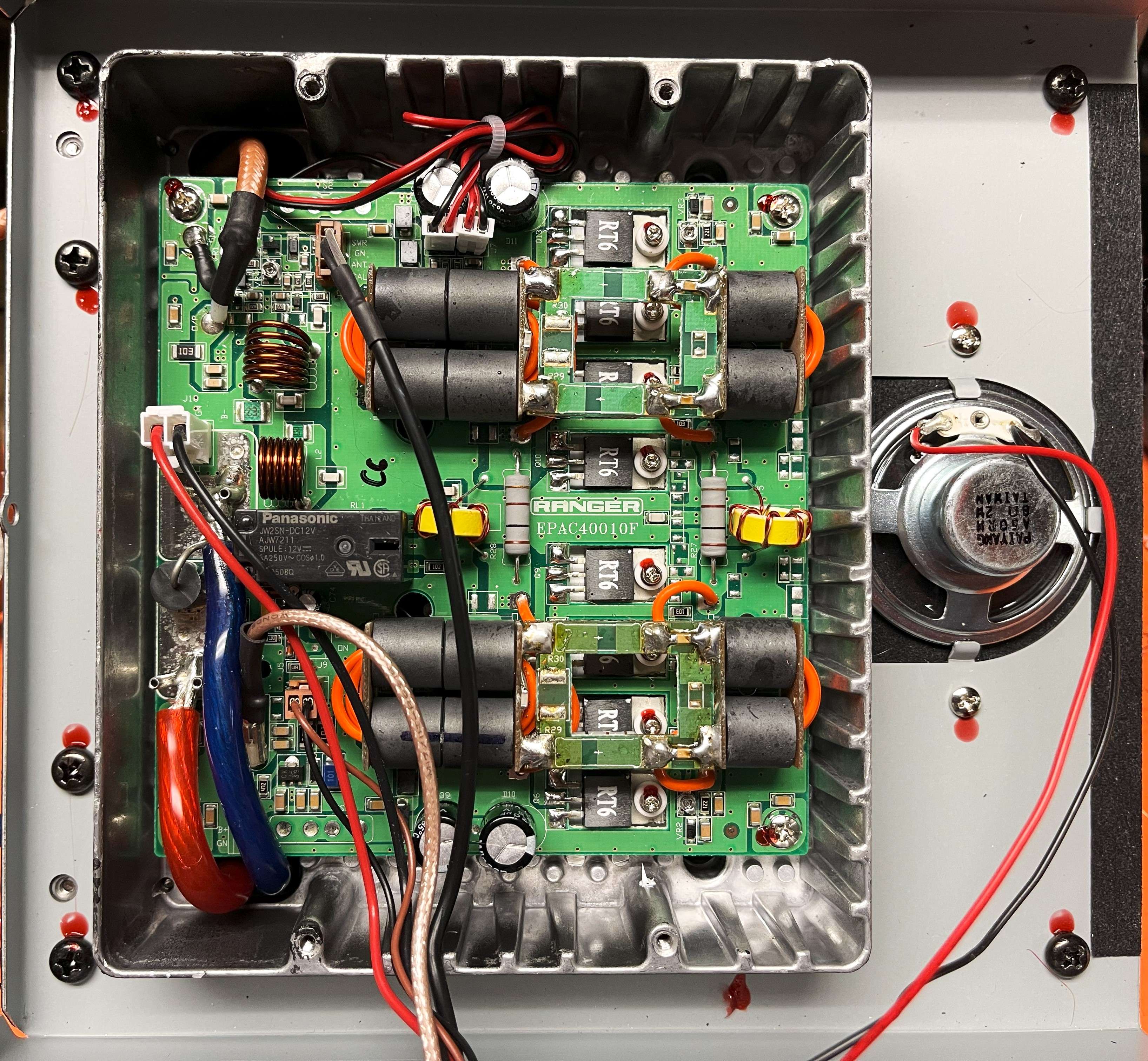

  • New final section with 4 x mosfets
    and a Big heatsink on Back.

  • Louvered top cover for air flow.

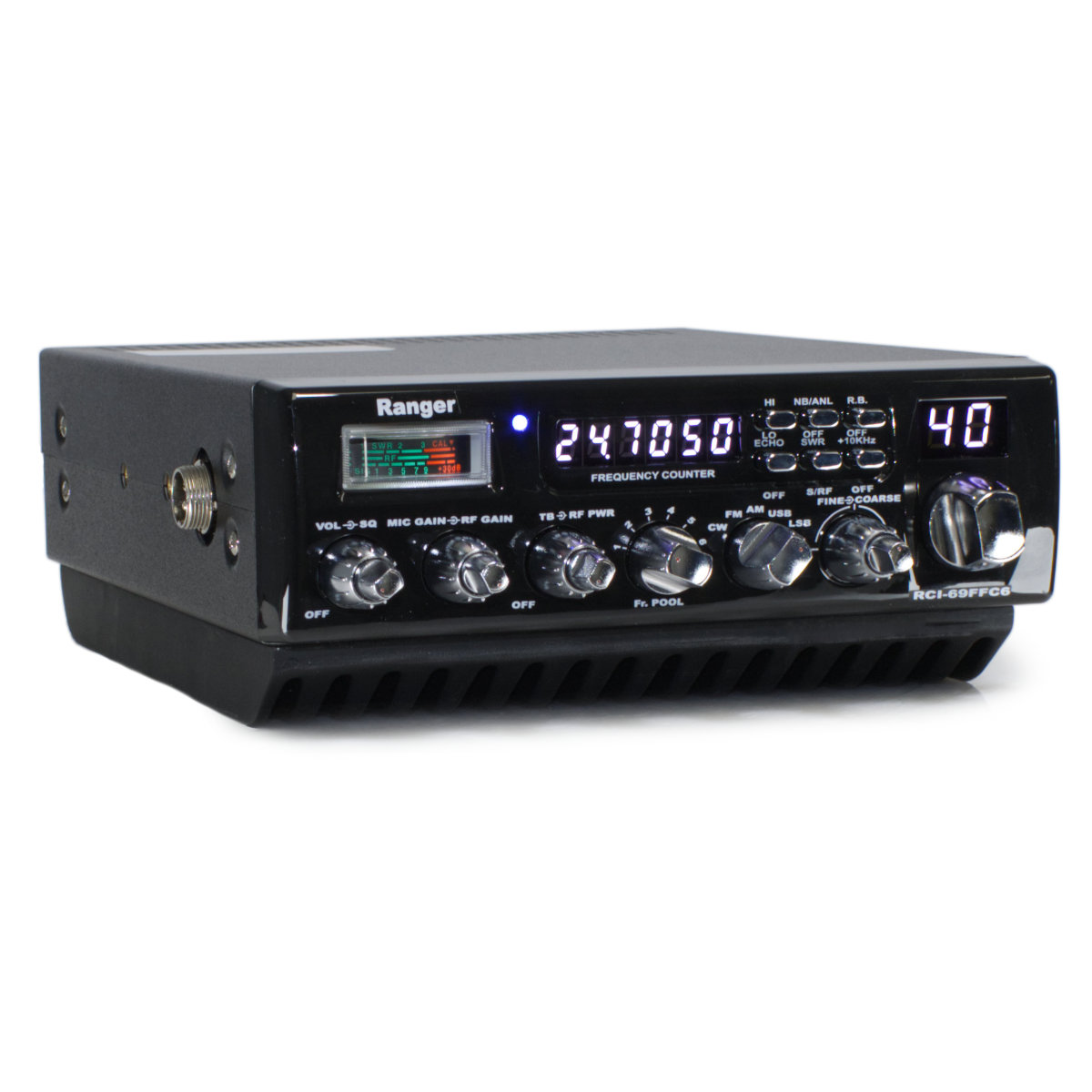

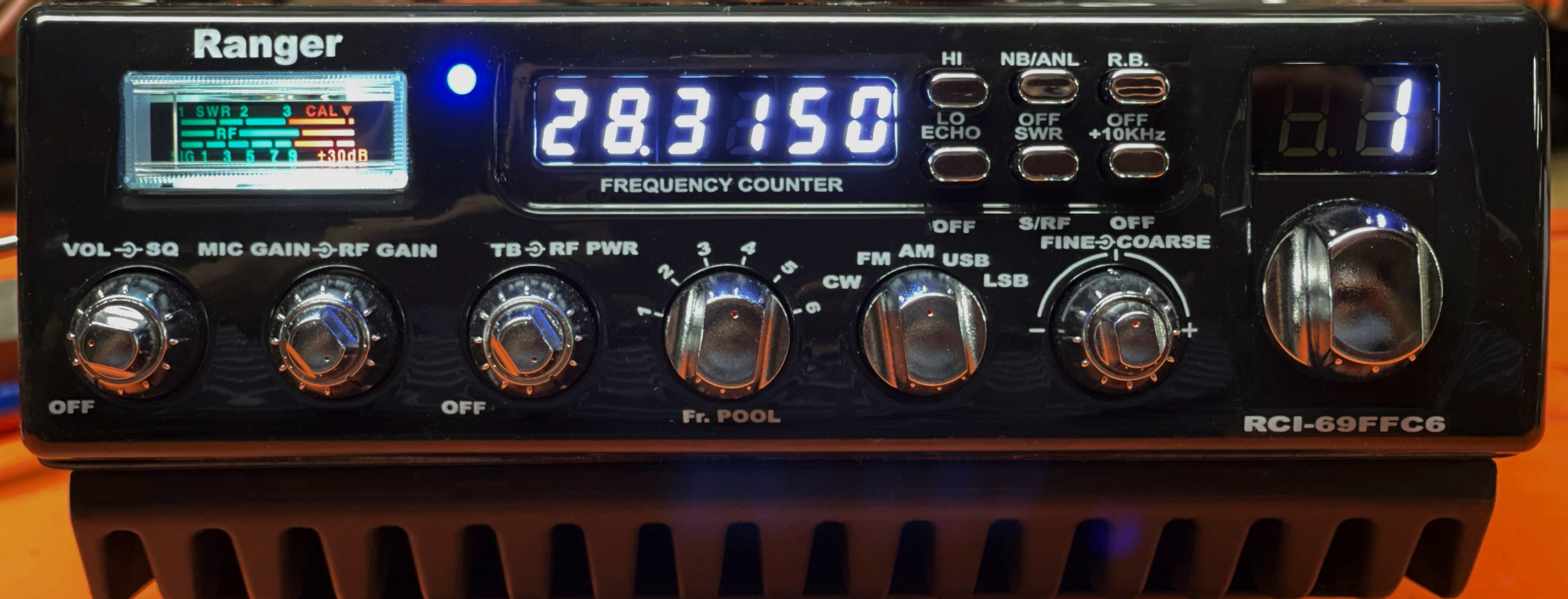

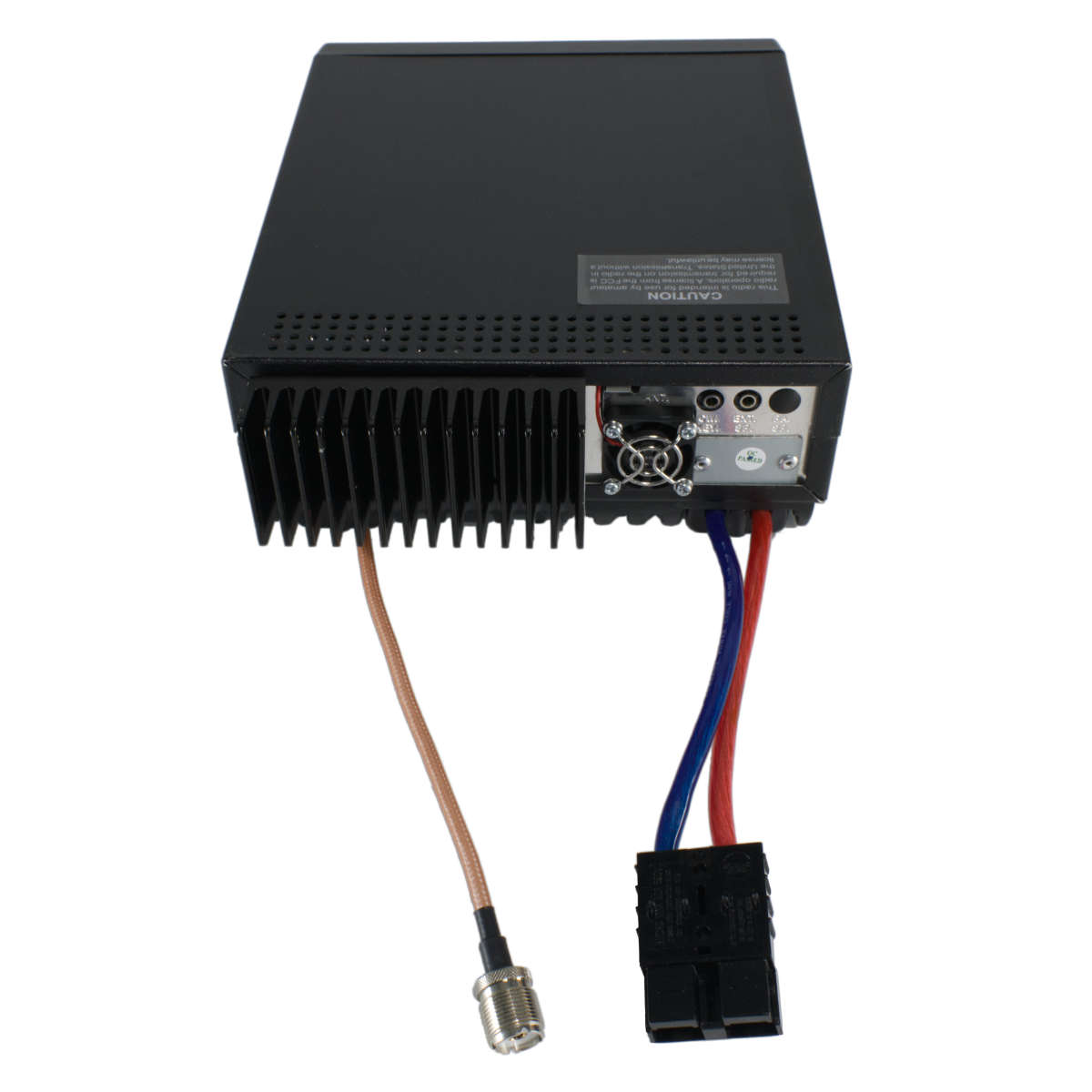

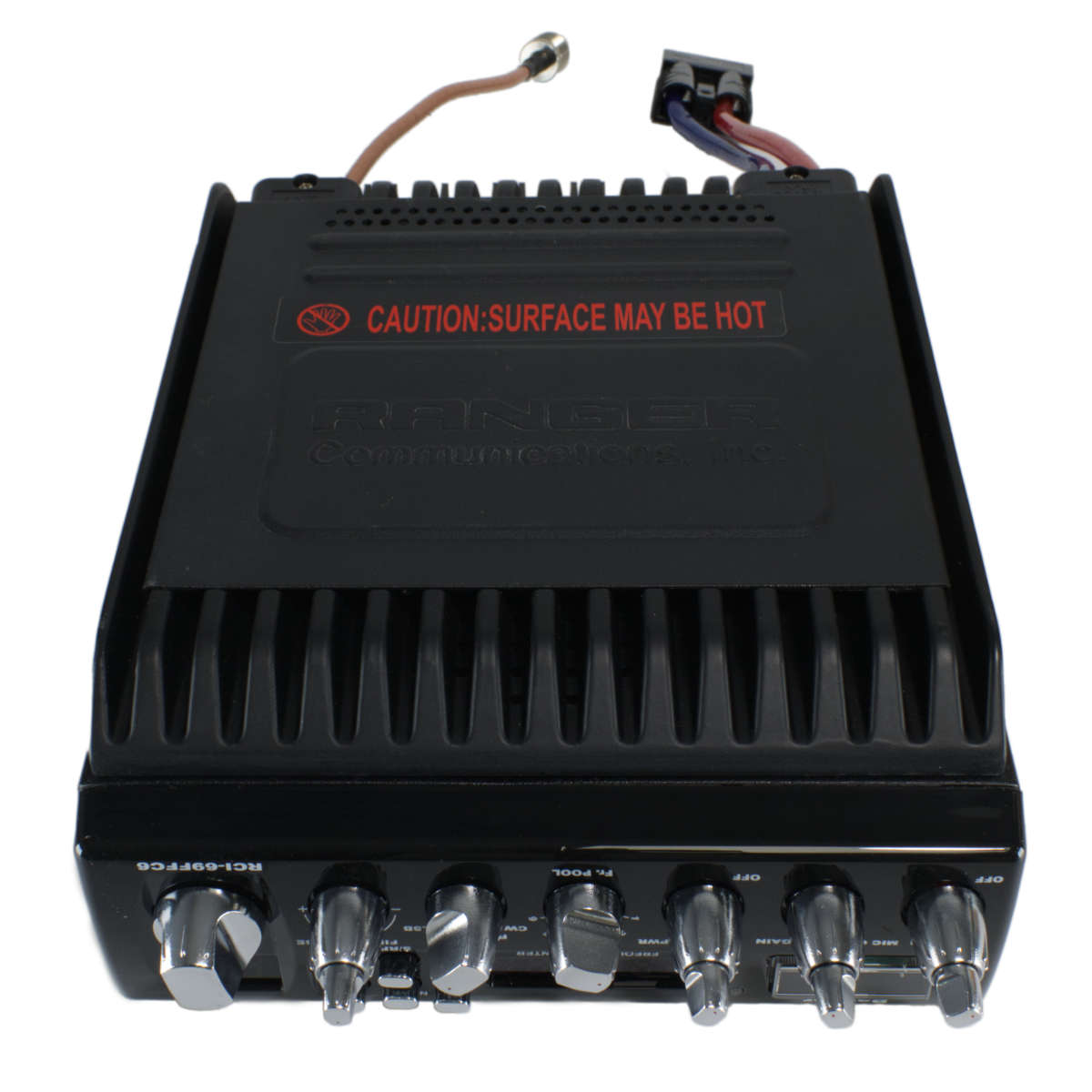

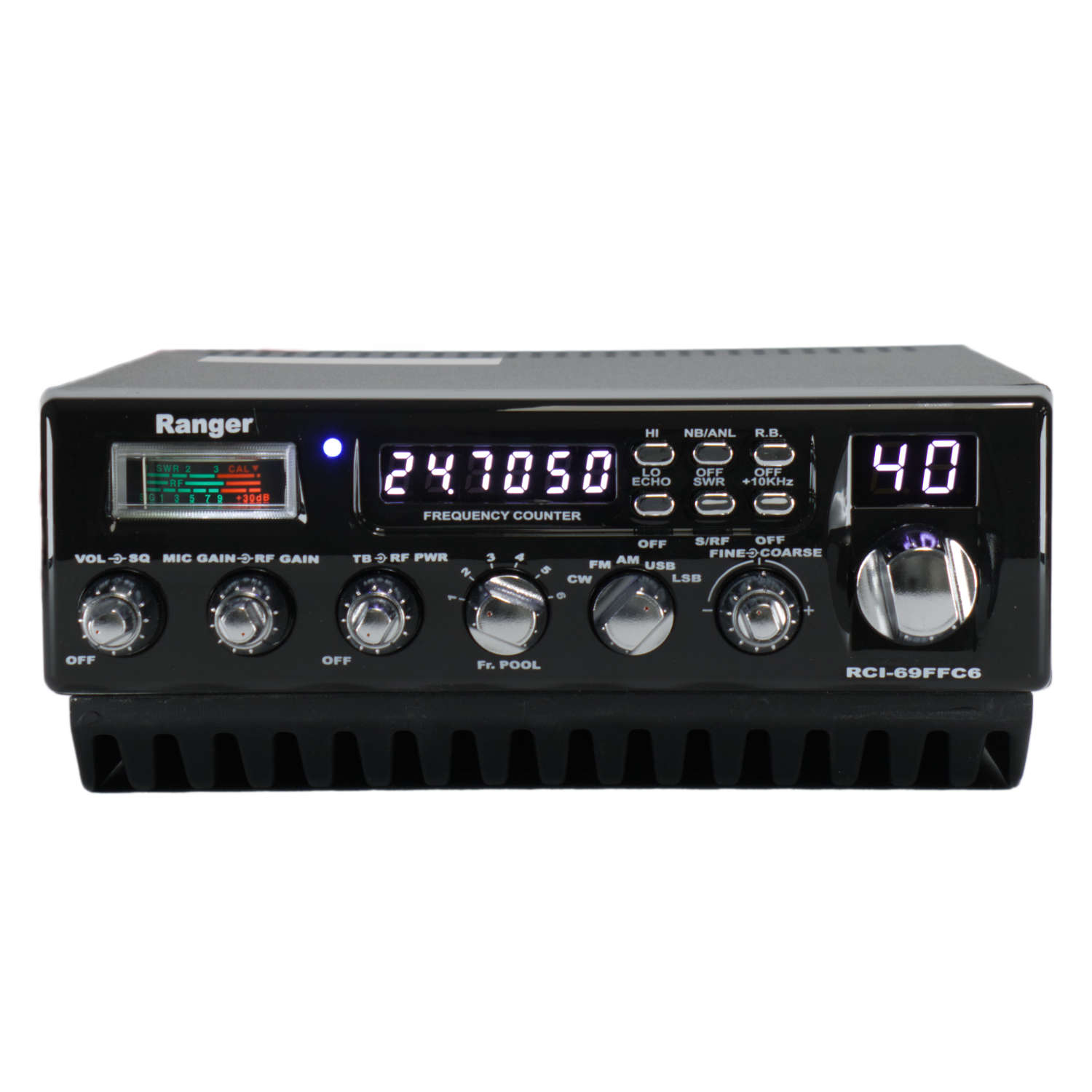

Ranger  RCI-69FFC6 Ranger  RCI-69FFC6

Ranger  RCI-69FFC6


Ranger RCI-69FFC6
Ranger  RCI-69FFC6 Ranger  RCI-69FFC6

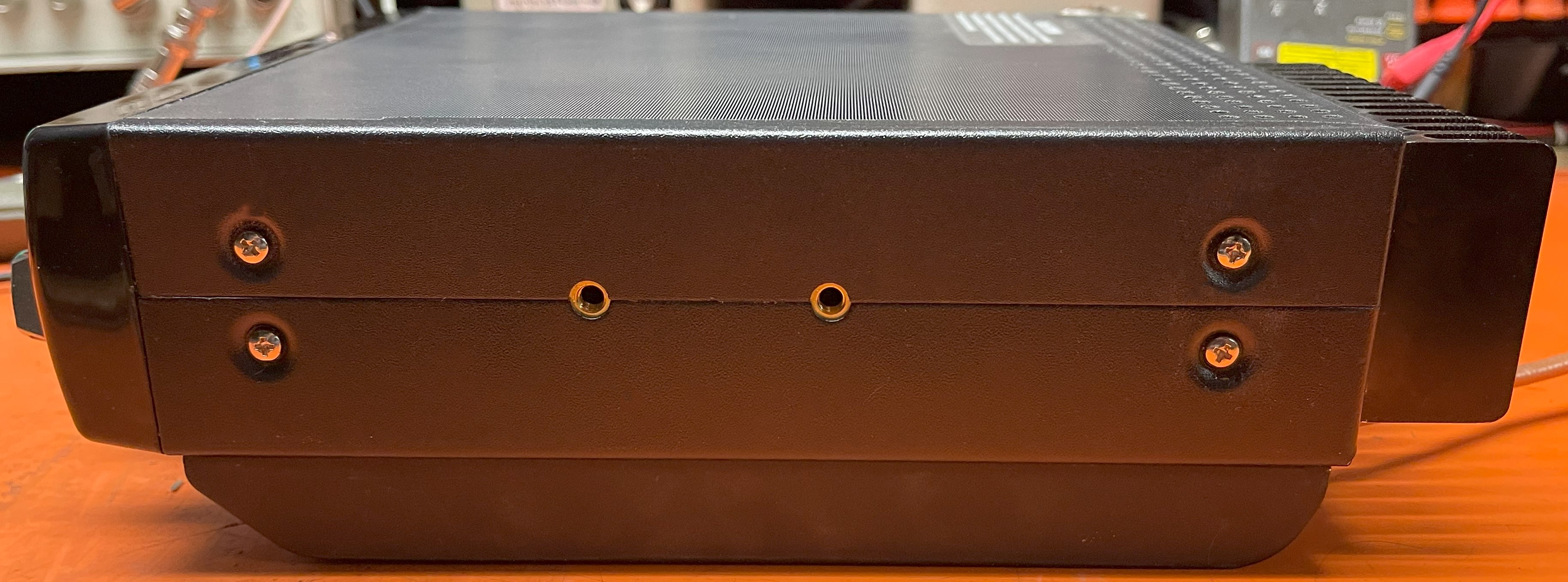

Ranger RCI-69FFC6 Ranger RCI-69FFC6 Side View

Ranger RCI-69FFC6

Ranger RCI-69FFC6

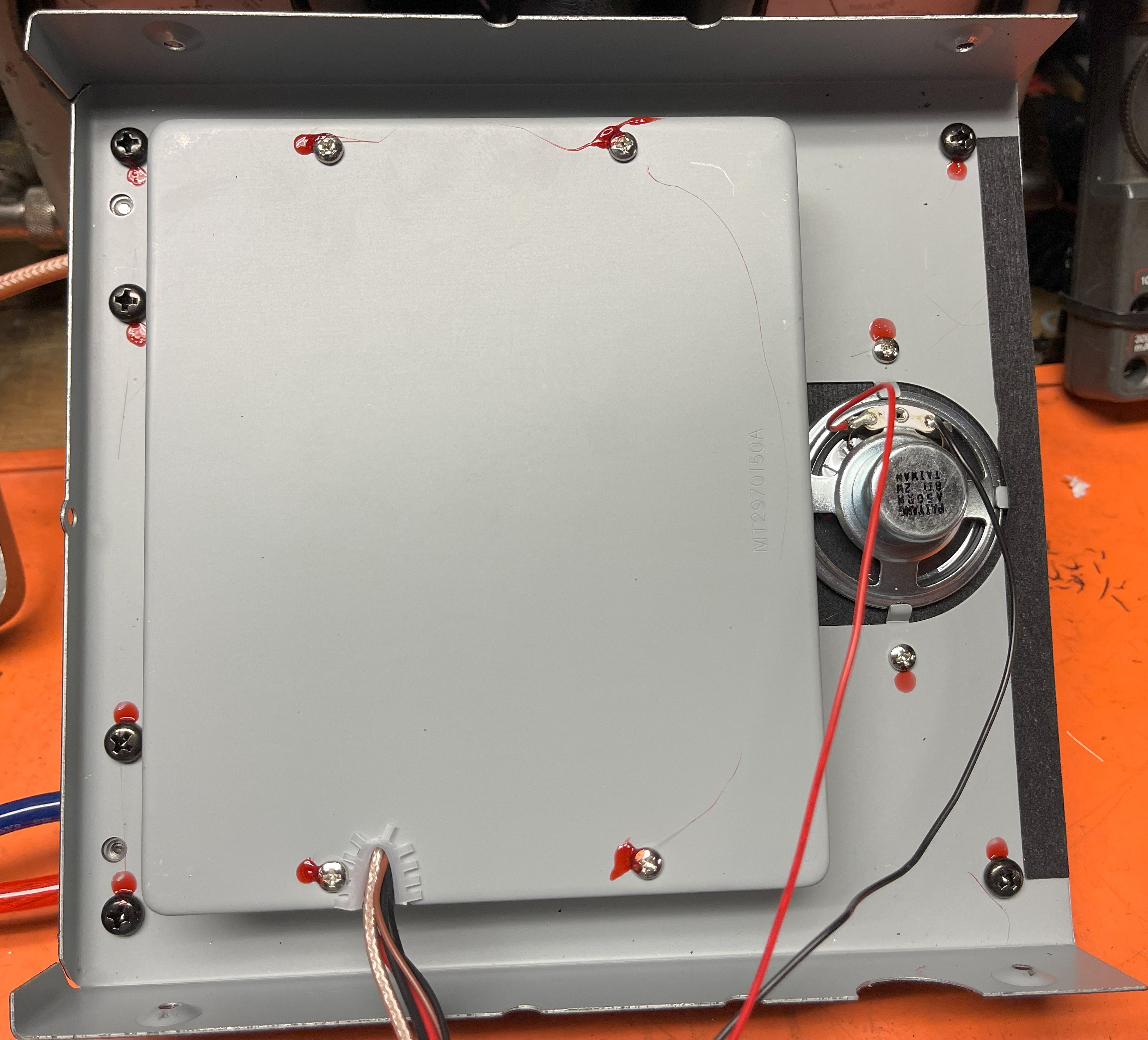

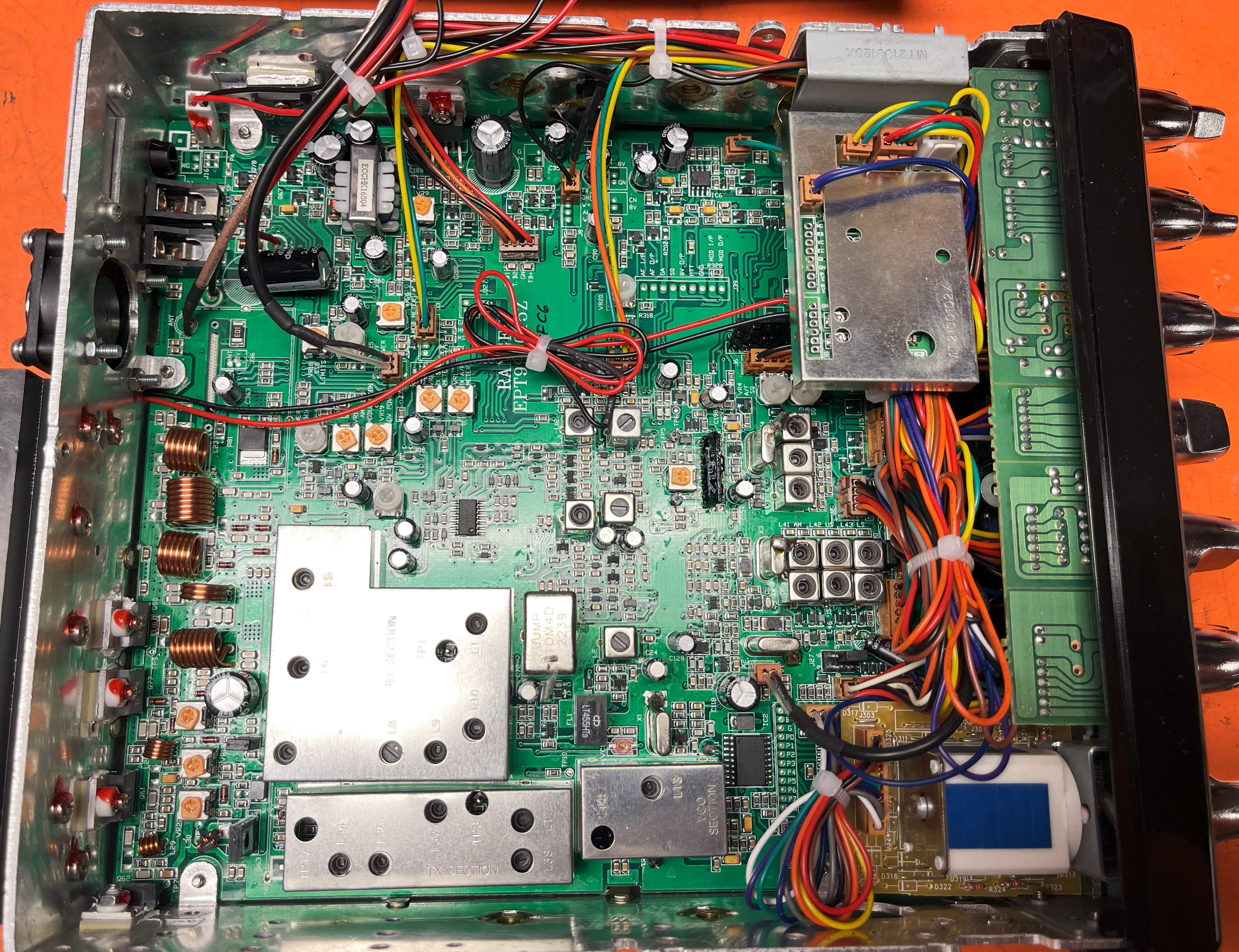

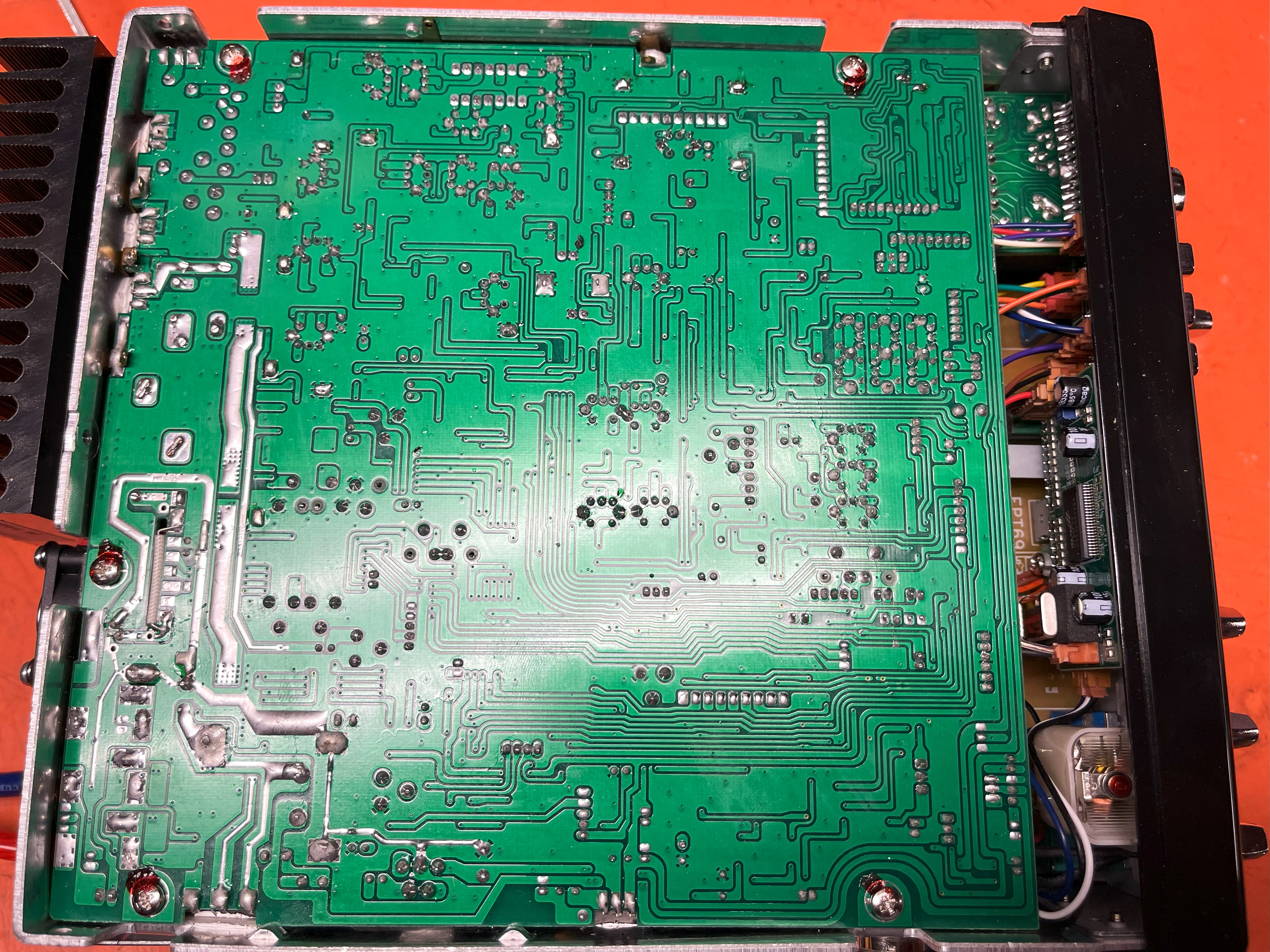

Ranger RCI-69FFC6 Ranger RCI-69FFC6 inside







Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca


CB Microphone Wiring (Galaxy)

Tune and Convert?
     ...RCI-69FFC6 ...     sale



Optional Accessories
Select above  Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $49
 Install a switch in the back to turn off the 450w amp.
(wired behind the radio with a switch for on/off)
$15

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$41
Sound Byte link
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65
Sound Byte link
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
small speaker  Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
Large Speaker  Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

We will extend the short factory power cord (1 foot) to a full 10 feet with HQ 8 Gauge Power wire. Assemble the OEM Anderson connector and fuse holder to make a complete power cord. $25
K-link bracket K-Link K-630 Brackets:
Sturdy Table top stands will make your Ranger into a base in no time.
$28



Tuned up values on these watt meters
Dosy Bird RMS * Bird 43P
AM 15~125w 15~125w 15~125w
FM 200w 200w 200w
Peak AM 150~350w 22~130w 200~500w
SSB 260~375w 230~330w 220~440w
7/19/24



Tuned up values on these watt meters
With optional AMP switch OFF
Dosy Bird RMS * Bird 43P
AM 2~8w 2~8w 2~8w
FM 13w 13w 13w
Peak AM 10~45w 4~14w 25~100w
SSB 18~40w 17~40w 17~60w
* The most informative meter and the one we use.
7/19/24



 General
 Frequency Range

28.245 - 29.655 MHz

 Modes

AM-FM-SSB-PA

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 20 ºC to + 50 ºC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7-7/8" x 10-3/4"
x 2-7/8"

 Weight

12 Lbs.


 Transmitter



 RF Power Output

After Tune-Up:
AM-FM: 100W RMS
AM: 450+W PEAK
SSB PEP: 425+W

 Spurious Distortion

- 50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 µV

 Squelch Sensitivity

0.5 µV

 Image Rejection

- 55 dB

 Hum and Noise

- 40 dB

 Audio Output Power

2.5W @ 10% THD
