Ranger SS-158FB4

Tech Library

10 Meter Mobile Radio

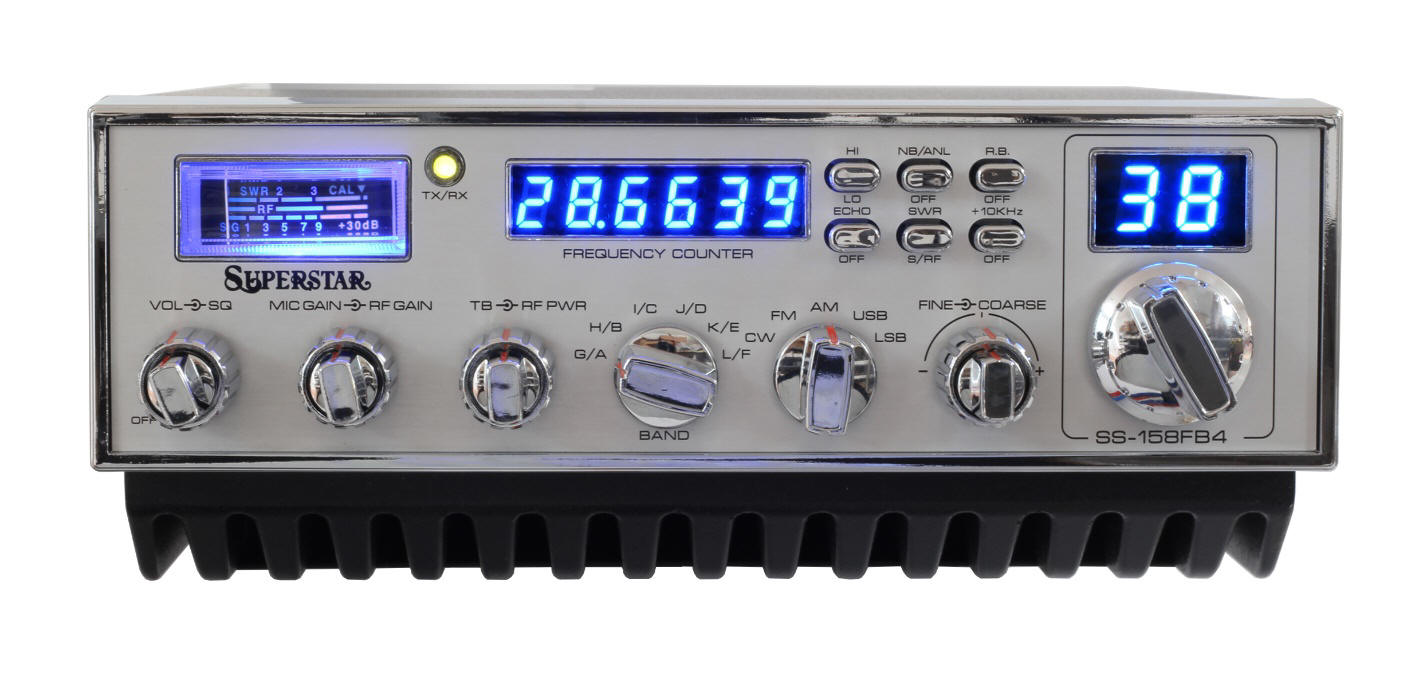

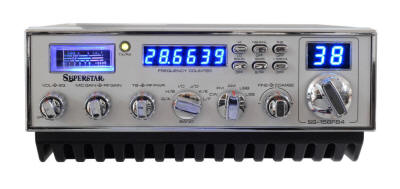

Click image for larger view

SS-158FB4
AM/FM/SSBCW Mobile Radio
HIGH POWER

Download Manual

The SS-158FB4 is a reliable 10 meter AM-FM-SSB-CW mobile radio. With 400 watts peak AM, 100 watts RMS FM-CW, 400 watts PEP SSB, it provides high performance along with features such as a 6-digit frequency counter, Mic/RF gain, and dual finals.

The SS-158FB4 has a blue frequency counter, channel display and meter. Designed for easy mobile operation, an affordable price tag, and backed by Ranger’s 1-year factory warranty, the SS-158FB4 will answer your needs for SSB mobile operation.

The Superstar SS-158FB4 has a classic look and all the power you need. The final amplifier section features four (4) 2SC2879 transistors. High power SSB mobile radio.

• 400+ Watt Final Amplifier
• Variable RF Power Control
• 6 Digit Frequency Counter
• Classic Chrome Front Panel
• S/RF/SWR Front Panel Meter
• Real Channel Selector Control
• Variable Talk Back Controls
• Built-In Echo and Roger Beep - Echo adjusted internally only.
• Cool Blue LED Channel Display
• 4pin Mic Jack
• Heavy Duty, High Power Heatsink

This may be one of those radios that the frequency counter counts up and down, the last digit changing all the time. Additionally the SSB frequency accuracy may drift with temperature changes. We have also found that when echo is turned OFF, that a little bit of tone can be heard on TX. We cannot change these things, it has been that way with some radios for many years. If you can't live with it, please don't buy this radio. Thank you.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

...SS-158FB4 AM/SSB Mobile Radio...

$699^.50

Now comes with a great mic, the SRA-198 !!

Optional Accessories

Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $49

Switch Location

Install a switch to turn off the 400w amp. Low power output is :
AM Carrier:.5~4w Peak AM: 12~40w, PEP SSB: 12~30w $15

Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug) $46

Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug) $29

SOLD OUT

Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed) $41

Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed) $43

SOLD OUT

Install a Record/Playback Module 18 seconds (wired inside the radio with two pushbuttons on the side to record 18 seconds and to play it back) $77

Sound Byte link

SOLD OUT
Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want) $65

Sound Byte link

SOLD OUT
Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.) $65

We will extend the short power cord (1 foot) to a full 10 feet with HQ 8 Gauge Power wire. Assemble the OEM Anderson connector and fuse holder to make a complete power cord (with ends).*** THIS IS SOLD WITH RADIO ONLY *** $25

Add a Small External Speaker
(plugs into back of the radio for improved sound) $12

Add a Large External Speaker
(plugs into back of the radio for improved sound) $25

Colors

Install Star-Bryte Knobs with dimmer control 7 Knob set parts and labor.
$189

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications demo. $19

Tuned up values on these watt meters

	Dosy	Bird RMS	* Bird Peak
AM/FM	10 ~ 100w	10 ~ 100w	10 ~ 100w
PEAK AM	100 ~ 250w	20 ~ 90w	200 ~ 450w
SSB	175 ~ 275w	65 ~ 140w	300 ~ 400w

Tuned up values on these watt meters
With optional AMP switch OFF

	Dosy	Bird RMS	* Bird Peak
AM/FM	.5 ~ 3w	.5 ~ 3w	.5 ~ 3w
PEAK AM	1.5 ~ 9w	1 ~ 3w	9 ~ 32w
SSB	2 ~ 4w	1.5 ~ 3w	9 ~ 17w

* The most informative and the one we use.

We ask that if you may need Warranty service on this radio to please send directly to Ranger. You can find all the information you need Here<---

General
Frequency Range	28.245 - 29.655 MHz
Modes	AM / FM / USB / LSB / CW
Frequency Control	PLL Synthesizer
Frequency Stability	0.001%
Operating Temp. Range	- 30 ºC to + 50 ºC
Input Voltage	13.8 Vdc
Antenna Impedance	50 Ohms
Size (W x D x H)	8.26 (W) x 11.02 (D) x 3.54 (H) Inches
Weight	8 Lbs.
Transmitter
RF Power Output	AM-FM: 100W RMS AM: 400W PEAK SSB: 400W PEP
Spurious Distortion	- 50 dB
Audio Distortion	10 %
Frequency Response	300 to 2500 Hz
Microphone	Dynamic

Receiver
AM Sensitivity for 10 dB SINAD	AM/CW : < 1.0μV ; SSB : < 0.25μV
Squelch Sensitivity	<0.5 µV
Image Rejection	More than 65 dB
Audio Response	300 to 2500 Hz
Audio Output Power	3W @ 10% THD
