10 Meter Mobile Radios

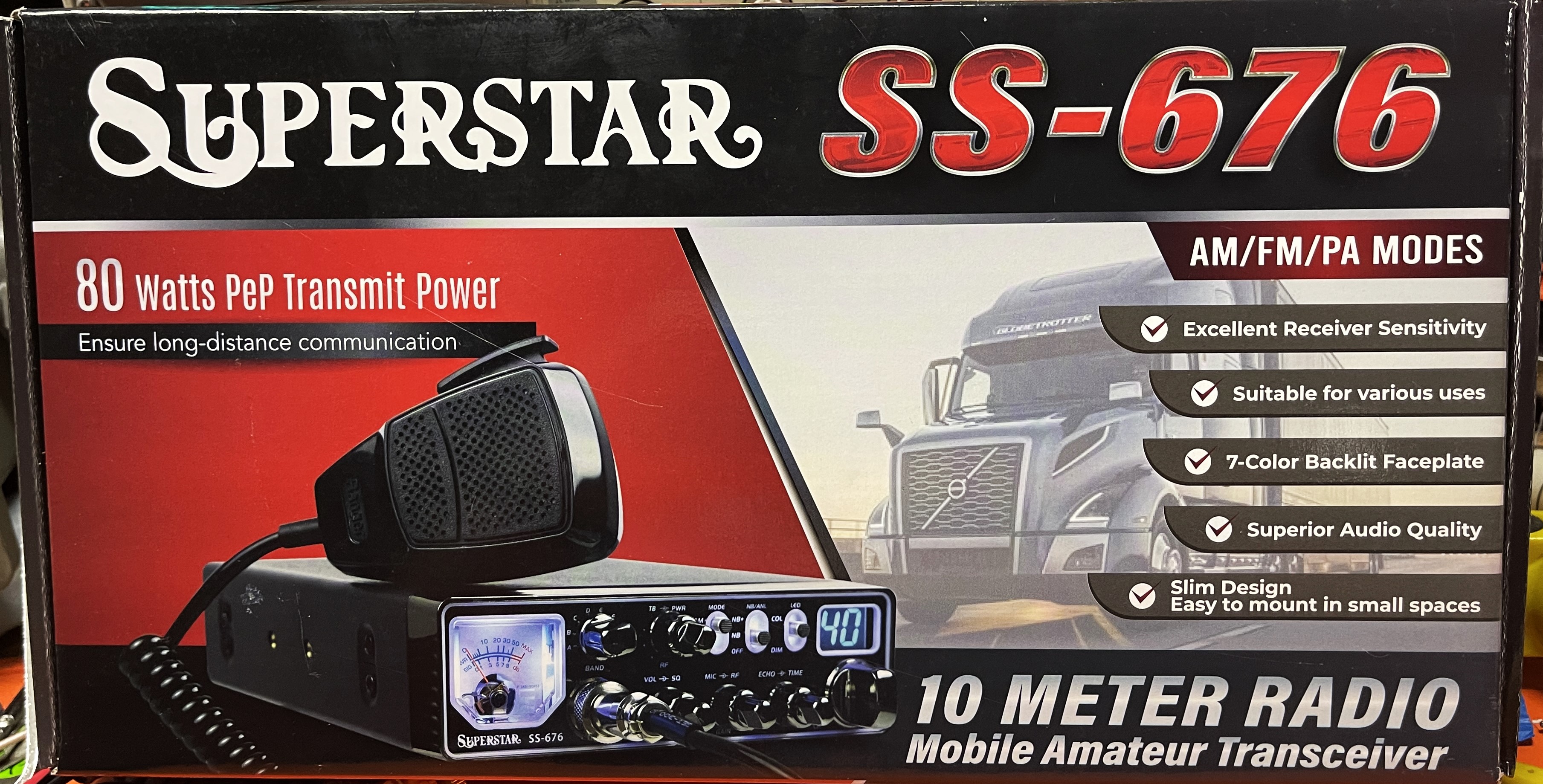

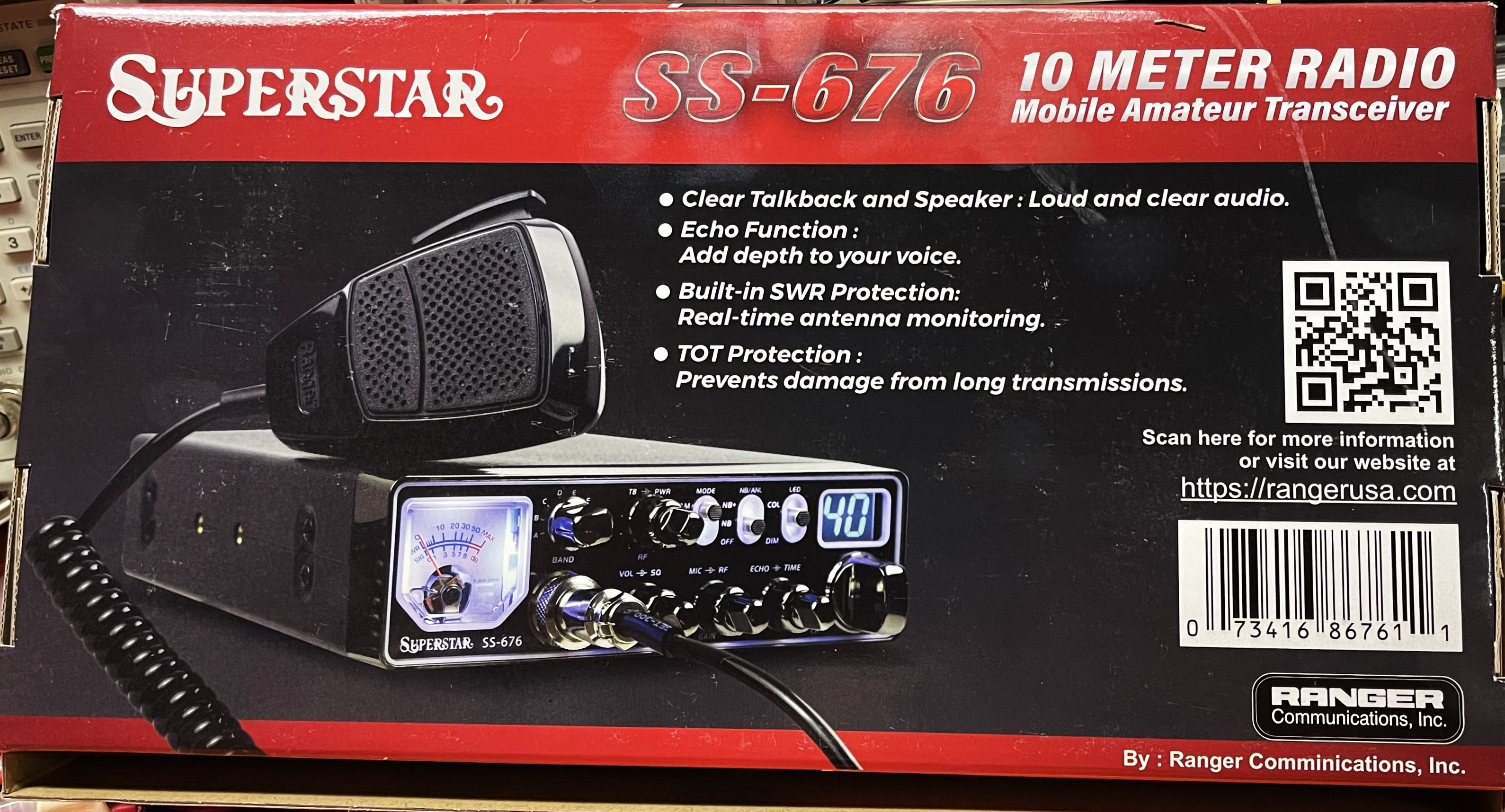

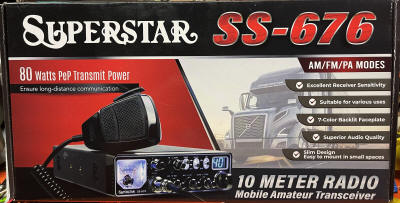

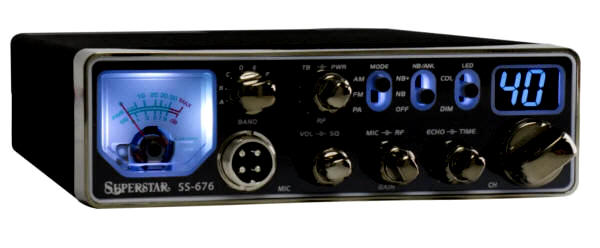

Superstar
SS-676
AM/FM/SSB 10M Mobile Radio







Download 69FF6 Manual


  • Small size is easy to mount in small spaces

  • New Final Section4x Mosfets & large heatsink

  • Echo FunctionAdds depth to your voice

  • Built-in SWR Protection

  • Real-time antenna monitoring

  • TOT Protection Prevents damage from long transmissions

  • Additional Features

  • AM / FM / PA Modes

  • 80 Watts PeP Tansmit Power

  • Excellent Receiver Sensitivity

  • 7 Color Backlit Faceplate with 32 Level Dimmer

  • Variable Talkback





















Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

CB Microphone Wiring (Galaxy)
Tuned and Converted?
     ...Superstar SS-676 ...
  		          $299



Optional Accessories
Select Above  Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency coverage.25.615 - 29.205) 		$39
RK-56  Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)		 $46
636L Mic  Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)		 $29
RD104E  Astatic RD104-E Amplified microphone.
 (wired for this radio with a 4 pin plug and a battery installed)		 $46
small speaker  Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
Large Speaker  Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25
K-LINK K-601 Fan Kit $49
  Add a table top stand to run this as a Base Station in the house.  $25
Add a power Supply to run this as a Base Station in the house. $89
Add a power Supply and speaker and fan to run this as a Base Station in the house. $149



Tuned up values on these watt meters
Dosy Bird RMS * Bird 43P
AM
FM
Peak AM
SSB
7/19/24





 General
 Frequency Range

28.245 - 29.655 MHz

 Modes

AM-FM-SSB-PA

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 20 ºC to + 50 ºC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7-7/8" x 10-3/4"
x 2-7/8"

 Weight

12 Lbs.


 Transmitter


 RF Power Output

After Tune-Up:
AM-FM: 100W RMS
AM: 450+W PEAK
SSB PEP: 425+W

 Spurious Distortion

- 50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver


 AM Sensitivity for 10 dB SINAD

0.5 µV

 Squelch Sensitivity

0.5 µV

 Image Rejection

- 55 dB

 Hum and Noise

- 40 dB

 Audio Output Power

2.5W @ 10% THD
