  Orders with radio work are delayed 3 - 10 days


     10 Meter Mobile Radio

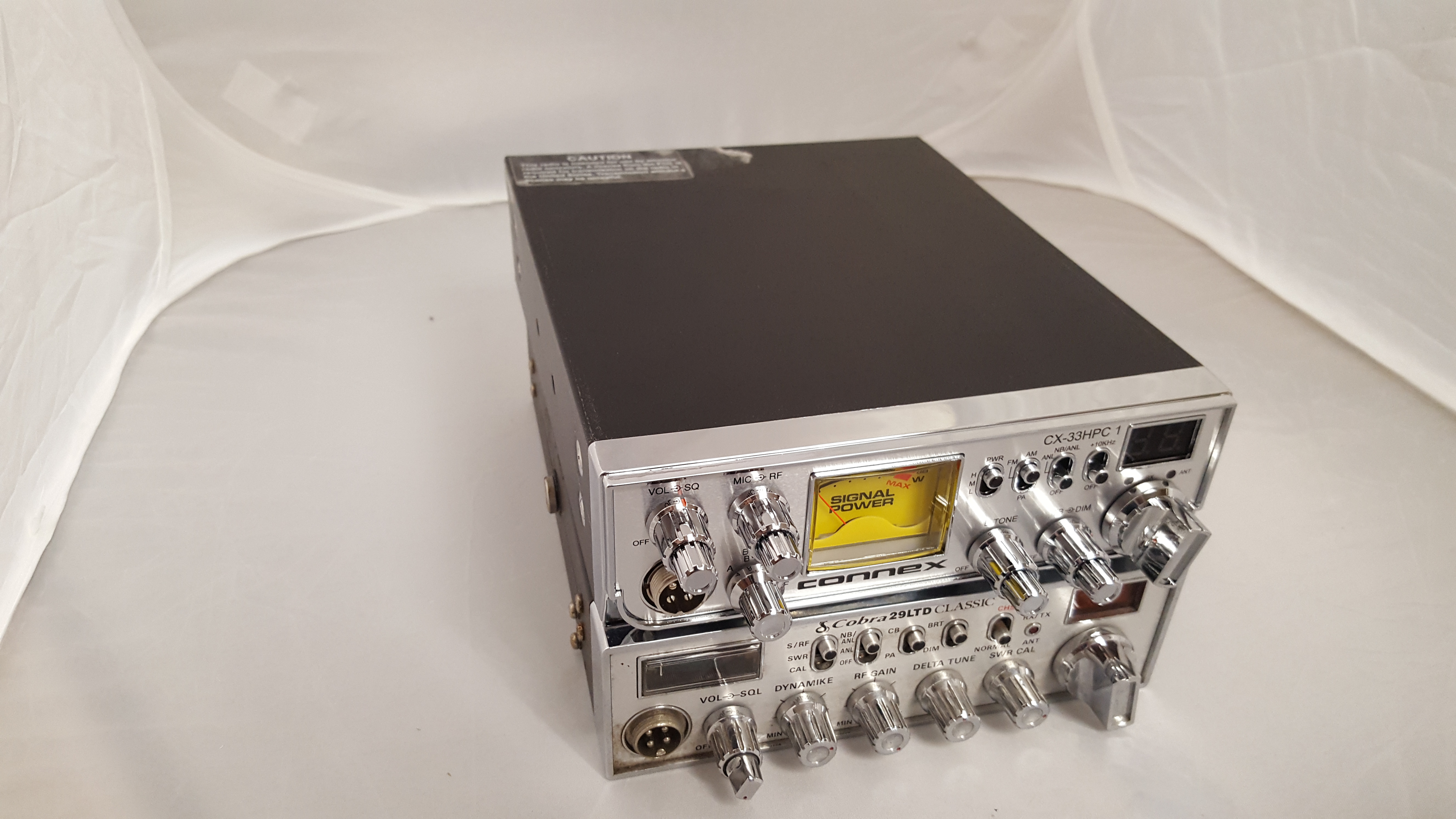

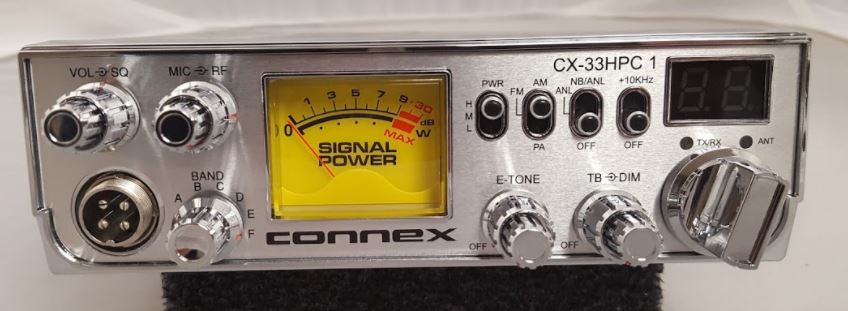

Connex 33 HPC1
Click for larger


CX-33 HPC1
AM/FM 10 Meter Radio

Download Manual

Features
  • Same size as a Cobra 29LTD

  • Dual Mosfet Finals

  • BLUE Channel LED

  • Large Meter with Scales for Signal Strength and Power Output

  • Red/Green Transmit LED

  • Noise Blanker

  • Automatic Noise Limiter

  • Variable Dimmer

  • AM/FM/PA modes

  • Echo Board with Two Controls

  • Talk Back variable

  • Three Power Output Levels

  • 10 Watts FM /AM power

  • 40W AM peak power

  • +10KC Switch

  • Pre-wired for FC 347 (or FC-30) Frequency Counter







Click images for larger









































Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

Convert and Tune-up
...CX-33HPC1...
$299




Optional Accessories
Select
Above
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $40
SOLD OUT
RFX-95HD Final. Final. Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 20 watts with 80+ watts peak power. Amp on/off switch in the back. $189
Perform Receiver improvement mod.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25
RK-56  Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
636L Mic  Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
 Install a Record/Playback Module 18 seconds (wired inside the radio with a switch on the side to record 18 seconds and to play it back over the air) $77

Sound Byte link


 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
small speaker  Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
Large Speaker  Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
 The  SRA-FC393 is a small frequency counter which indicates the frequency of the selected channel. This plugs directly into the freq counter jack in the back of the radio. $69

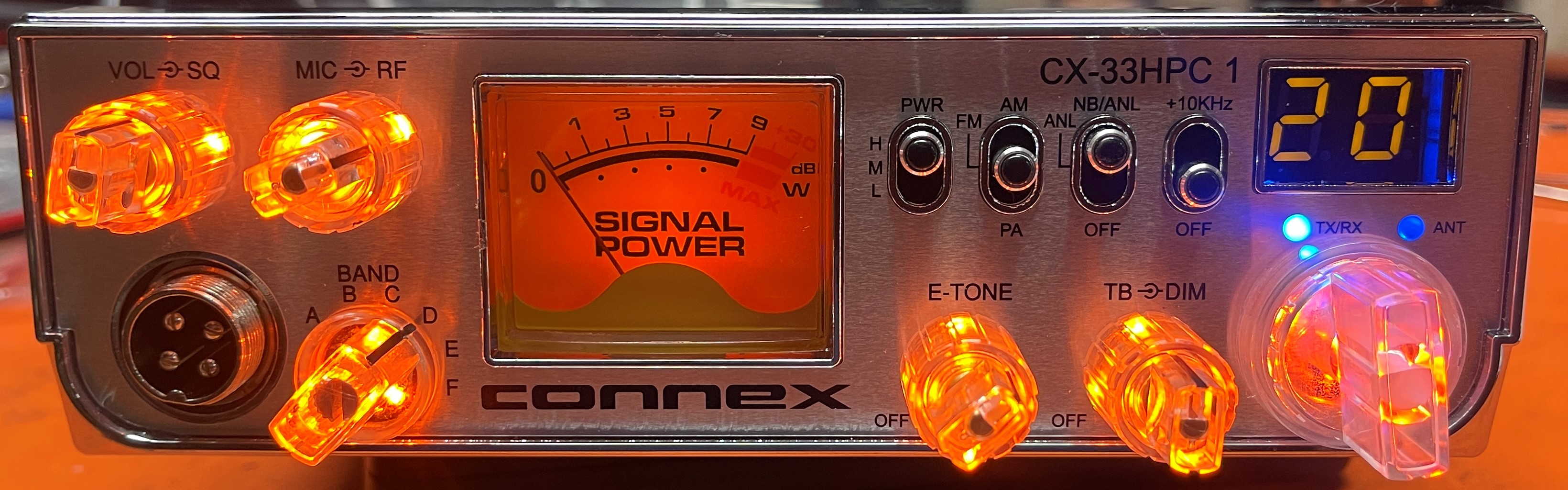

StarBryte KnobsInstall Star-Bryte Knobs with dimmer control circuit integrated to the radios dimmer. Includes a 6 Knob set , parts and labor. $202
Colors
Rings OnlyInstall Star-Bryte Rings behind the factory knobs with dimmer control circuit  integrated into the radios dimmer. Includes a 6 LED Rings , parts and labor. $154
Chrome covers  Exchange the top and bottom covers to Chrome Covers. $32
Diomand plate covers  Exchange the top and bottom covers to Diamond Plate Covers. $22




Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM/FM 1, 3, 9w 1, 3, 9w 1, 3, 9w
PEAK AM 5, 12, 22w 2, 4, 10w 20, 35, 45w
*The most informative and the one we use.
05/21/24







Connex radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Connex radio might though and I cannot control it.
