     10 Meter Mobile Radio

Connex CX-3400HP Face

3400 HP
AM/FM 10 Meter Radio

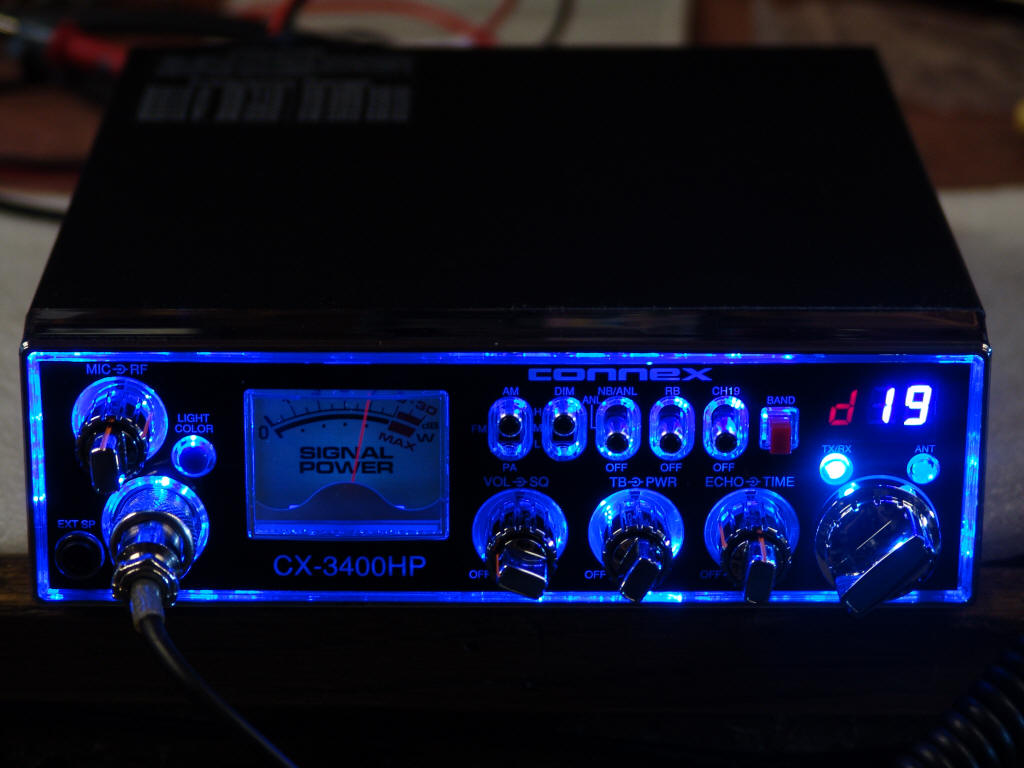

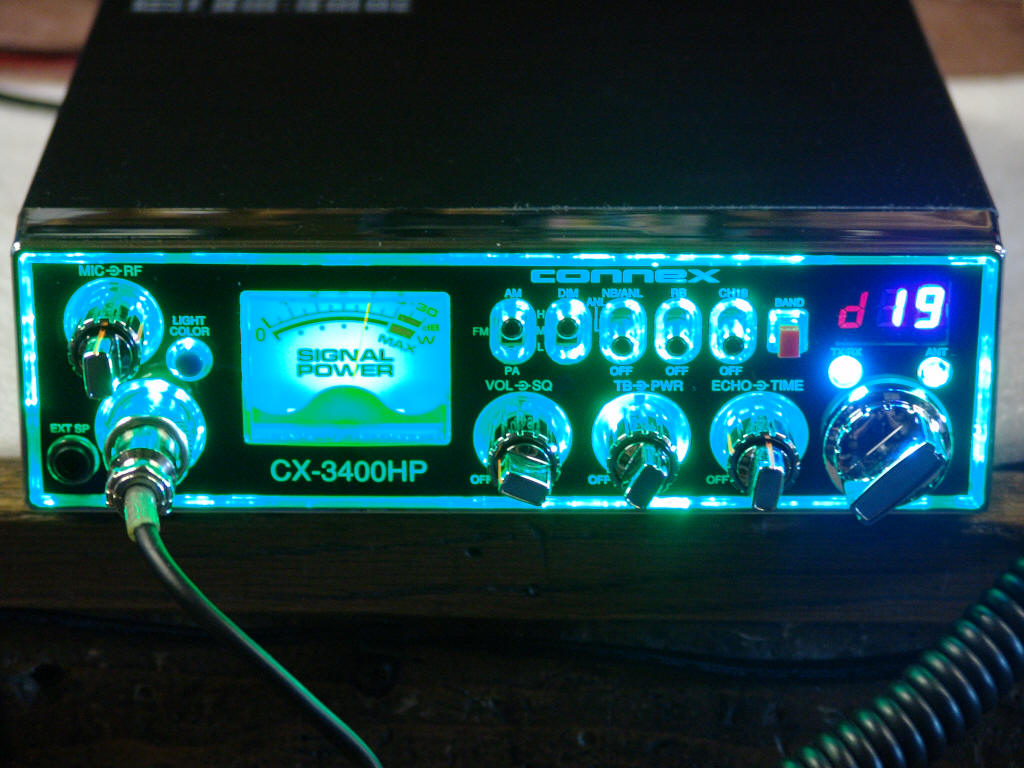

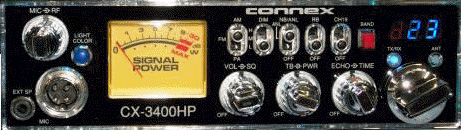

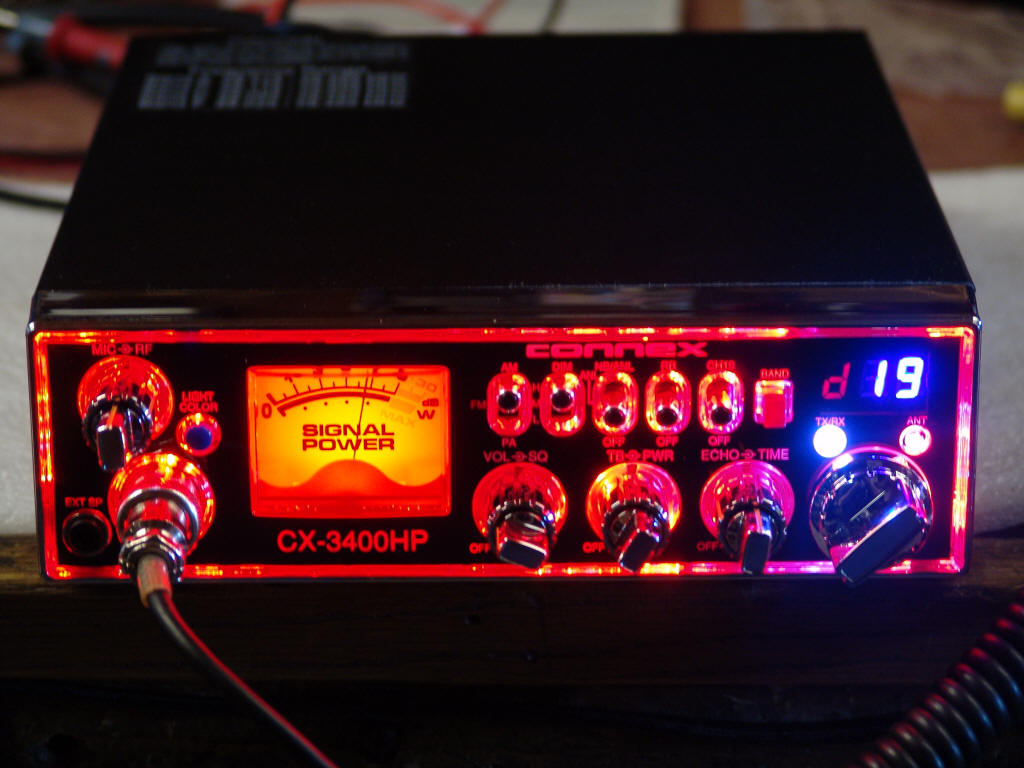

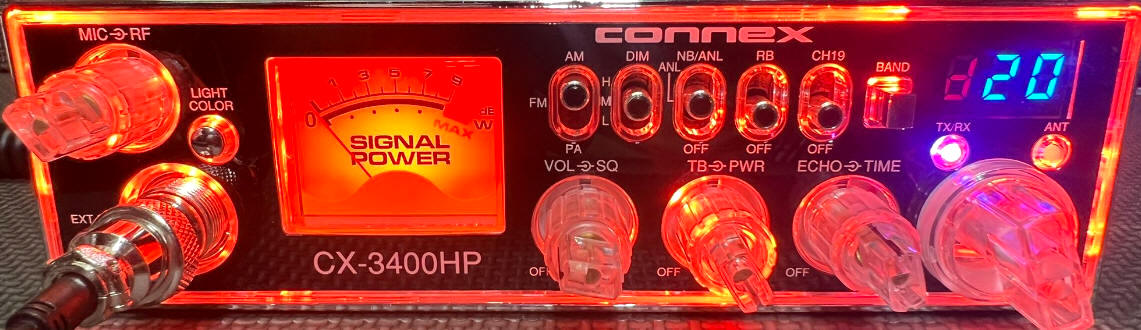

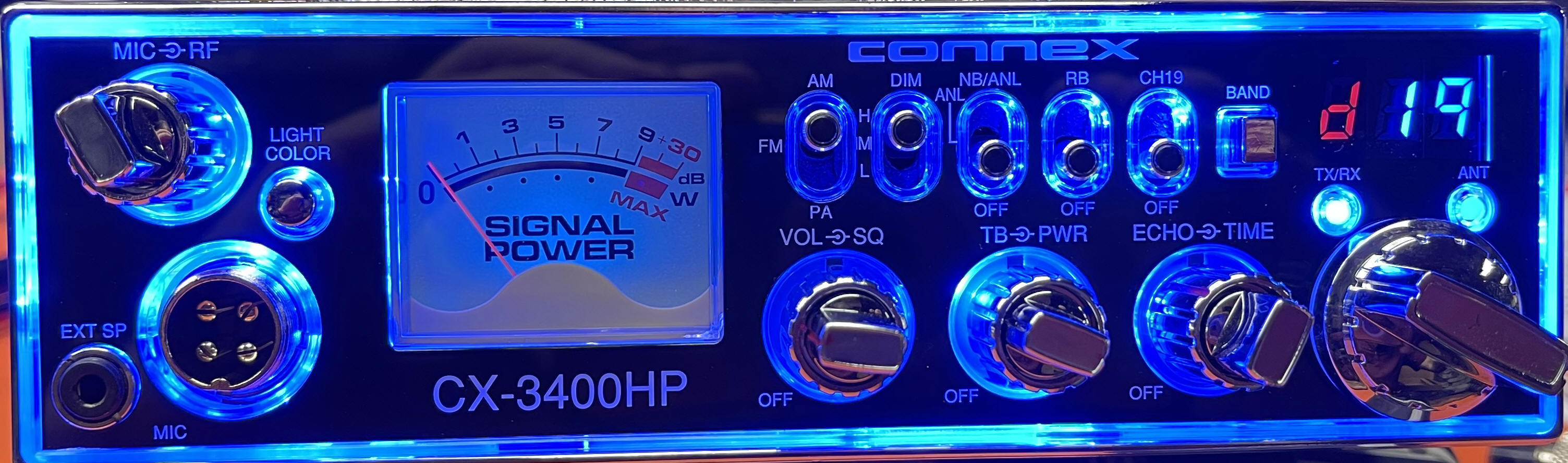

Another new radio from Connex, the CX-3400HP. This one has a backlit control panel with 6 selectable colors. A few other big changes in the styling include the front speaker jack, large meter with radial arc movement and a band select button with band display next to the channel.







Features

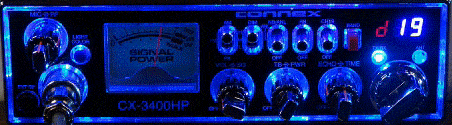

  • 6 Colors, selectable backlight
    • white
    • light blue
    • green
    • yellow/orange
    • purple
    • dark blue
  • Large meter style
  • AM, FM, Mobile
  • Echo/talkback
  • Hi/Low Power Switch
  • 3 pos dimmer
  • Push Button Band Selector
  • Ant warning indicator
  • Roger Beep
  • PA
  • Dual Finals
  • front ext speaker jack
  • frequency counter jack
  • 40W watts peak power










Connex radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Connex radio might though and I cannot control it.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

...AM/FM 10 Meter Radio... $309.50



Optional Accessories
 Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency coverage) (AM: 1w-10w, Peak AM: 25-50+w)
$39

RFX-95HD Final. Final. Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 20 watts with 90+ watts peak power. Amp on/off on CH19 switch. $189
Perform Receiver improvement mod.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit. $25
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
 Install a Record/Playback Module 18 seconds (wired inside the radio with a switch on the side to record 18 seconds and to play it back over the air) $77

Sound Byte link


 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link


 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
LED Color

SOLD OUT
FC-30 Frequency Counter large face and dual input type, a plug  for this radio and external input for other radio types that have no plug in the back. $69
 Exchange the top and bottom covers to Chrome Covers. $32
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 2w , 8w 2w , 8w 2w , 8w
PEAK AM 7w , 18w 3w , 10w 23w , 47w
* The most informative and the one we use.



CB Microphone Wiring (Galaxy)

GENERAL

Frequency Range 28.065 to 28.505 MHz
Frequency Control  Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance 0.005%
Frequency Stability 0.001%
Operating Temperature -30 °C to +50 °C.
Microphone Plug-in dynamic; with push-to-talk switch and
coiled cord.
Input power 13.8V DC nominal, 15.9V max, 11.7V min.(Positive or negative ground).

Transmit:

AM/FM Hi Power 10A.

Receiver:

Squelched, 0.3A.
  Maximum Audio output, _ 0.7A.
Size 2-3/8” (H) x 7-7/8” (W) x 9-1/4” (D).
Weight 5.0 1bs.
Antenna Connector UHF, SO239
Meter Illuminated; indicates relative output power,
received signal strength.

Transmitter

Power output AM/FM, - Selectable 10W/2W
AM Peak Power  40+ Watts.
Modulation High-and low-level Class B, AM
Variable capacitance FM.
Spurious Emissions 60 dB
Frequency Response AM and FM: 450 to 2500 Hz.
Output Impedance 50 ohms, unbalanced
Output Indicators  Meter- shows relative RF output power.
Transmit LED glows red when transmitter is
in operation.

Receiver

Sensitivity AM: 0.5 mV for 10 dB (S+N)/N at greater than
½ -watt of audio output.
  FM: 1.0 mV for 20 dB (S+N)/N at greater than
½-watt of audio output.
Selectivity AM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz.
Image Rejection More than 65 dB.
IF Frequency  AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
Adjacent-Channel
Rejection
60 dB AM
RF Gain Control 45 dB adjustable for optimum signal
reception.
Automatic Gain Control
(AGC)
Less than 10 dB change in audio output for
inputs from 10 to 100,000mV.
Squelch Adjustable; threshold less than 0.5 mV.
ANL Switch-able
Noise Blanker  RF type
Audio Output Power 4 watts into 8 ohms.
Frequency Response 300 to 2800 Hz.
Built-in Speaker 8 ohms, round. or
External Speaker (Not Supplied) 8 ohms; disables internal speaker when connected.


SO-239As many of you may know;  Ranger, Galaxy and General radios have all had some poor tolerance coax connectors this last year (SO-239 on the back of the radio) . You have to wiggle the coax just right to get a good grab on the threads of the connector. They are too far “out of tolerance” and we can no longer accept it.       So we have started changing the coax connectors ourselves to a much higher quality SO-239 that will fit your coax nice and tight.  This has affected our selling price ($10) but we think you will agree that it is worth it.
