  Orders with radio work are delayed 7 - 14 days

     10 Meter Mobile Radio

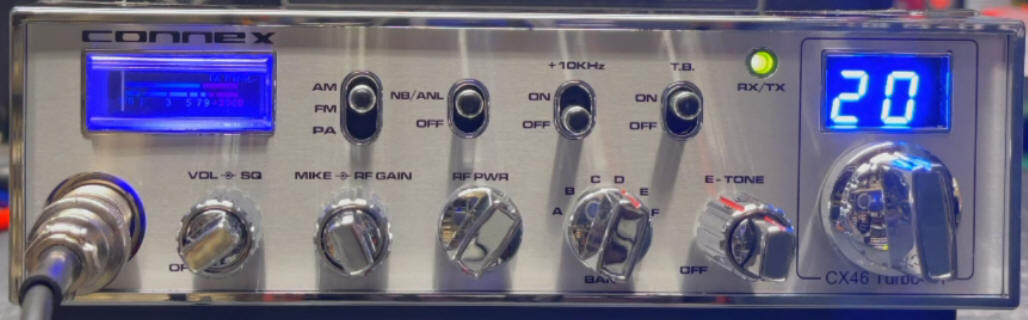

Connex CX-46TurboN1

46 Turbo N1
AM/FM 10 Meter Radio





Features
  • 30 Watts FM /AM carrier power

  • 150+W AM peak power

  • BLUE meter light

  • BLUE Channel LED

  • Red/Green Transmit LED

  • Noise Blanker

  • Automatic Noise Limiter

  • PA

  • Echo Board with Two Controls

  • Talk Back "ON" during Echo

  • Two Power Output Levels High / Low

  • Pre-wired for FC 347 or FC-30 Frequency Counter

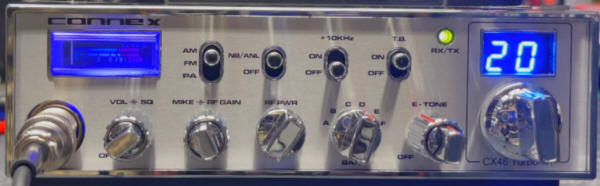

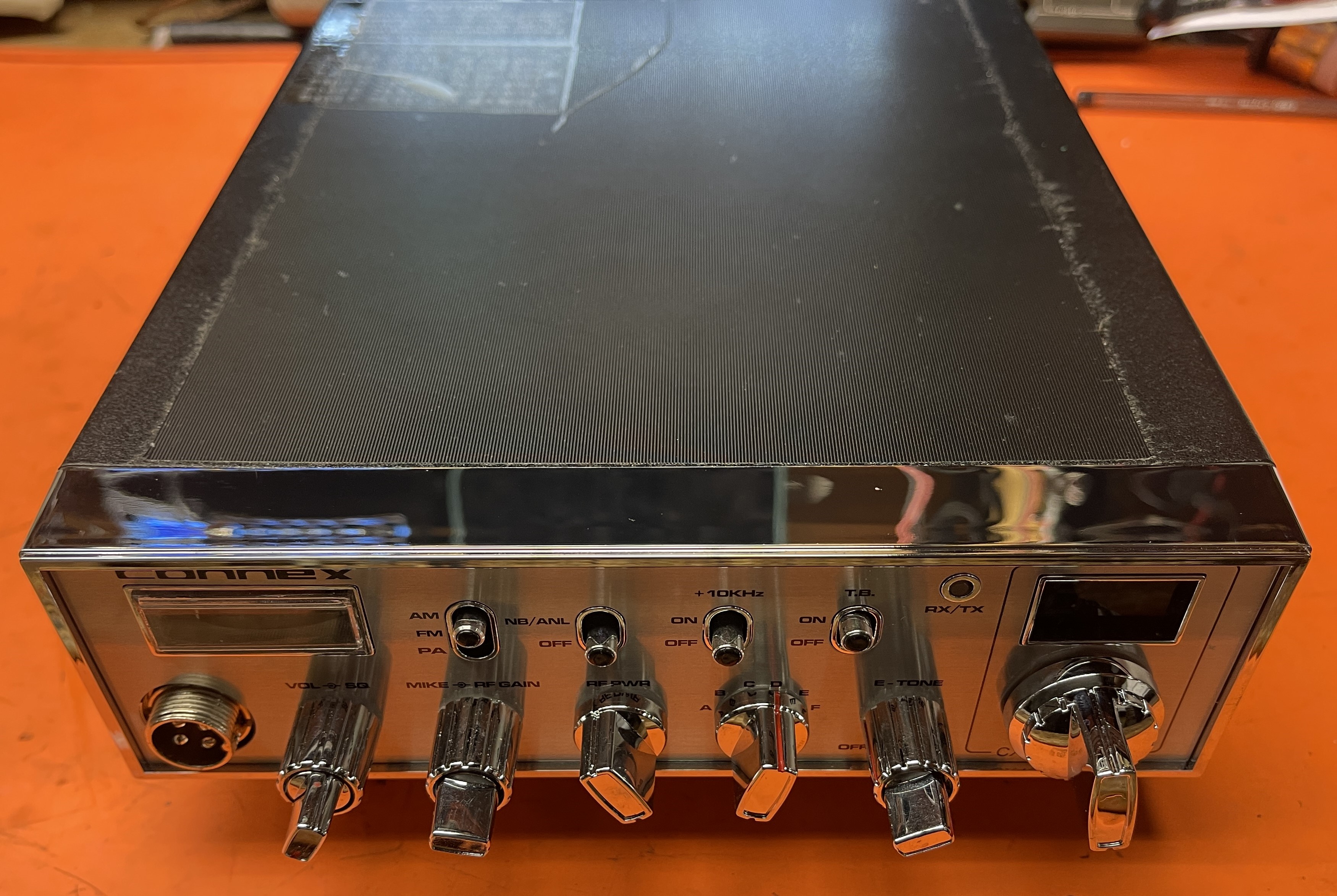

Connex CX-46 Turbo N1


VIDEOS





Tune-up Reports and Custom work done here at BellsCB:
This is a playlist and has multiple videos
 (notice the   button to change to the next video)

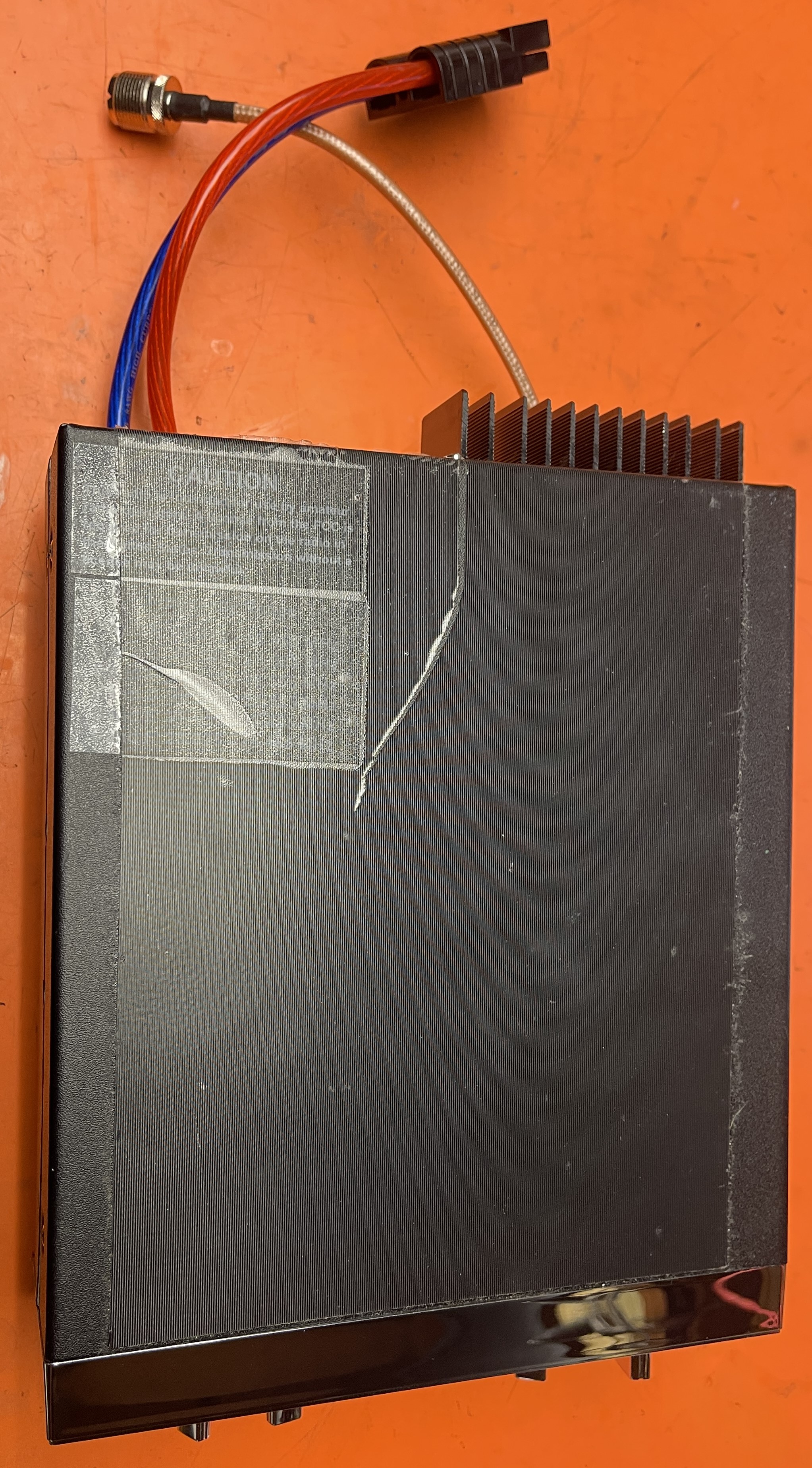

Connex radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Connex radio might though and I cannot control it.



The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites for this radio are the
Turner RK-56 and RD104E.




 CB Microphone Wiring (Galaxy)

SO-239As many of you may know;  Ranger, Galaxy and General radios have all had some poor tolerance coax connectors this last year (SO-239 on the back of the radio) . You have to wiggle the coax just right to get a good grab on the threads of the connector. They are too far “out of tolerance” and we can no longer accept it.       So we have started changing the coax connectors ourselves to a much higher quality SO-239 that will fit your coax nice and tight.  This has affected our selling price ($10) but we think you will agree that it is worth it.





Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

SOLD OUT
Get Notified Via E-Mail when we are taking orders again
...Connex CX-46 Turbo N1... $589.50



Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $39
Install a switch to turn off the 175+w amp.  In front in the NB location or the side or the back. Amp Switch $15
Perform Receiver improvement mod.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
SOLD OUT
 Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
   The  FC-347 is a small frequency counter which indicates the frequency of the selected channel. This plugs directly into the freq counter jack in the back of the radio. $59

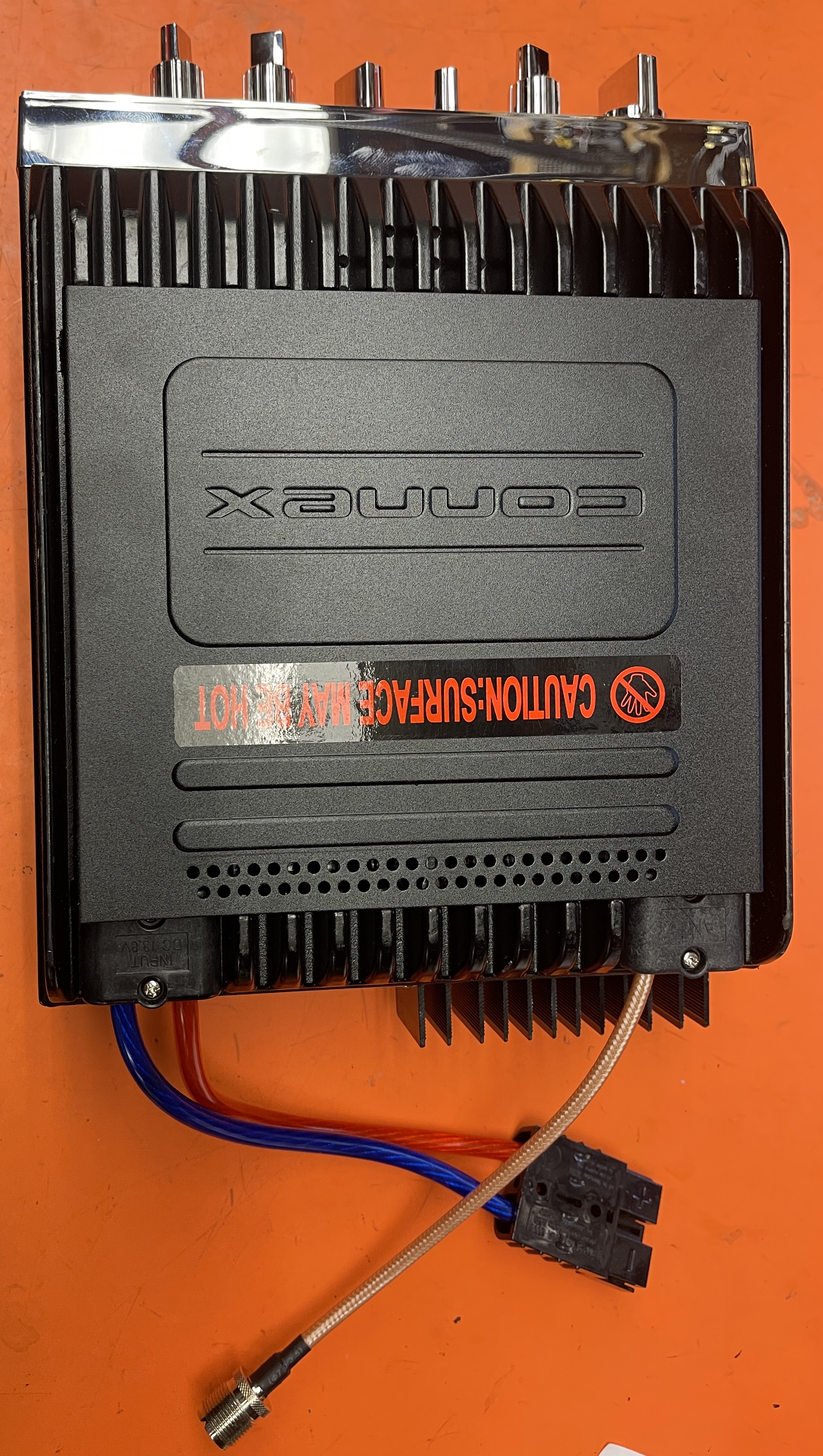

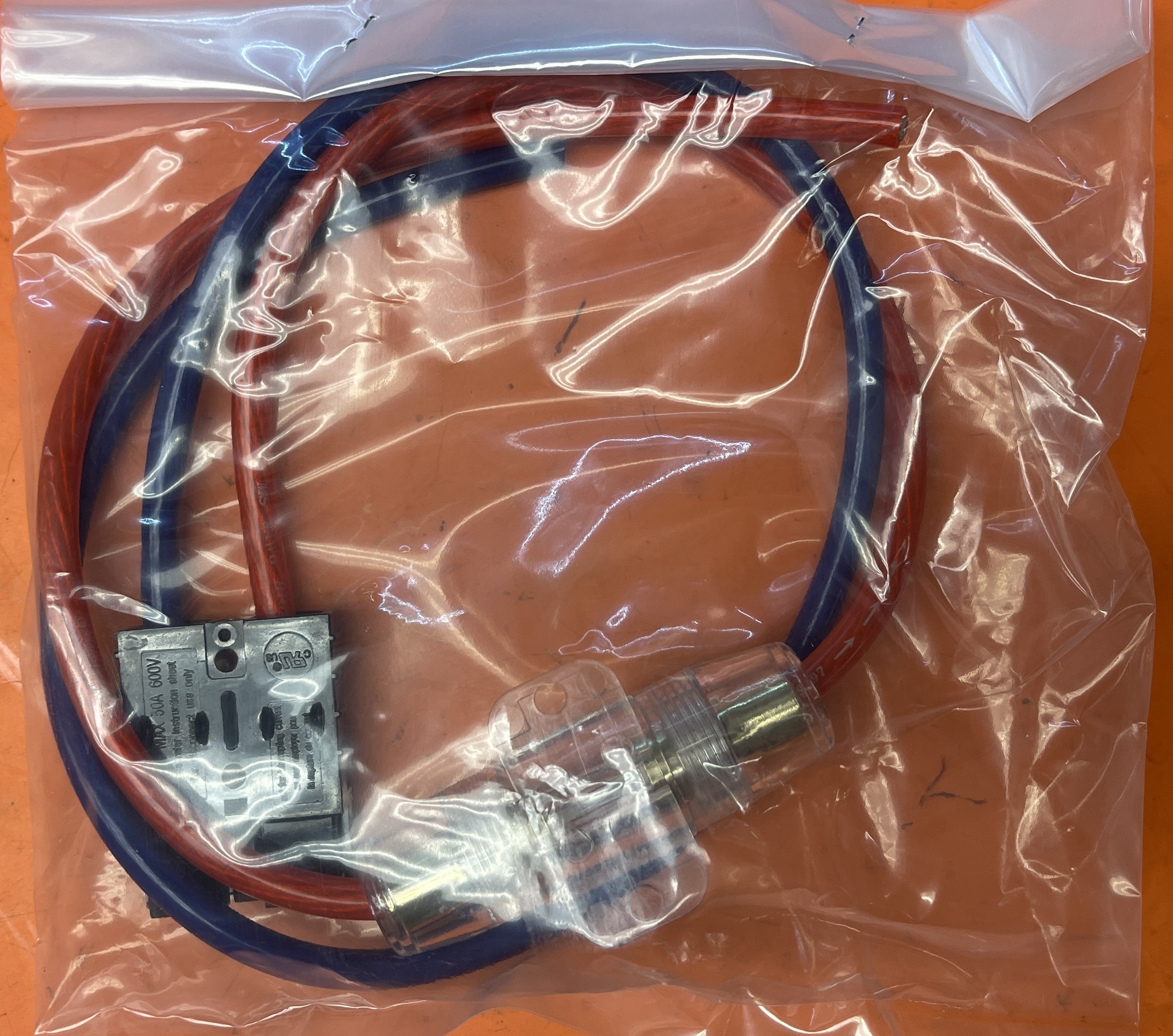

We will extend the short power cord (1 foot) to a full 10 feet with HQ 8 Gauge Power wire. Assemble the OEM Anderson connector and fuse holder to make a complete power cord.*** THIS IS SOLD WITH RADIO ONLY *** $25

Power Cord 8 Gauge COMPLETE 8G Power cord for second vehicle or location using a new Anderson  and New fuse holder. $38
Super Sized power CordNEW DC Cord using radio sized Anderson connector, AGU Fused at 60A  with 4 gauge wire (12 feet) and Brass Lugs for the battery. $89
Colors
StarbryteInstall Star-Bryte Knobs with dimmer control circuit  integrated into the radios dimmer. Includes a 6 Knob set , parts and labor. $172
Colors
Rings OnlyInstall Star-Bryte Rings behind the factory knobs with dimmer control circuit  integrated into the radios dimmer. Includes a 6 LED Rings , parts and labor. $136

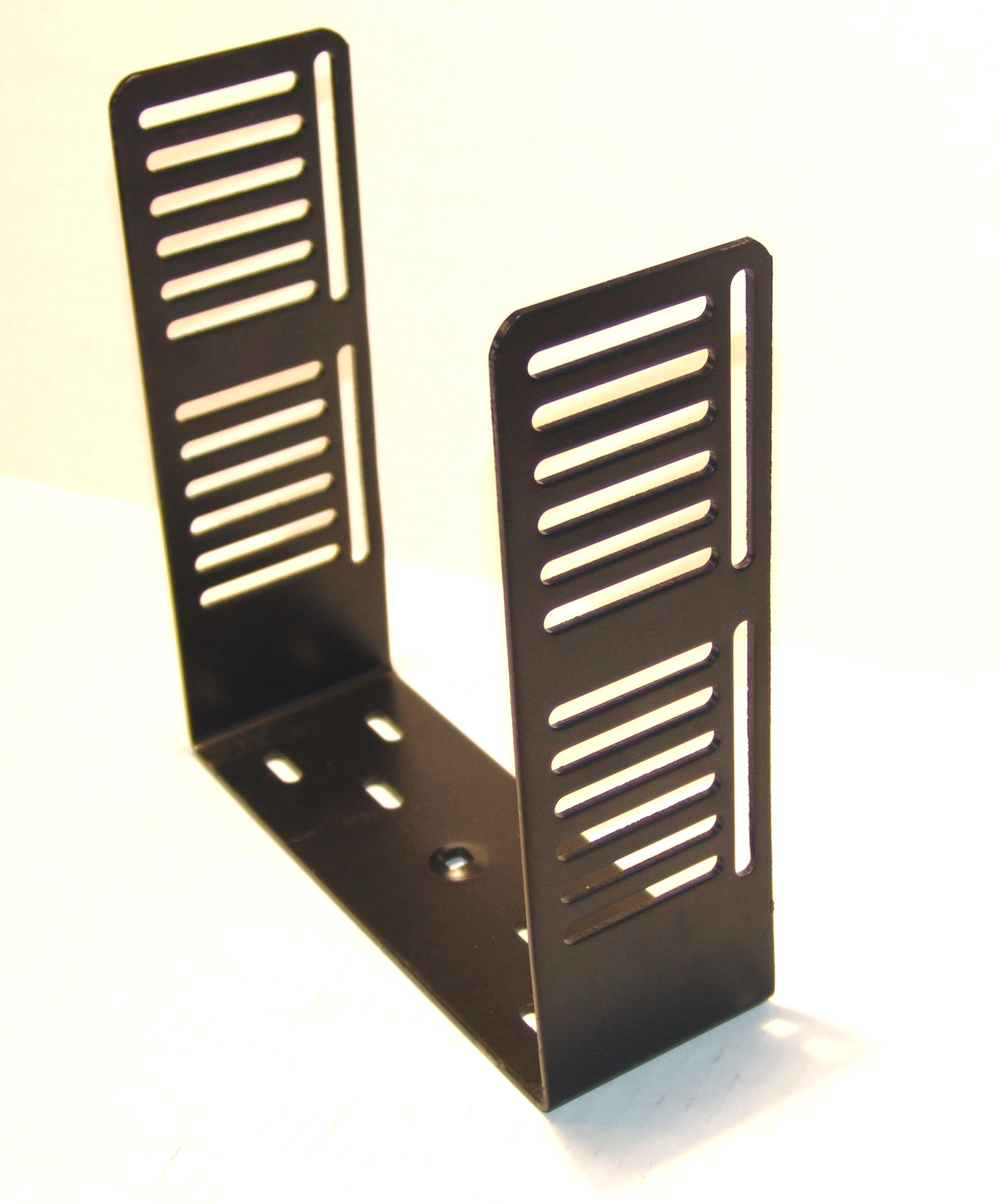

  Swivel Bracket TALL $35
  Tall Radio
8" x 4 1/2"x 3"
$10
  EXTRA Tall Radio
8"W x 9"H x 3"
$12

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM/FM 4 ~ 40w 4 ~ 40w 4 ~ 40w
PEAK AM 60~ 173w 8 ~ 41w 72 ~ 250w
02/07/24
With optional
AMP switch OFF
Dosy Bird RMS *Bird 43P
AM/FM .3 ~ 3w .3 ~ 3w .3 ~ 3w
PEAK AM .7 ~ 6w .6 ~ 3.5w 4 ~ 22w
*The most informative and the one we use.


GENERAL

Frequency Range 28.065 to 28.505 MHz
Frequency Control  Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance 0.005%
Frequency Stability 0.001%
Operating Temperature -30 °C to +50 °C.

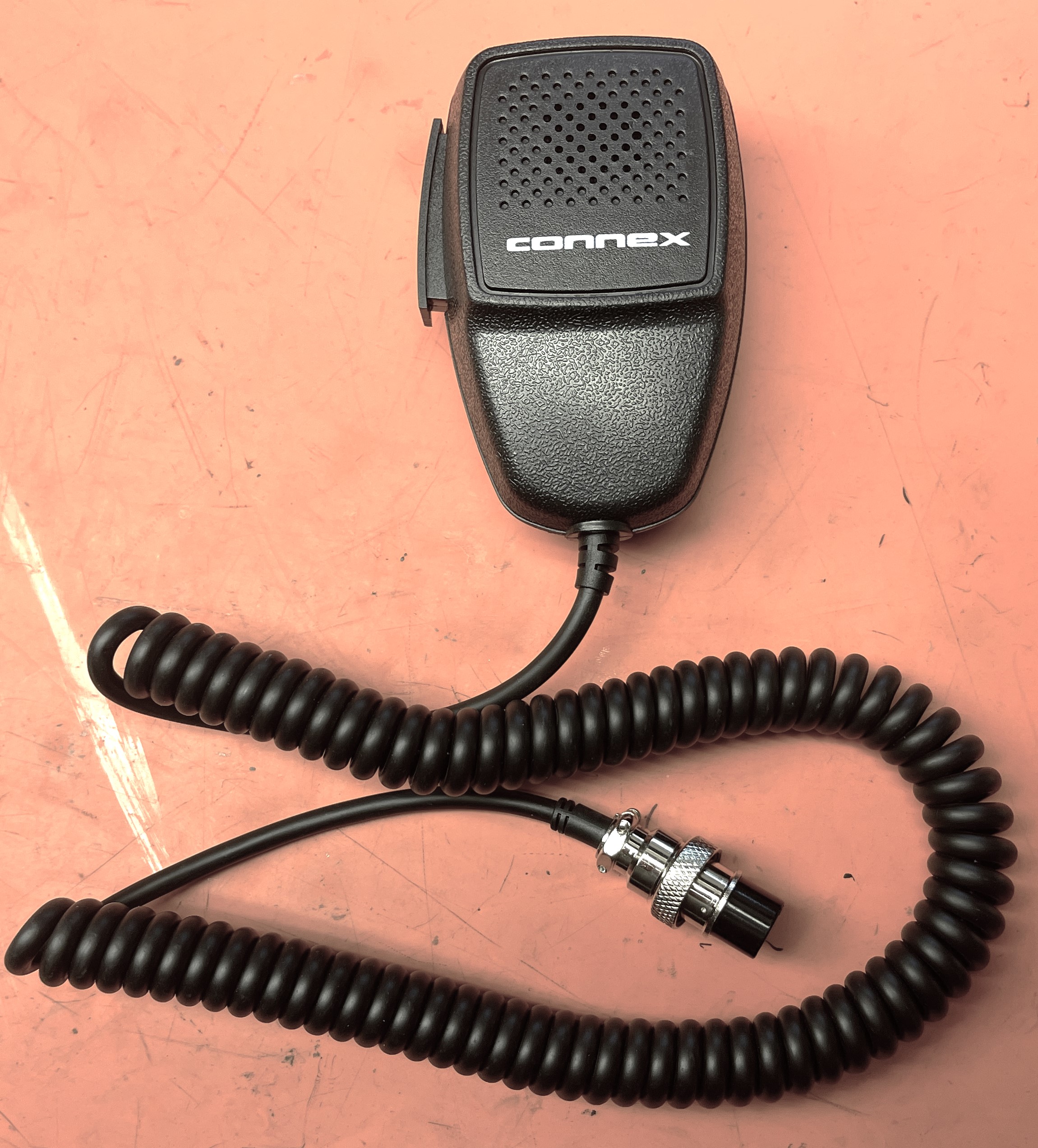

Microphone Plug-in dynamic; with push-to-talk switch and
coiled cord.
Input power 13.8V DC nominal, 15.9V max, 11.7V min.(Positive or negative ground).

Transmit:

AM/FM Hi Power 25A.

Receiver:

Squelched, 0.3A.
  Maximum Audio output, _ 0.7A.
Size

 Size 7 3/4" x 2 7/8" x 10 1/4"

Weight 12.0 1bs.
Antenna Connector UHF, SO239
Meter Illuminated; indicates relative output power,
received signal strength.

Transmitter

Power output AM/FM, - Selectable 40W/4W
AM Peak Power  150+ Watts.
Modulation High-and low-level Class B, AM
Variable capacitance FM.
Spurious Emissions 60 dB
Frequency Response AM and FM: 450 to 2500 Hz.
Output Impedance 50 ohms, unbalanced
Output Indicators  Meter- shows relative RF output power.
Transmit LED glows red when transmitter is
in operation.

Receiver

Sensitivity AM: 0.5 mV for 10 dB (S+N)/N at greater than
½ -watt of audio output.
  FM: 1.0 mV for 20 dB (S+N)/N at greater than
½-watt of audio output.
Selectivity AM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz.
Image Rejection More than 65 dB.
IF Frequency  AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
Adjacent-Channel
Rejection
60 dB AM
RF Gain Control 45 dB adjustable for optimum signal
reception.
Automatic Gain Control
(AGC)
Less than 10 dB change in audio output for
inputs from 10 to 100,000mV.
Squelch Adjustable; threshold less than 0.5 mV.
ANL Switch-able
Noise Blanker  RF type
Audio Output Power 4 watts into 8 ohms.
Frequency Response 300 to 2800 Hz.
Built-in Speaker 8 ohms, round. or External Speaker (Not Supplied) 8 ohms; disables internal speaker when connected.
