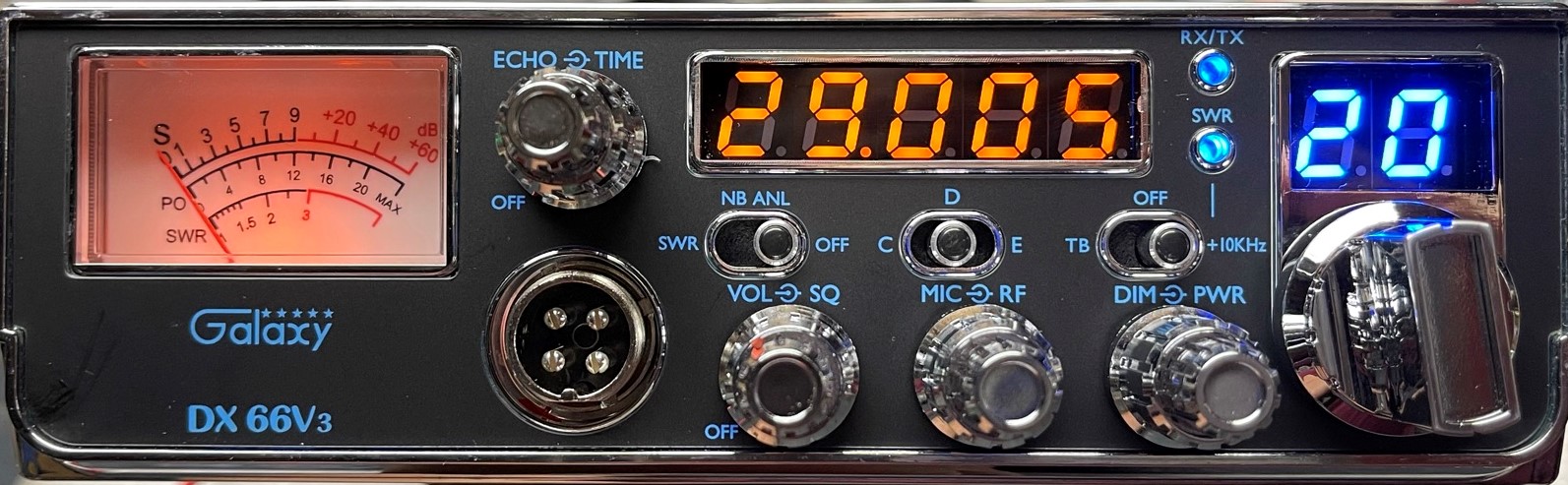

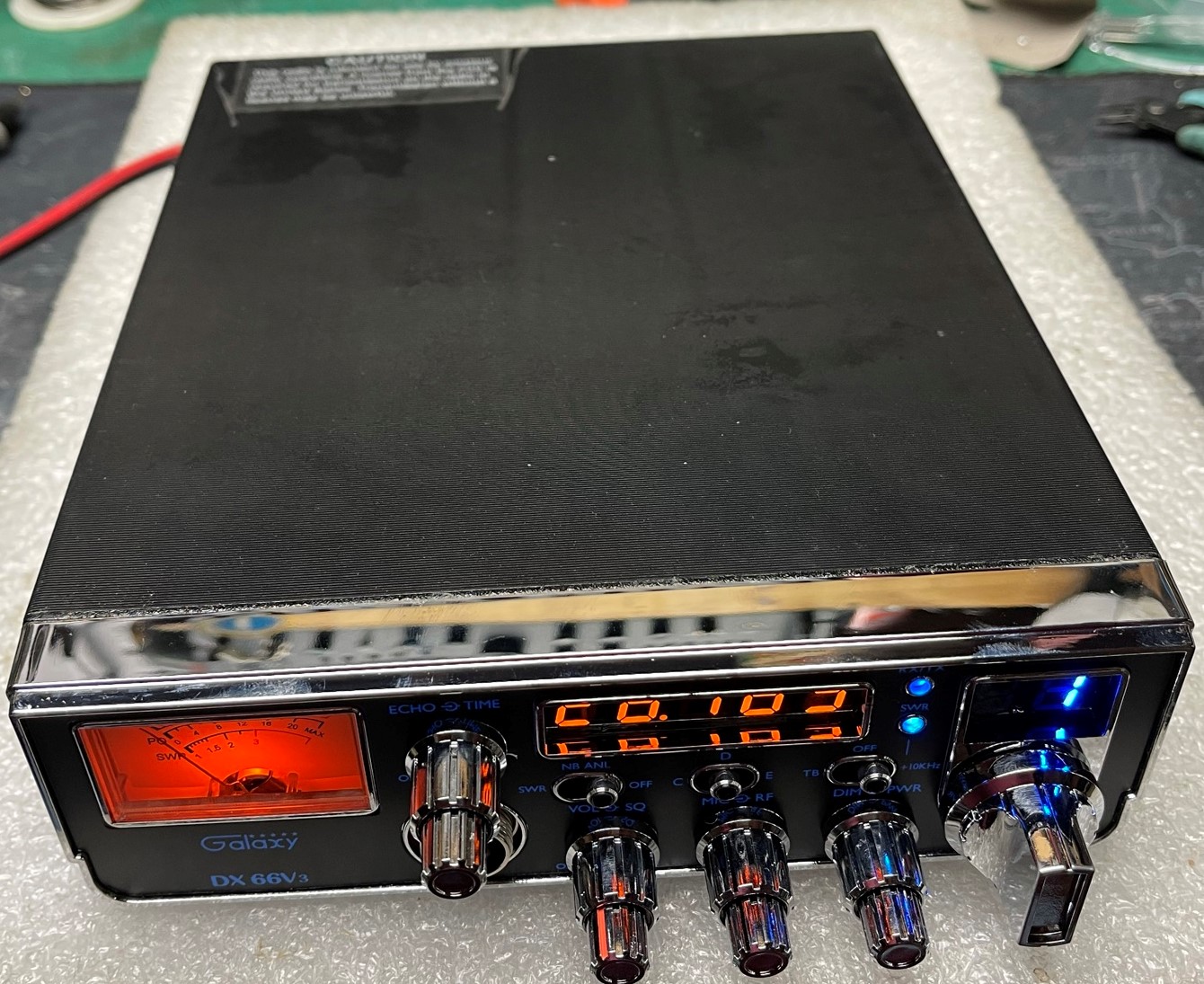

  Galaxy DX-66V3

Click for larger image

DX 66V3
AM 10 Meter Radio
Download Manual
Features
  • mid size, front mic with frequency counter and backlit faceplate.
  • AM and PA only - no FM, no Clarifier circuit.
  • Built-in automatic SWR circuit and SWR alert LED
    with blue indicator for +10KHz.
  • Dual pot Echo circuit.
  • Talkback On/Off switch only. No Talkback volume pot.


DX-66V3


Galaxy radios sometimes have a small scratch or ding that the factory covers with touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Galaxy radio might though and I cannot control it.


Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.





SO-239As many of you may know;  Ranger, Galaxy and General radios have all had some poor tolerance coax connectors this last year (SO-239 on the back of the radio) . You have to wiggle the coax just right to get a good grab on the threads of the connector. They are too far “out of tolerance” and we can no longer accept it.       So we have started changing the coax connectors ourselves to a much higher quality SO-239 that will fit your coax nice and tight.  This has affected our selling price ($10) but we think you will agree that it is worth it.
 ... AM/FM 10 Meter...
 $284.50


Optional Accessories
   Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency
coverage)		 $39

RFX-95HD Final. Final. Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 20 watts with 90+ watts peak power. Amp on/off in the back. $189
  Perform Receiver improvement mods.
(These mods replace key RX parts and RX alignment for better sensitivity and selectivity)		 $26
  Turner RK-56 Noise Canceling microphone. (wired for this radio with a 4 pin plug) $46
  Astatic 636L Noise Canceling microphone. (wired for this radio with a 4 pin plug) $29
  Astatic RD104-E Amplified microphone.
 (wired for this radio with a 4 pin plug and a battery installed)		 $39

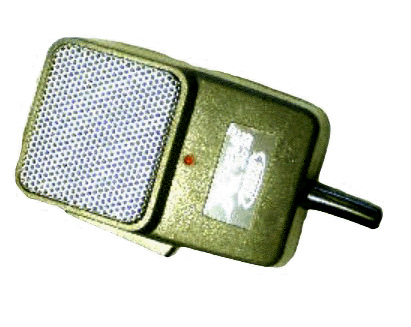

  EC2018XTR Xtreme Echo microphone.
(wired for this radio with a 4 pin plug and a battery installed)		 $69
  Install a Record/Playback Module 18 seconds (wired inside the radio with a switch on the side to record 18 seconds and to play it back) $77

Sound Byte Link

T
   Install a Noise toy.
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)		 $65

Sound Byte Link


   Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background music at very low volume so you can talk over it.) $65
  Install Star-Bryte Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $169
   Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
  Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25
 Exchange the top and bottom covers to Chrome Covers. $25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 1 ~ 10w 1 ~ 10w 1 ~ 10w
PEAK AM 4 ~ 22w 2 ~ 11w 12 ~ 50w
* The most informative and the one we use.

CB Microphone Wiring (Galaxy)


The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.
