Ranger Logo 10 Meter Mobile Radio

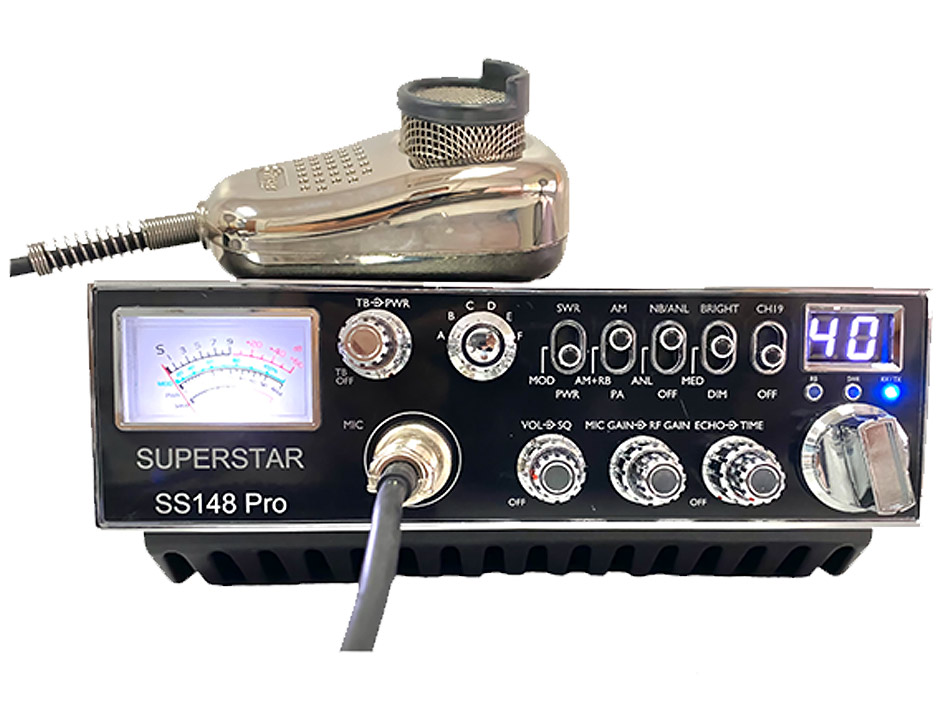

SS-148Pro

Click image for larger view

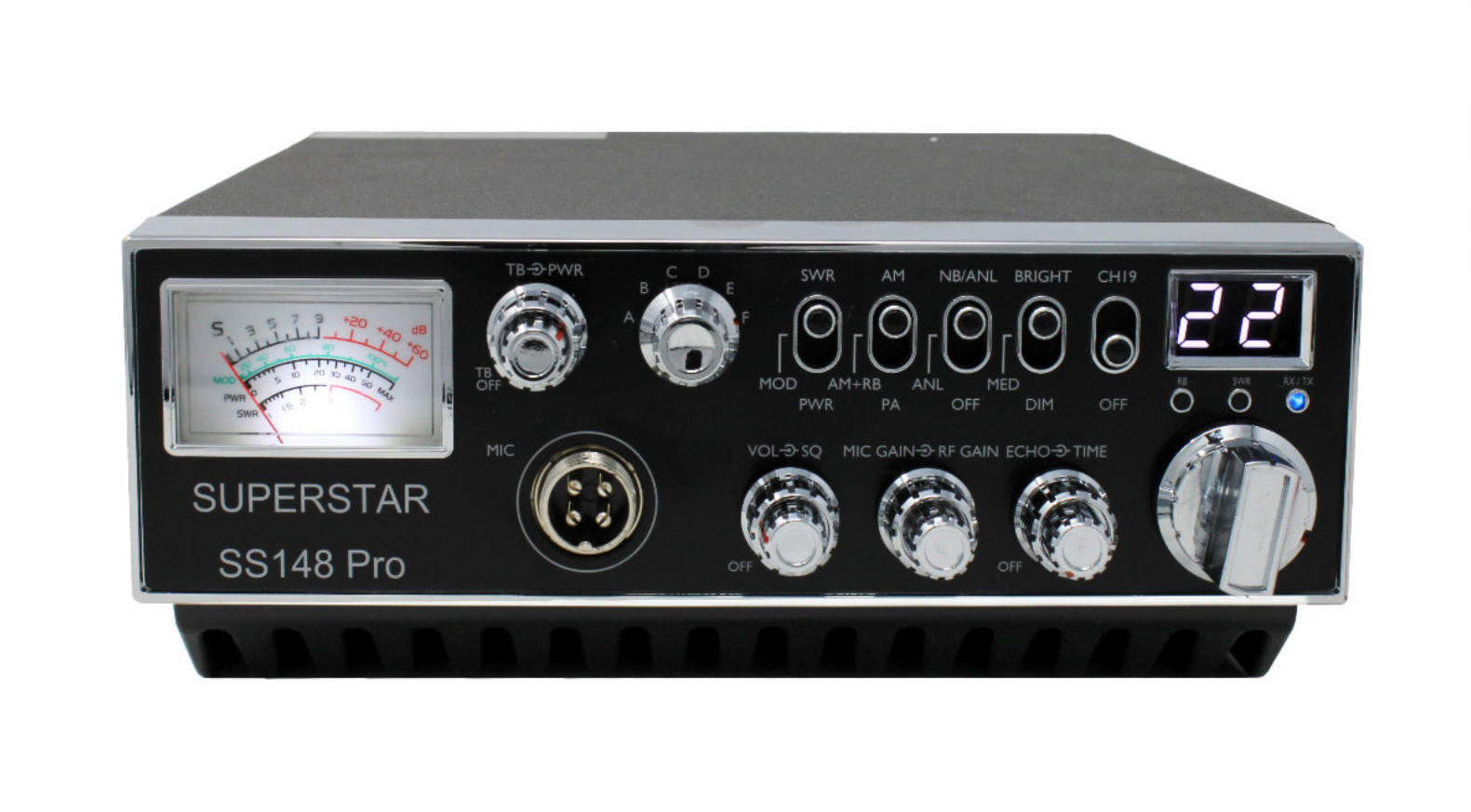

SS-148PRO
AM Mobile Radio
HIGH POWER

Download Manual

The SS-148Pro is a powerful 10 meter radio designed for user convenience. It boasts a high power 300 Watts PEP AM transmit power output and features a white LED display for clear visibility.

With timeless design, powerful performance retaining its classic and elegant design, this device is easy to operate and features high-power AM transmission.

 Paired with the SRA-198NC noise-cancelling microphone, it delivers clear and strong transmissions, ensuring your communication is always reliable and noise-free.

SS-158FB4


• 300+ Watt Final Amplifier
• Variable RF Power Control
• S/RF/SWR/MOD Front Panel Meter
• Real Channel Selector Control
• Variable Talk Back Control
•  Echo and Roger Beep
 • Cool white LED Channel Display

• 4pin Mic Jack
• Heavy Duty, High Power Heatsink

This may be one of those radios that the frequency counter counts up and  down, the last digit changing all the time.  Additionally the SSB frequency accuracy may drift with temperature changes. We have also found that when echo is turned OFF, that a little bit of tone can be heard on TX.  We cannot change these things, it has been that way with some radios for many years. If you can't live with it, please don't buy this radio. Thank you.









CB Microphone Wiring (Galaxy)





Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

Performance Tuned and Converted to CB?
...SS-148PRO AM Mobile Radio...

$539


Now comes with a great mic, the SRA-198 !!


Optional Accessories
Selected Above  Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $49
Switch Location
 Install a switch to turn off the 400w amp. Low power See power chart below. $15

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$43
SOLD OUT
  Install a Record/Playback Module 120 seconds (wired inside the radio with  two pushbuttons on the side to record 120 seconds and to play it back) $77
Switch Location

Install an external amplifier keying port or PTT OUT.  We use an RCA jack in the back for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector.
      1) Output RCA completely isolated  from the radio. +/- of RCA connects to a relay that isolates it from the radios circuits.
      2) Optional BYPASS switch in case your external device does not have one. (turns port off (stays open))
      3) Works all the time in high or low power modes..
      4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.
$49
/
$59
/
$69

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65

We will extend the short power cord (1 foot) to a full 10 feet with HQ 8 Gauge Power wire. Assemble the OEM Anderson connector and fuse holder to make a complete power cord (with ends).*** THIS IS SOLD WITH RADIO ONLY *** $25

Power Cord 8 GaugeCOMPLETE 8G Power cord for second vehicle or location using a new Anderson  and New fuse holder. $38
Klink-630 K-Link K-630 Brackets:
Sturdy Table top stands will make your longhorn into a base in no time.
$28
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Colors

Install  Star-Bryte Knobs  with dimmer control 7 Knob set parts and labor.

$224



Tuned up values on these watt meters
Dosy Bird RMS * Bird 43P
AM/FM
PEAK AM
SSB









We ask that if you may need Warranty service on this radio to please send directly to Ranger.  You can find all the information you need Here<---

 General
 Frequency Range

28.245 - 29.655 MHz

 Modes

AM / FM / USB / LSB / CW

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 30 ēC to + 50 ēC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

8.26 (W) x 11.02 (D) x 3.54 (H) Inches

 Weight

8 Lbs.

 Transmitter



 RF Power Output

AM-FM: 100W RMS
AM: 400W PEAK
SSB: 400W PEP

 Spurious Distortion

- 50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver



 AM Sensitivity for 10 dB SINAD

AM/CW : < 1.0μV ; SSB : < 0.25μV

 Squelch Sensitivity

<0.5 ĩV

 Image Rejection

More than 65 dB

 Audio Response

300 to 2500 Hz

 Audio Output Power

3W @ 10% THD
