Ranger Logo 10 Meter Mobile Radio


Click image for larger view

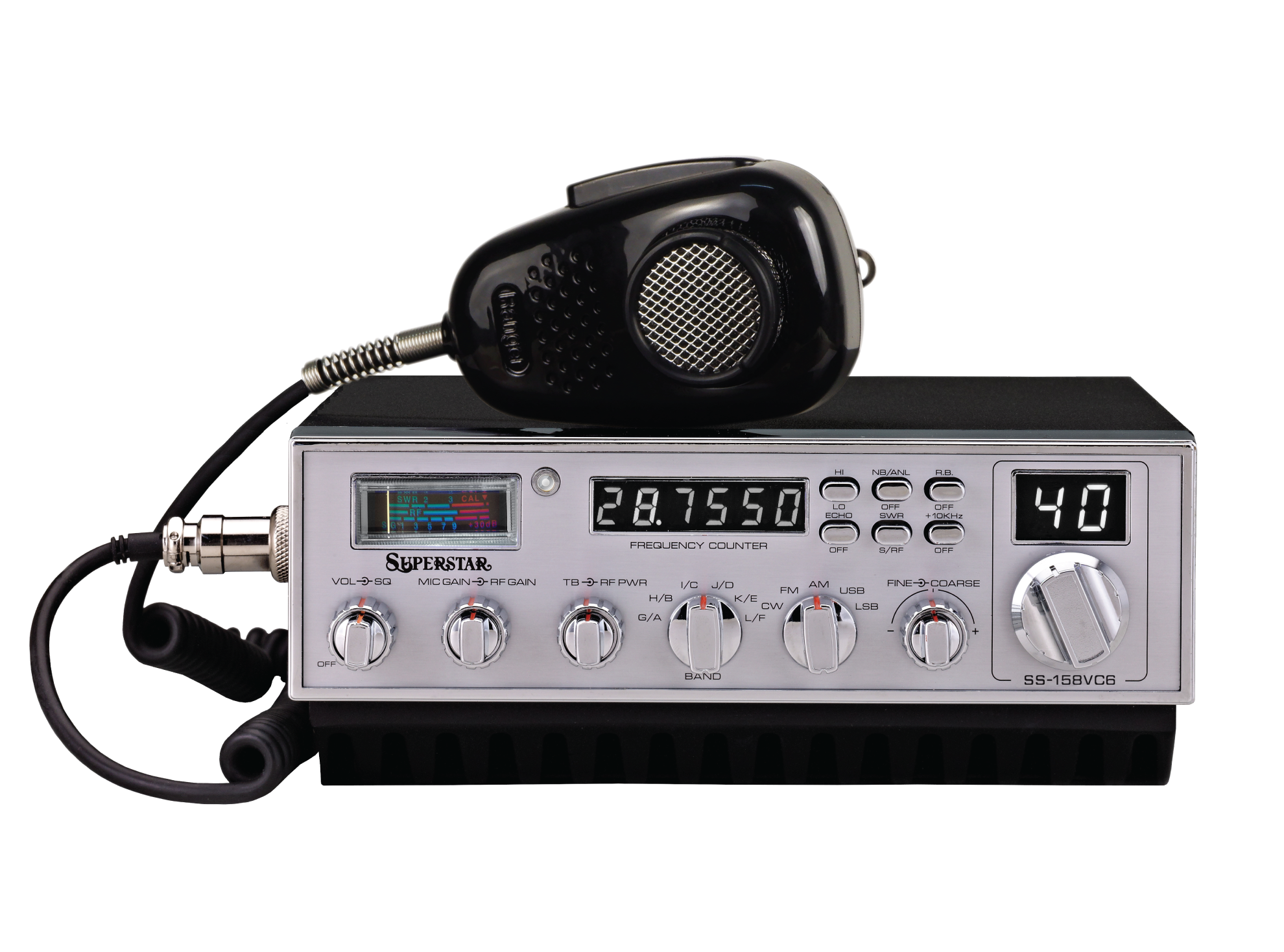

SS-158VC6
AM/FM/SSBCW Mobile Radio

Download Manual
Superstar SS-158VC6 AM/FM/USB/LSB/CW Amateur Mobile Transceiver The SS-158VC6 makes a powerful return, fully inheriting the advantages of its predecessor, the SS-158FB4.

With optimized transmission power and a redesigned cooling system featuring a new fan and vented top cover, it effectively enhances airflow, ensuring exceptional stability in SSB frequency performance.

Building on the traditional component mainboard design, the SS-158VC6 introduces several upgrades, including a white 6-digit frequency counter, channel display, and signal meter. It also supports adjustable RF power output for flexible transmission power settings. The auto-dimming feature intelligently adjusts screen brightness according to ambient light, significantly enhancing practicality and user experience. Specifically designed for mobile applications, the SS-158VC6 is easy to operate, offers stable performance and provides outstanding value, making it an ideal choice for SSB mobile communication.

  • 400+ watt final amplifier

  • AM/FM/SSB/CW mode

  • Consistent and stable SSB frequency performance

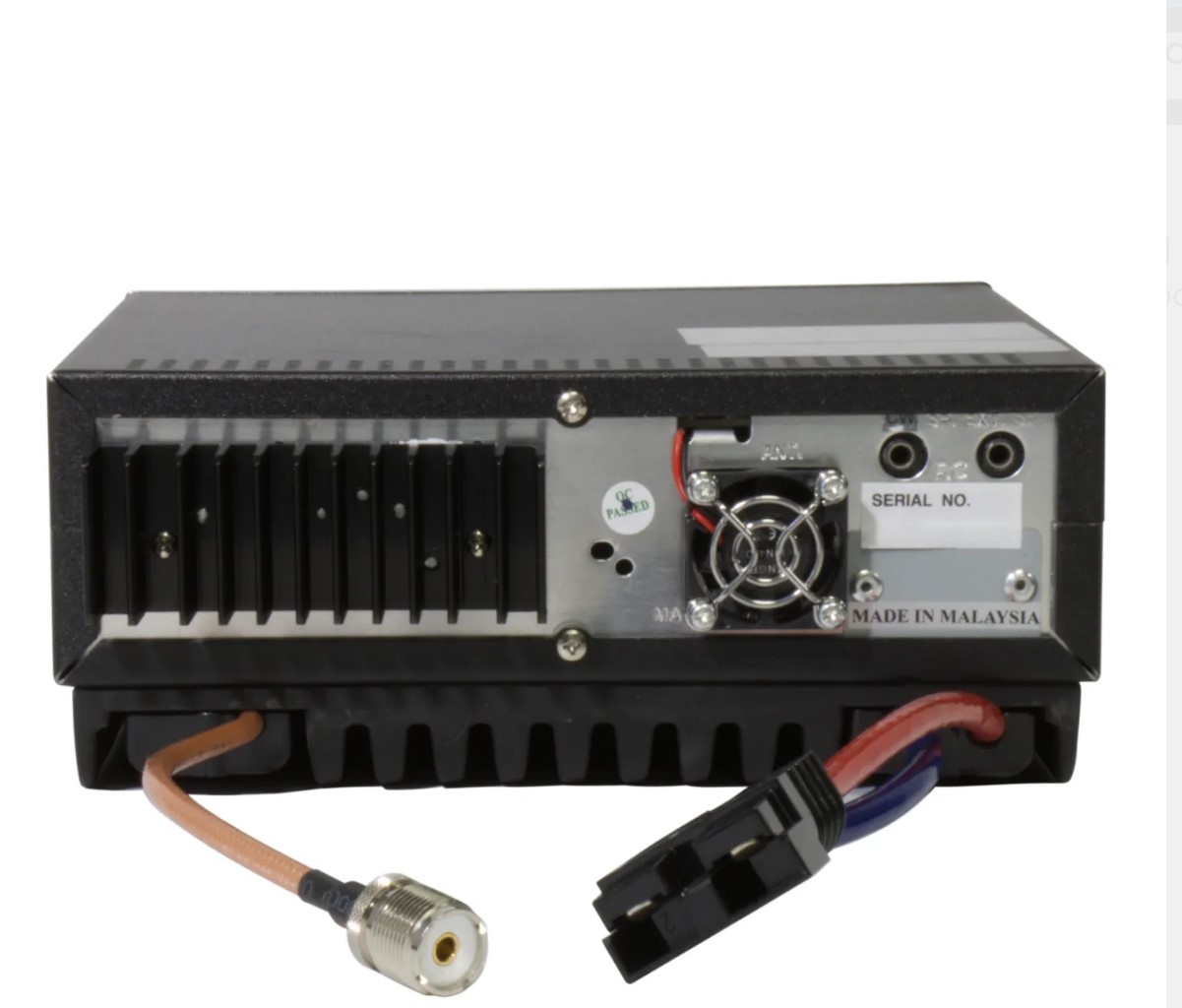

  • Incorporates a cooling fan, Louvered top cover for air flow

  • Variable RF power output control, adjusts your deadkey power

  • Featuring a traditional component main board

  • The auto dim feature adjusts brightness according to ambient light levels

  • Six digit frequency counter & Cool White LED meter & display lights

  • Variable talk-back control

  • Build in meter to monitor signal strength,

  • RF output & SWR Clarifier- fine/coarse control

  • Classic chrome front panel

  • Build In echo & time function

  • SRA-198NC noise cancelling microphone

This is one of those radios that the frequency counter counts up and  down, the last digit changing all the time.  Additionally the SSB frequency accuracy may drift with temperature changes. We have also found that when echo is turned OFF, that a little bit of tone can be heard on TX.  We cannot change these things, it has been that way with some radios for many years. If you can't live with it, please don't buy this radio. Thank you.

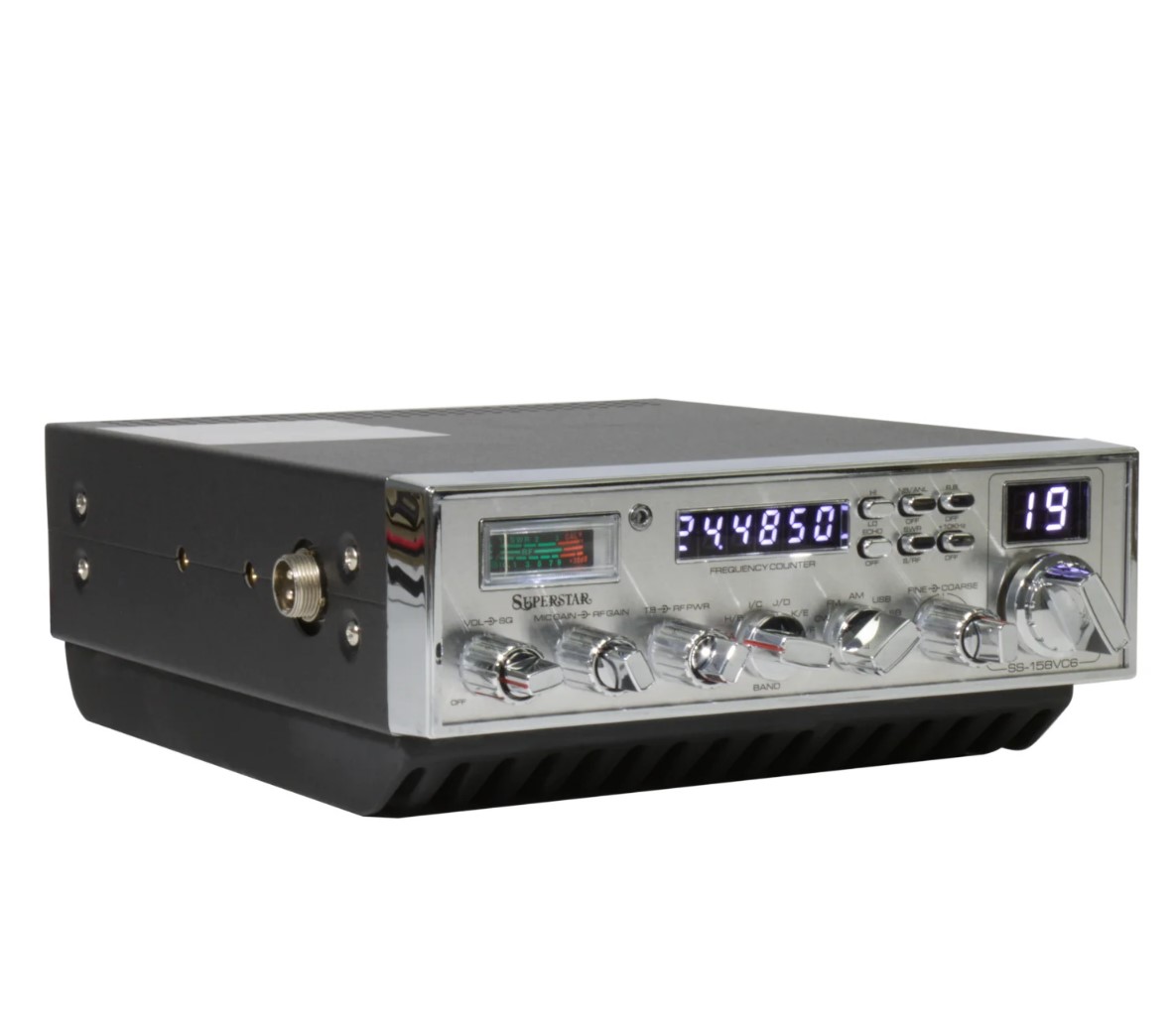

Superstar SS-158VC6Superstar SS-158VC6

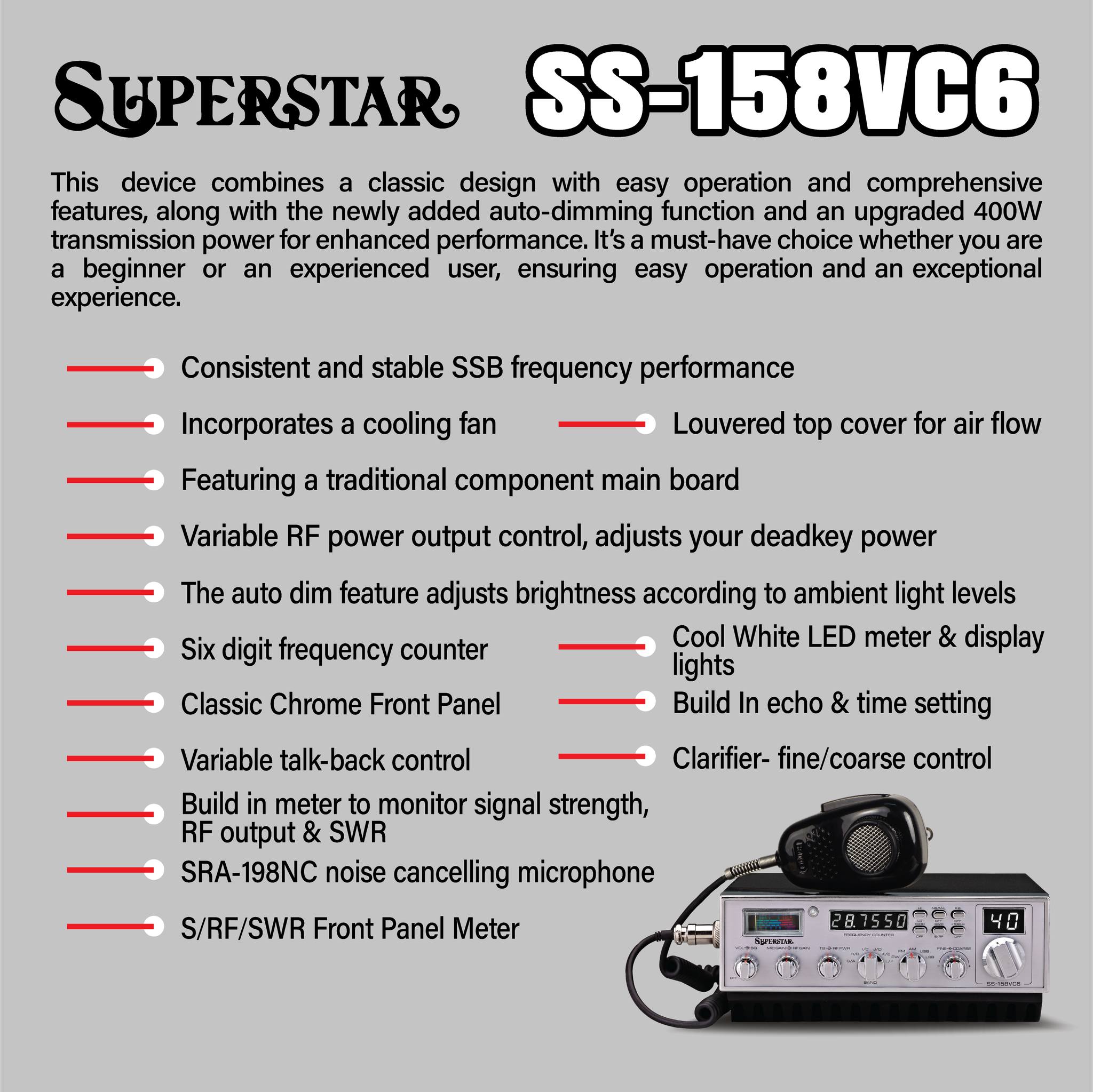

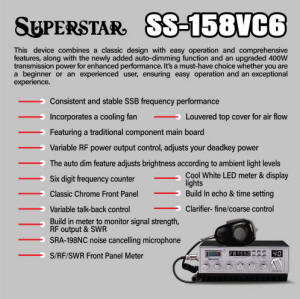

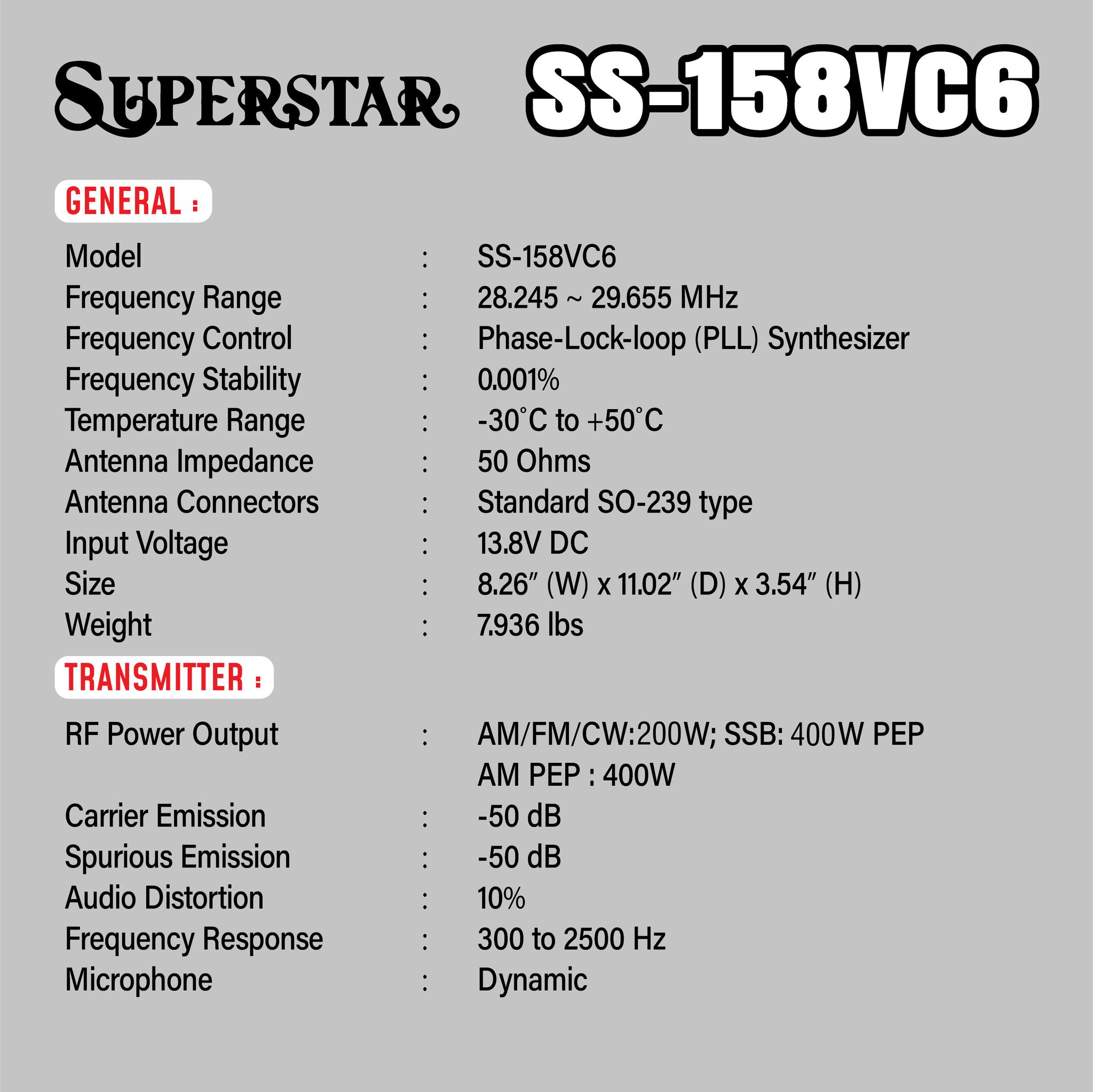

Superstar SS-158VC6_flyer_1Superstar SS-158VC6_flyer_5

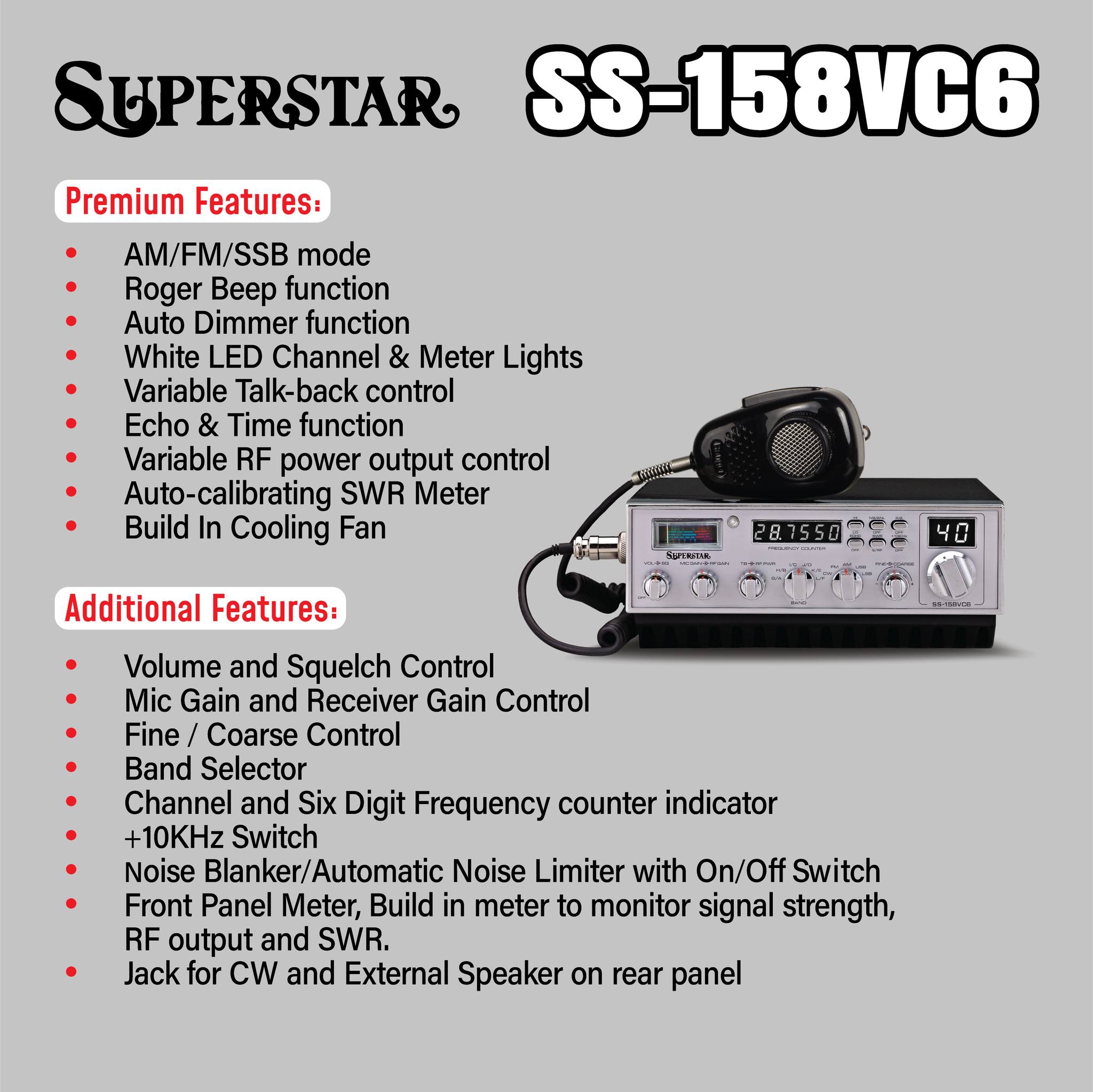

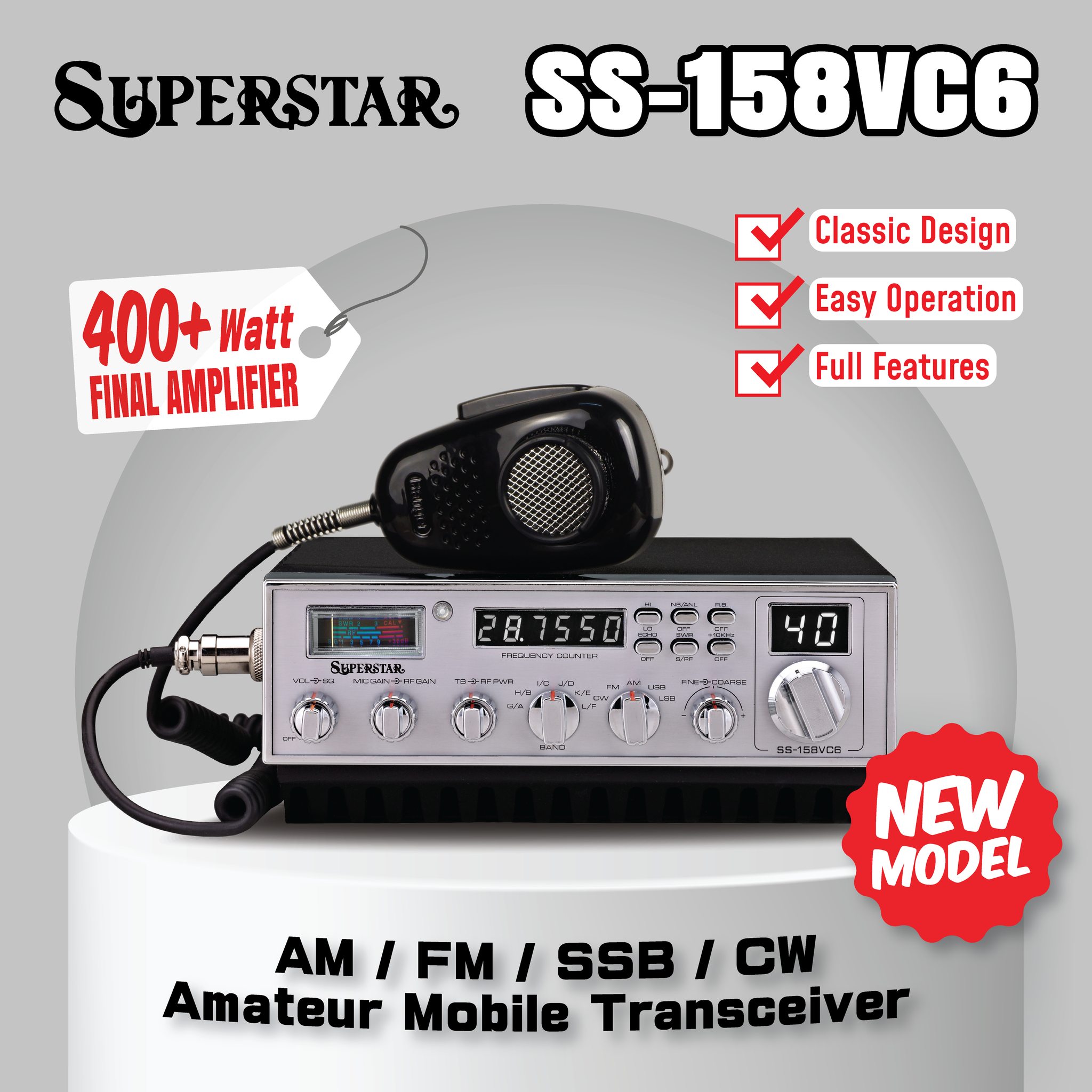

Superstar SS-158VC6_flyer_3Superstar SS-158VC6_flyer_4

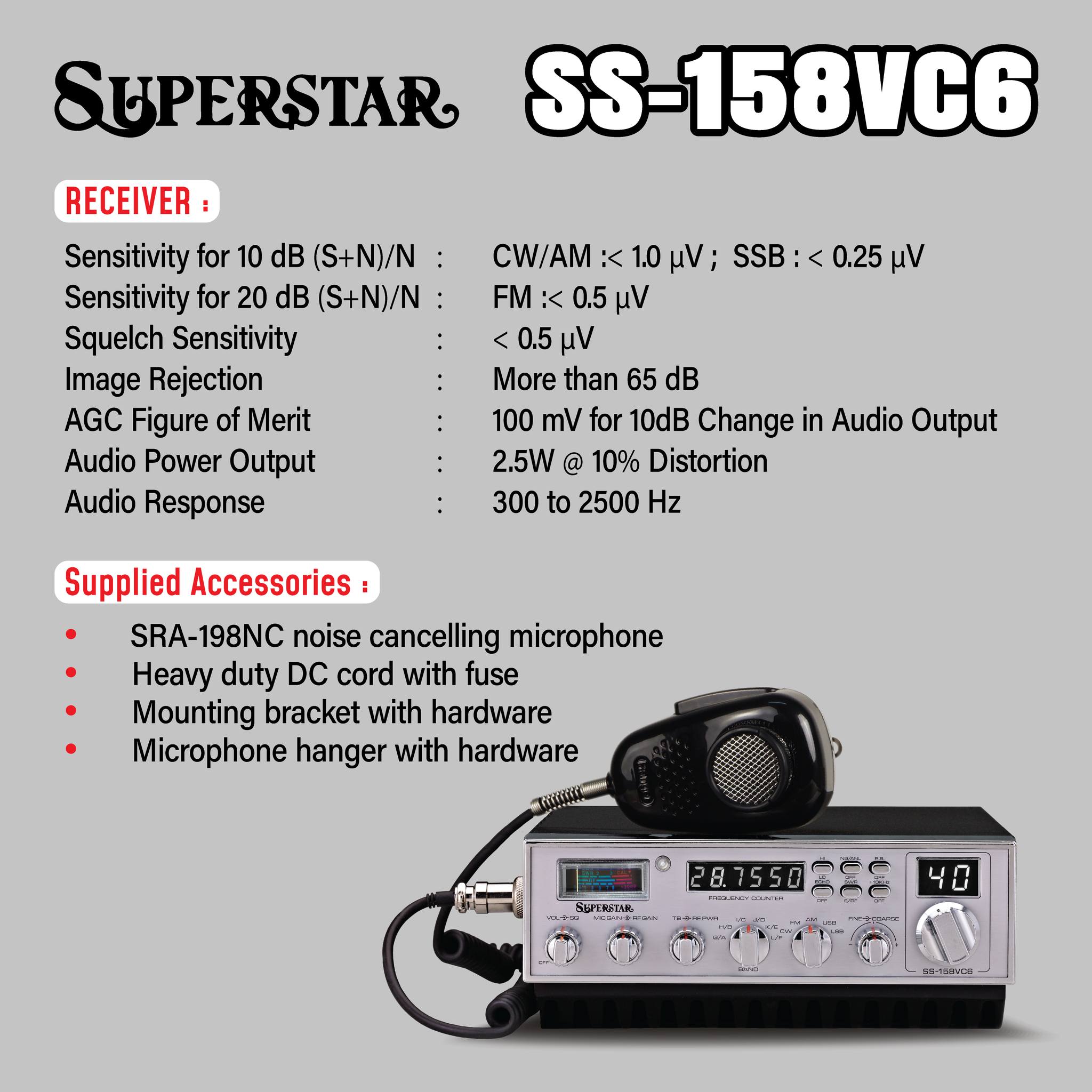

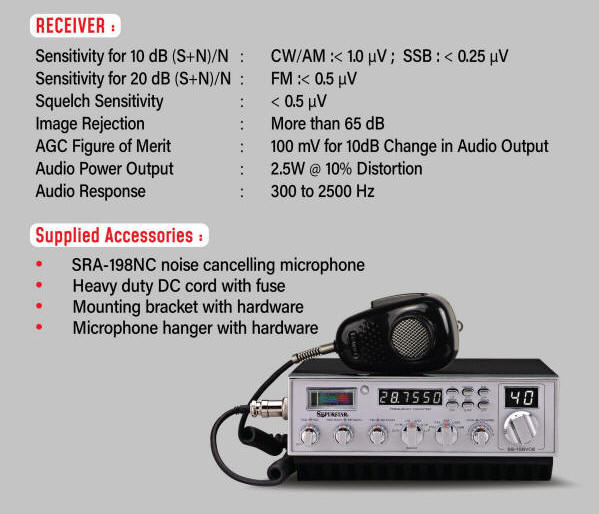

Superstar SS-158VC6_flyer_2



CB Microphone Wiring (Galaxy)





Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca
Performance Tuned and Converted to CB?
 		 ...SS-158VDXAM/SSB Mobile Radio...

$649.50


Now comes with a great mic, the SRA-198 !!


Optional Accessories
Selected Above  Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $49
Switch Location
  Install a switch to turn off the 400w amp. Low power See power chart below. $15

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)		 $46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)		 $29
 Astatic RD104-E Amplified microphone.
 (wired for this radio with a 4 pin plug and a battery installed)		 $43
Switch Location
 		 Install an external amplifier keying port or PTT OUT.  We use an RCA jack in the back for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector.
      1) Output RCA completely isolated  from the radio. +/- of RCA connects to a relay that isolates it from the radios circuits.
      2) Optional BYPASS switch in case your external device does not have one. (turns port off (stays open))
      3) Works all the time in high or low power modes..
      4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.		 $49
/
$59
/
$69
SOLD OUT
  Install a Record/Playback Module 120 seconds (wired inside the radio with  two pushbuttons on the side to record 120 seconds and to play it back) $77

Sound Byte link


SOLD OUT
  Install a Noise toy
 (wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)		 $65

Sound Byte link


SOLD OUT
  Install a Noise toy as a background theme music
 (wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)		 $65

 We will extend the short power cord (1 foot) to a full 10 feet with HQ 8 Gauge Power wire. Assemble the OEM Anderson connector and fuse holder to make a complete power cord (with ends).*** THIS IS SOLD WITH RADIO ONLY *** $25

Power Cord 8 GaugeCOMPLETE 8G Power cord for second vehicle or location using a new Anderson  and New fuse holder. $38
Klink-630 K-Link K-630 Brackets:
Sturdy Table top stands will make your longhorn into a base in no time.		 $28
 Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
 Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25
Colors

Install  Star-Bryte Knobs  with dimmer control 7 Knob set parts and labor.

 $224



Tuned up values on these watt meters
Dosy Bird RMS * Bird 43P
AM/FM
PEAK AM
SSB









We ask that if you may need Warranty service on this radio to please send directly to Ranger.  You can find all the information you need Here<---

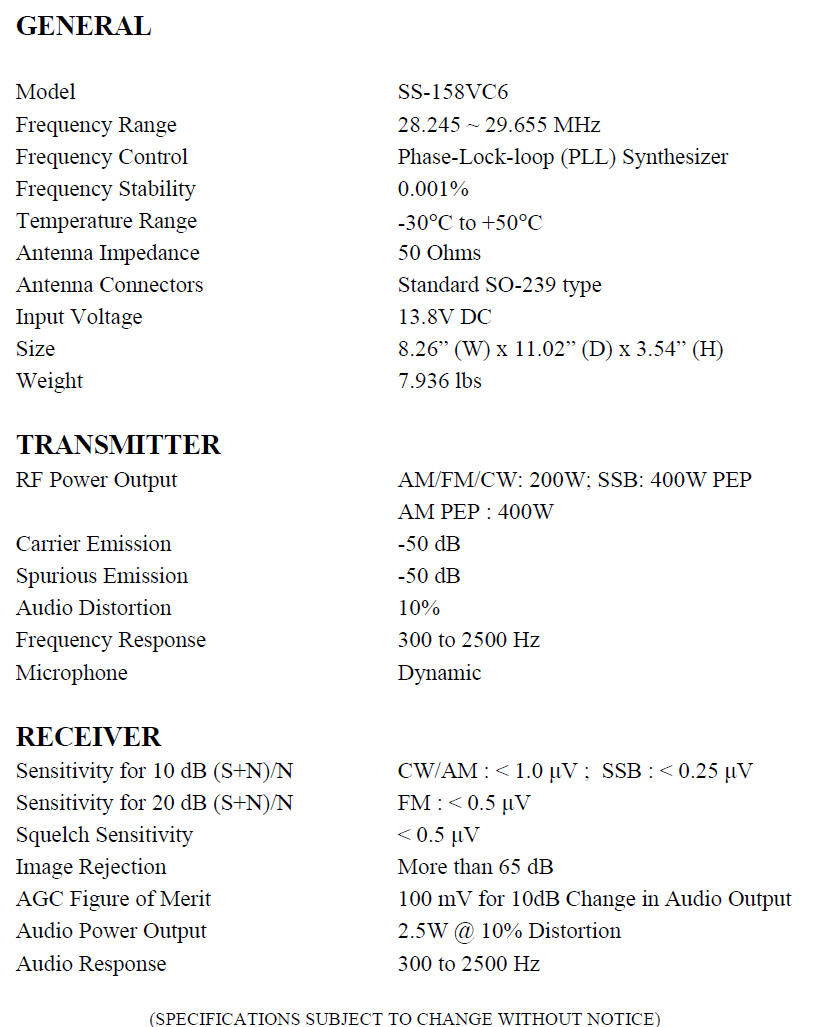

Specs
