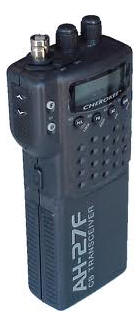

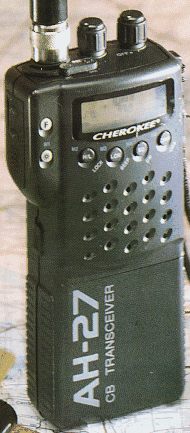

Cherokee AH-27

Orders with radio work are delayed 3 - 10 days

Features

Channel or 5 digit Frequency display

Unique miniature design fits perfectly in even the smallest hand
(5"H x 2 1/4"W x 1 1/4"D)

Easy to read digital "Information Center" provides complete operating information

Proprietary "Battery Life Enhancement Circuitry" dramatically extends talk time

Instant "Emergency" channel access

Slide-on rechargeable battery system

40 Channel Capacity

Maximum 4 watts power output

Channel Scan

Last Channel Recall

Five Memory Locations for storing your most used channels

15 Segment Signal Strength Meter

Hi/Low Power Selection

Dual Watch Channel Monitor

Key Lock

Wrist Strap and Belt Clip

Squelch Control

Flexible Antenna

Complete offering of accessories, such as carrying case, speaker microphone, in-car kits, and many, many more.

Tune-up. (perform a tune-up to radio to increase power, audio and performance)

Tune-up and modify for 200 channels. (Operate from 26.065 to 28.305)

Longer Antenna HT-1 (27" Metal telescopic)

Longer Antenna HT-2 (27" Rubberized Flexible)

SPM-1 Speaker Mic Speaker/ Lapel microphone. (ready with a plug for this radio )

Motorcycle Helmet Kit (plugs into top of the radio)

Throat microphone- Military Style
(plugs into topof the radio)

Earbud Microphone
(plugs into top of the radio)

Astatic D104-M6b Amplified microphone.
(wired for the radio and a Duracell battery added) (Special HT wiring)

Astatic RD104E Amplified microphone.
(wired for the radio and a Duracell battery added) (Special HT wiring)

Add a Small External Speaker
(plugs into top of the radio for improved sound)

Add a Large External Speaker
(plugs into top of the radio for improved sound)

Customer recommended RAM handlebar mount.

(NOT sold here)

GENERAL
Channels	40
Frequency Range	26.965 to 27.405 MHz.
Frequency Control	Phase Lock Loop (PLL) synthesizer.
Frequency Stability	0.001%.
Operating Temperature Range	-5° F to +140° F
Power Source	DC 7.2V to 13.8 V
Size	5.5”(H) x 2.5”(W) x 1.25”(D).
Weight	8 oz. w/o batteries
Antenna Conductor	BNC
TRANSMITTER
Power Output (@12V)	High:4 watts. Low: 1 W
Modulation	Amplitude Modulation.
Current Drain:	Less than 1200 mA.
Frequency Tolerance	+/- 400 Hz Max
RECEIVER
Sensitivity	0.7 mV for 10 dB (S+N)/
Image Rejection	More than 70 dB.
Audio Output Power	400 mw
Frequency Response	300 to 3000 Hz.
Standby Current	35 mA w/o battery save mode
External Speaker (Not Supplied)	8 ohms; disables internal speaker when connected.
