29NWLTD FAce

29 NW LTD

Download Manual

Features

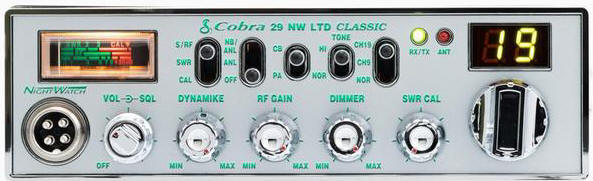

  • NightWatchTM Illuminated Front Panel.
    Ideal for switch and control recognition day or night.
  • Dimmer Control Adjusts brightness of the front panel, channel display and signal strength meter.

  • 4 Watts AM RF Power Output
    The maximum allowed by law.
  • Instant Channel 9 and 19
    Instant access to emergency channel 9 and information channel 19.
  • 9 Foot Microphone Cord
    For easy reach within any area of the vehicle.
  • Tone Control
    3 position control allows fine tuning of audio levels.
  • Adjustable Dynamike Boost
    Dynamically boosts microphone for increased voice clarity.
  • Tactile Controls
    Allows you to actually feel where the dial is in it's rotation without taking your eyes off the road.
  • PA Capability
    Use CB radio as a Public Address System with PA speaker. Receive signals can also be monitored through PA.
  • NB Switch-able
    For increased noise reduction.
  • Front Microphone Connector
    Allows convenient installation to be in dash or under dash.



Cobra_29_NWLTD_rear

Cobra_29NWLTD_face_mic







The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.



SOLD OUT
40 Channel Mobile CB radio $125.50




Optional Accessories

  Tune-up. Perform a tune-up to radio to increase power, audio and performance.  AM carrier 6 watts and 25-30 watts peak power. $29

 NEW MOSFET Final. (perform a tune-up to radio to increase power, audio and performance and replace the bipolar transistor final with a higher power MOSFET) AM carrier 6 watts and 38-45 watts peak power. $59

 Low Dead Key (carrier). (perform a tune-up to radio to increase peak power with loud audio a lower carrier (dead key). This is perfect to match many amplifier types. $49

VARIABLE POWER Install a power regulator / super modulator circuit and a new variable front panel control. Installed in the dimmer location. Perform a tune-up to the radio. Increased peak power  and audio  performance. Smooth Variable AM carrier from .5 to 6 watts variable. $79

 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26

 Install a Lescomm 120 Channel Frequency Kit
(This mod adds a 3 position switch to the left side of the radio to access 120 channels) Tune-up Included.
$129

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
SOLD OUT
 Astatic D104-M6b Amplified microphone.
(wired for this radio with a four pin plug and a battery installed)
$41
SOLD OUT
EC2018XTR Xtreme Echo microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$69
 Install an Echo Board.
(
Front Dimmer location)

(wired internal to the radio with dual controls in the front  to control speed and echo effects)
$65
or
$75
 Install an Echo board. (Side)
(wired internal to the radio with dual controls on the left side to control speed and echo effects)
$65
or
$75
Switch Location
 Install Talkback
(wired inside the radio so that when you talk you can hear yourself. If you chose an Echo or a Recorder mod, I highly suggest this as well)
$10
or
$15
Sound Byte link
SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65
Sound Byte link
SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
SOLD OUT
  Install a Record/Playback Module 18 seconds (wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back) $77
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Colors

SOLD OUT
Install Star Brite Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $154

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications. To be posted on YouTube, Subscribe to my YouTube Channel for notice. $19


Tuned up values on these watt meters
Dosy Bird RMS *Bird Peak
AM 6w 6w 6w
Peak 12w 6.5w 26w
Peak w/
MOSFET
18w 8w 42w
*
The most informative and the one we use.



SPECIFICATIONS
Unit Dimensions: 6-1/4 x 2-1/8 x 8-5/8
Microphone Type: 4 Pin Screw-On Dynamike
Frequency Control: Phase Lock Loop Synthesizer
RF Output Power: 4 Watts (Maximum FCC allowed)
CB Channels: 40 Channels (26.965-27.405 MHz)
Individual Carton Dimension: (in) 3.0 x 10-7/8 x 12-3/8









Cobra 2 Year Warrantee
