Bells CB Radio
  On eBay Bells CB Phone Number   Home Button

Contact Button


Click for larger image

29 LTD C

Chrome CB Radio

Download Manual


 Heavy Duty Microphone

    Contoured 4 pin  CHROME Dynamic microphone is ergonomically designed to better fit the palm of a hand. Dramatic styling includes engraved Cobra snake and rounded, sculptured surfaces.

Additional Features:

  • -BLUE Channel LED
  • -BLUE Illuminated S/SWR/RF Meter
  • -Variable Talk Back control
  • -Switch-able Noise Blanker
  • -Automatic Noise Limiter
  • -RF Gain Control
  • -Dynamic Control
  • -Instant Channel 9
  • -CB/PA Switch
  • -Dim/Bright Switch
  • -Delta Tune Control
  • -SWR Cal Control

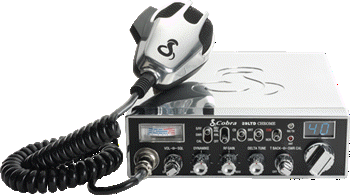

29 LTD CHR- Chrome Special Edition

BellsCB YouTube Videos -

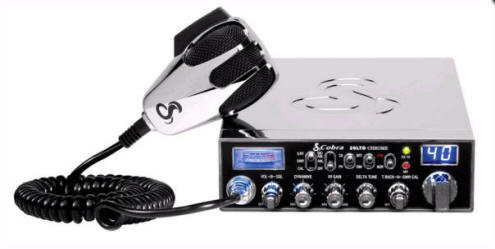

29LTD Chrome


The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.


Unit Dimensions: 7-1/4 x 2-1/4 x 8-5/8
Microphone Type: 4 Pin Screw-On Dynamike
Frequency Control: Phase Lock Loop Synthesizer
RF Output Power: 4 Watts (Maximum FCC allowed)
CB Channels: 40 Channels (26.965 to 27.405 MHz)
Individual Carton
Dimension: (in)
11-7/8 x 13-1/8 x 2-3/4


Cobra 2 Year Warrantee

For Operational or Technical Assistance with a Cobra Product call Cobra at 1-773-889-3087. You'll find answers to many of your questions in our Their FAQ's section. Cobra's automated help desk is available 24 hours a day 7 days a week. Live operators are available Monday through Friday 8 AM to 8 PM CST


...Cobra 29LTD...



Optional Accessories

 Tune-up. Perform a tune-up to radio to increase power, audio and performance.  AM carrier 6 watts and 25-30 watts peak power. $29

 NEW MOSFET Final. (perform a tune-up to radio to increase power, audio and performance and replace the bipolar transistor final with a higher power MOSFET) AM carrier 6 watts and 38-45 watts peak power. $59
 Low Dead Key (carrier). (perform a tune-up to radio to increase peak power with loud audio a lower carrier (dead key). This is perfect to match many amplifier types. $49
VARIABLE POWER Install a power regulator / super modulator circuit and a new variable front panel control. Installed in the delta tune location. perform a tune-up to the radio. Increased peak power  and audio  performance. Smooth Variable AM carrier from 1/2w to 6 watts variable. $79

RFX-150 FAN KIT Installed Install FOUR - 30 x 30 x 10mm Black Fans with a switch for on/off combined with the amp on/off switch. $69

 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
 Install a Lescomm 120 Channel Frequency Kit
(This mod adds a 3 position switch or you can use the NB/ANL switch to access 120 channels) Tune-up included

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
 Install an Echo Board.
(Front Delta Tune location)

(wired internal to the radio with dual controls in the front  to control speed and echo effects)

Sound Byte link

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)

Sound Byte link

 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
  Install a Record/Playback Module 18 seconds (wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back) $77
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
 Add a Large External Speaker
(plugs into back of the radio for improved sound)

Install Star Brite Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $154


Tuned up values on these watt meters
Dosy Bird RMS *Bird
AM 6w 6w 6w
Peak 12w 6.5w 25w
Peak w/
22w 8w 38w
Most informative and the one we use.
