CAT Enterprises



 Orders requiring technical work are shipped in about 7-14 days.



    Click image for larger view

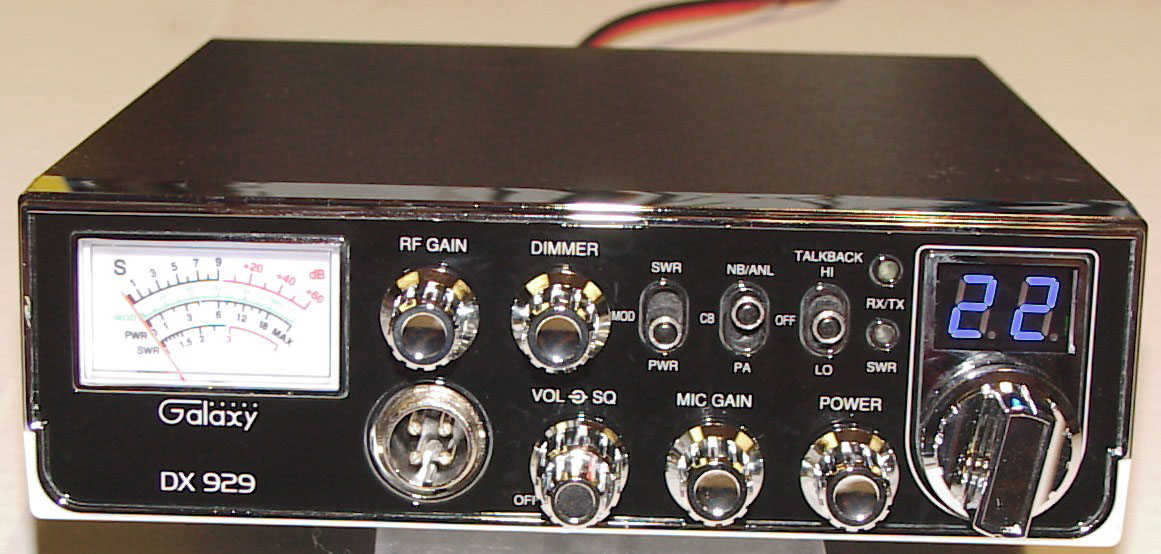

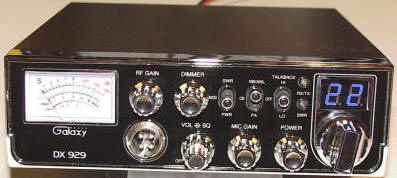

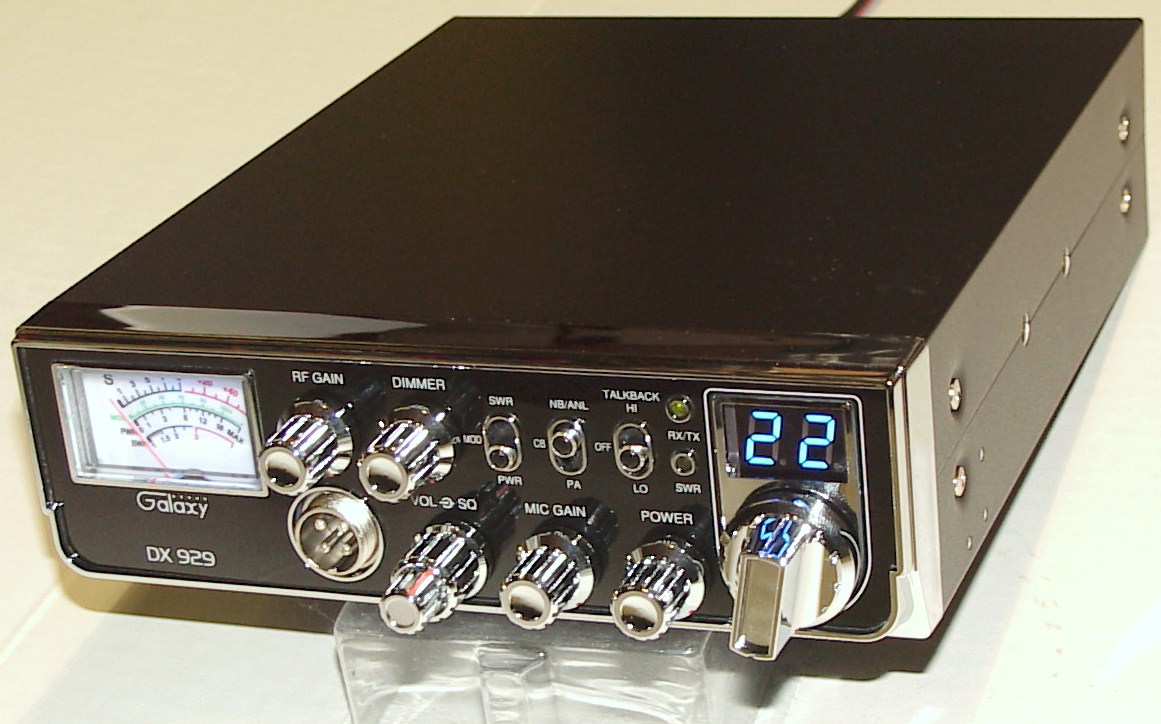

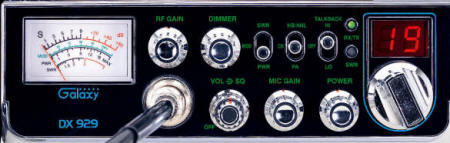

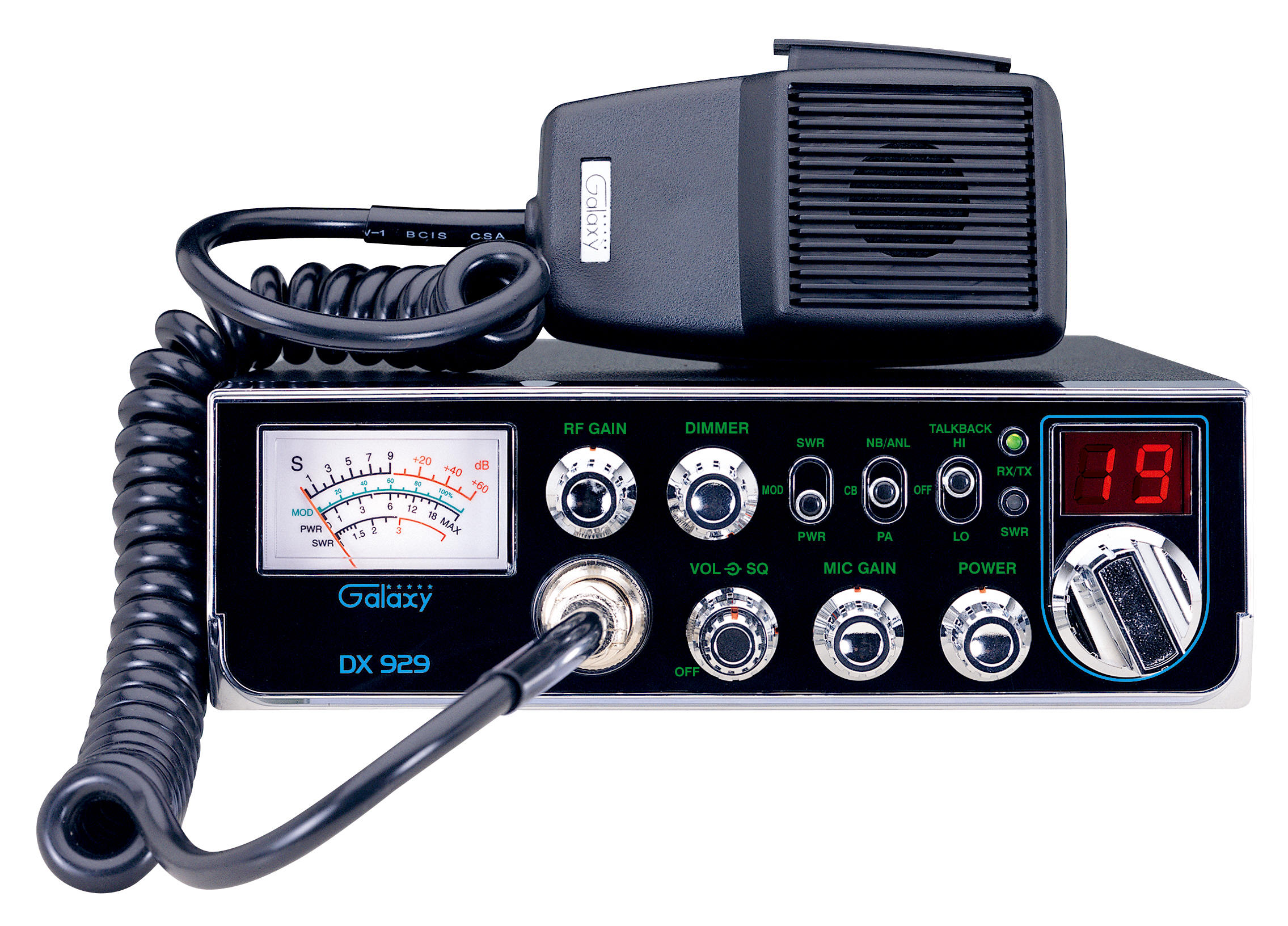

DX 929

Download Manual



Features

  • Starlite Faceplate
  • New Smaller Chassis
    7.25"W x 2.25H
  • Front panel mic Jack
  • Large, easy-to-read meter with 4 scales:
    1. "S" Meter indicates up to 60 dB over S9
    2. Modulation Percentage Scale
    3. Power Scale
    4. SWR Scale
  • Automatic SWR Circuit (no complicated calibration procedure)
  • "Talkback" Circuit with Volume Control
  • Variable Power Output Control
  • Two Year Warranty as explained below:

Additional Features:

  • Pre-wired for FC 347 Frequency Counter
  • Noise Blanker and Automatic Noise Limiter
  • Green/Red LED Indicator for RX/TX
  • LED Channel Indicator
  • Dimmer Control
  • Receive Gain Control
  • Mic Gain Control



Warranty Information



VIDEOS

Tune-up Reports and Custom work done here at BellsCB:
This is a playlist and has multiple videos
 (notice the   button to change to the next video)
SOLD OUT



... Galaxy DX-929 NEW...

$136.50



Optional Accessories

 Tune-up. 30 W peak power (perform a tune-up to radio to increase power, audio and performance)  AM carrier 6 watts and 28-30 watts peak power. $29
SOLD OUT

 RFX-85 Final. (perform a tune-up to radio to increase power, audio and performance and replace the bipolar transistor final with a completely new final section consisting of even higher power MOSFETs)
AM carrier 15 watts and 75+ watts peak power.

SOLD OUT
 RFX-150 Final. (perform a tune-up to the radio.  Increase power, audio and performance and a completely new final section consisting of even higher power MOSFETs) AM carrier 35 watts and 125+ watts peak power. $185

RFX-150 FAN KIT Installed Install FOUR - 30 x 30 x 10mm Black Fans with a switch for on/off combined with the amp on/off switch. $69
 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and lower noise)
$26
 Frequency conversion (simple)
(Add switches in the back to cover extra channels) Tune-up included.
$79
 Install a Lescomm 120 Channel Frequency Kit L3S (This mod adds a 4 position switch to access 192 channels) Tune-up included. $119
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25

Palomar SL-41 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$49

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29

 Astatic D104-M6b Amplified microphone.
(wired for this radio with a four pin plug and a battery installed)
$39
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
 Install an Echo board. (BACK or SIDE)
(wired internal to the radio with dual controls on the side or back to control speed and echo effects TRB-X2/X3 Echo board)
$65

 Install a Roger Beep tone board.
(wired inside the radio with a switch for on/off)
$79

Sound Byte link

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link

 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65

  Install a Record/Playback Module 18 seconds (wired inside the radio with  a switch on the side to record 18 seconds and to play it back) $77
SOLD OUT
 The  FC-347 is a small frequency counter which indicates the frequency of the selected channel. This plugs directly into the freq counter jack in the back of the radio. $59
LED Color
FC-30 Frequency Counter large face and dual input type, a plug  for this radio and external input for other radio types that have no plug in the back. $69
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18
Colors

Install Nitro Knobs with dimmer control integration circuit built so it dims with the factory adjustment. 6 Knob set parts and labor.

$129

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications demo. Enter your Gmail so we can send a share to our Google drive for you to view. We upload twice monthly. $19

The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT
sound great  with a stock mic on it  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.

If you place an order from outside the continental USA, we will calculate your actual shipping and send you a PayPal payment request.  We do NOT export Antennas or Base station radios.
